购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QT40.361AC/DC DIN RAIL SUPPLY 36V 960W PULS, LP |
2,353 |
|
规格书 |
DIMENSION Q (960W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26.7A | 960W | 500 V | ITE (Commercial) | 95.3% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

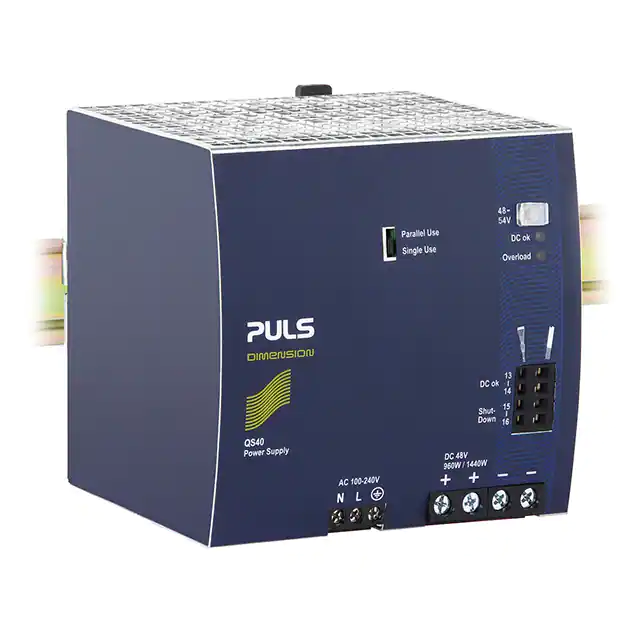

QS40.481AC/DC DIN RAIL SUPPLY 48V 960W PULS, LP |
3,131 |
|
规格书 |
DIMENSION Q (960W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 20A | 960W | 500 V | ITE (Commercial) | 95% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

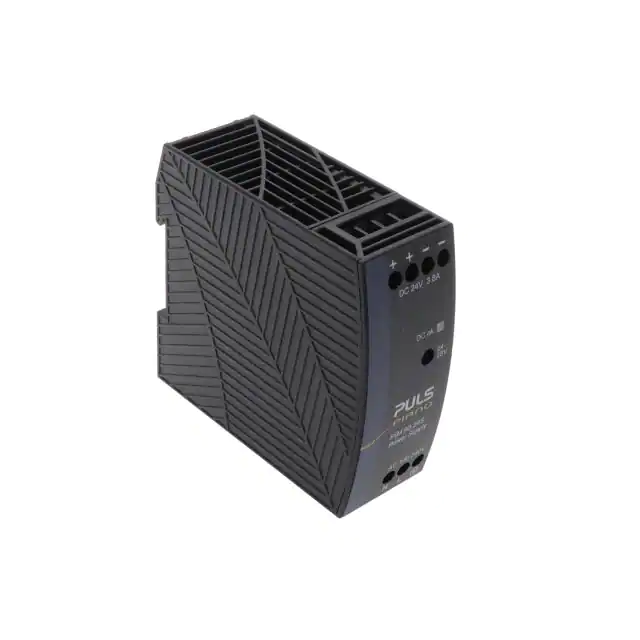

PIM90.245AC/DC DIN RAIL SUPPLY 24V 91W PULS, LP |
2,975 |
|
规格书 |
PIANO (90W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.8% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, EAC | 61010-1; 62368-1; UL 508 |
|
ML60.242AC/DC DIN RAIL SUPPLY 24V 60W PULS, LP |
3,444 |
|
规格书 |
MiniLine-2 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 500 V | ITE (Commercial) | 90.4% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|
ML60.122AC/DC DIN RAIL SUPPLY 12V 50W PULS, LP |
4,640 |
|
规格书 |
MiniLine-2 (54W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 50W | 500 V | ITE (Commercial) | 87.6% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ABS, CSA, DNV GL, EAC, IEC, NEC, UL | Class I Div 2; Class 2; 508; 60950-1; 61010-2-201 |
|

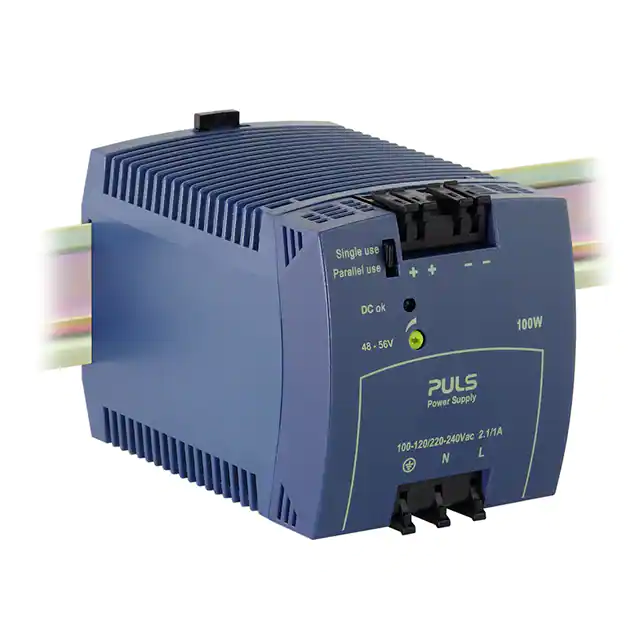

ML100.105AC/DC DIN RAIL SUPPLY 48V 100W PULS, LP |
3,356 |
|
规格书 |
MiniLine (100W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 100W | - | ITE (Commercial) | 91.5% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

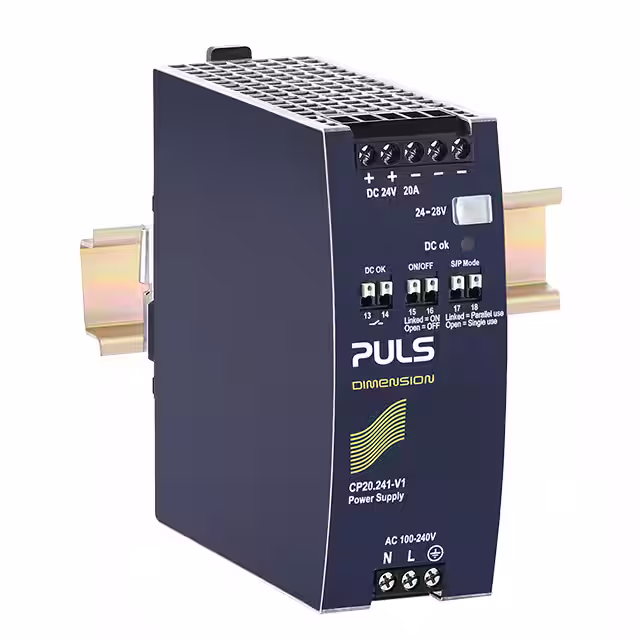

CP20.241-V1AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
1,377 |
|
规格书 |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
|
XT40.721AC/DC DIN RAIL SUPPLY 72V 960W PULS, LP |
2,494 |
|
规格书 |
DIMENSION X (960W) | Box | Active | AC | 1 | 300 ~ 460 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|

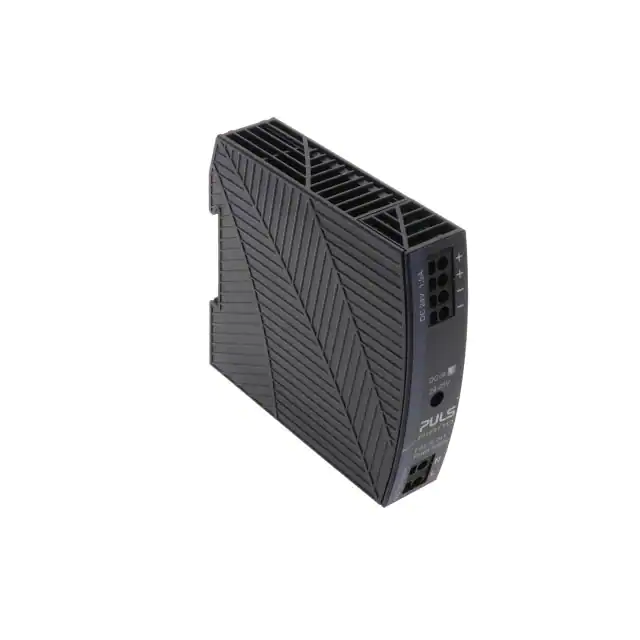

PIM36.241AC/DC DIN RAIL SUPPLY 24V 36W PULS, LP |
3,736 |
|
规格书 |
PIANO (36W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.5A | 36W | 500 V | Industrial, ITE (Commercial), Laboratory | 90.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus | 61010-1; 62368-1; UL 508 |
|

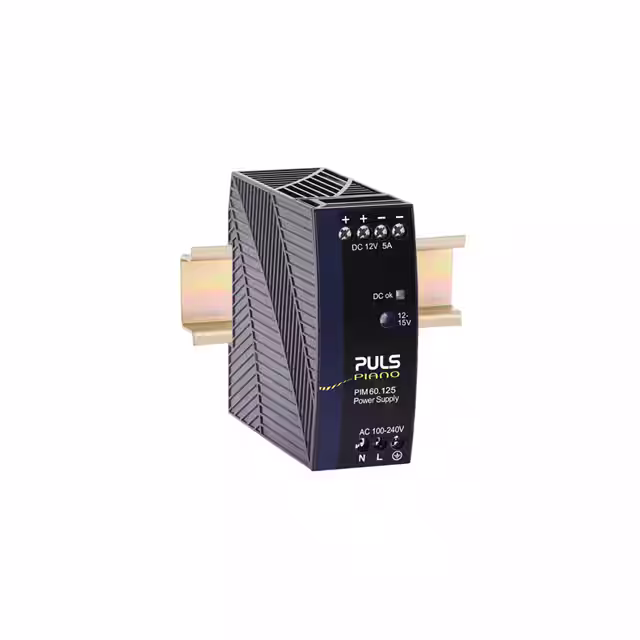

PIM60.125AC/DC DIN RAIL SUPPLY 12V 60W PULS, LP |
4,129 |
|
规格书 |
PIANO (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial), Laboratory | 90.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus | 61010-1; 62368-1 |
