图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入(最小值) | 直流电压 - 输入(最大值) | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出(最大值) | 功率(瓦特) | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

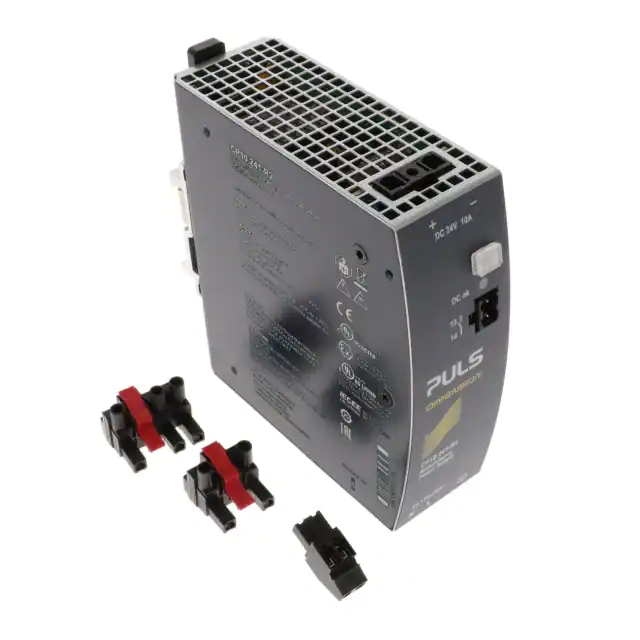

CP10.241-R2AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
4,949 |
|
![]() 规格书 |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.7% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CE, cULus, EAC | 60950-1; 61010-1; 62368-1; ATEX; 508 |
![]() |

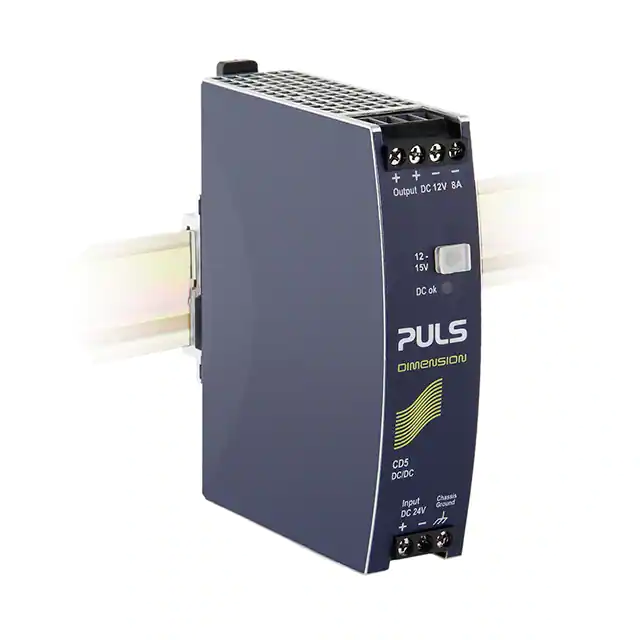

CD5.121DC/DC DIN RAIL SUPPLY 12V 96W PULS, LP |
4,104 |
|
![]() 规格书 |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 18V | 32.4V | 12V | - | - | - | - | - | 8A | 96W | - | ITE (Commercial) | 88.2% | -25°C ~ 70°C (With Derating) | - | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
![]() |

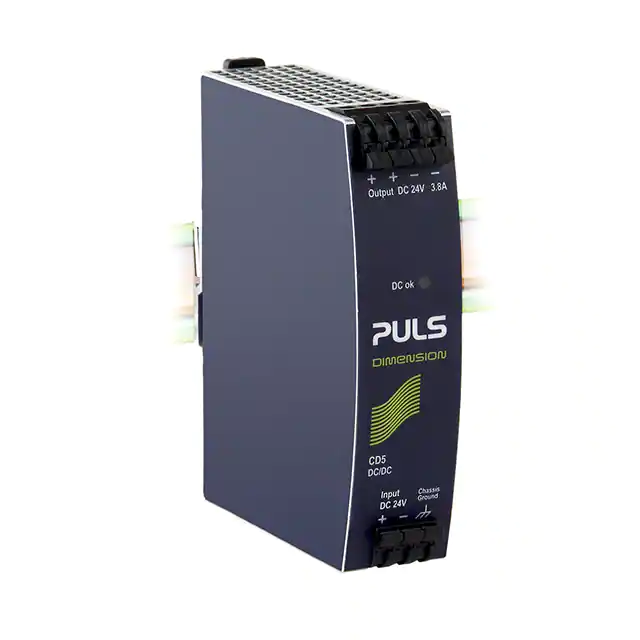

CD5.241-L1DC/DC DIN RAIL SUPPLY 24V 92W PULS, LP |
2,888 |
|
![]() 规格书 |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 14.4V | 32.4V | 24V | - | - | - | - | - | 3.8A | 92W | - | ITE (Commercial) | 90.5% | -25°C ~ 70°C (With Derating) | - | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, NEC, UL | Class I Div 2; Class 2; 508; 60950-1 |
![]() |

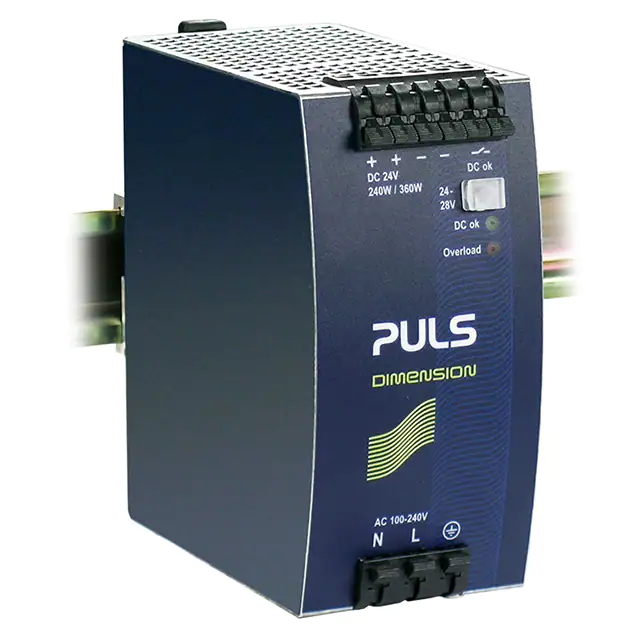

QS10.241AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
2,180 |
|
![]() 规格书 |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 93.5% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
![]() |

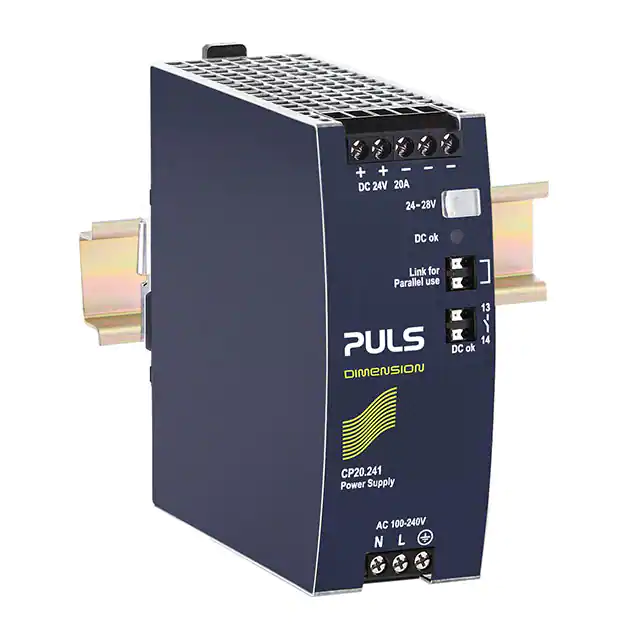

CP20.241AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
149 |
|
![]() 规格书 |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
![]() |
CD10.241DC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
2,457 |
|
![]() 规格书 |
DIMENSION CD (240W) | Box | Active | DC | 1 | - | 18V | 35V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Hazardous Locations, Industrial, ITE (Commercial), Laboratory | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | EAC, IEC, UL | 60950-1; 61010-2-201 |
![]() |

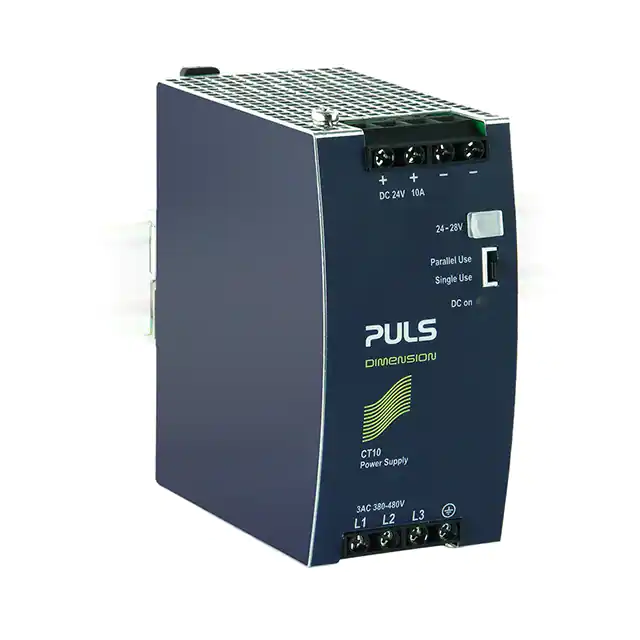

CT10.241-C1AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
2,198 |
|
![]() 规格书 |
DIMENSION C (240W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 500 V | ITE (Commercial) | 92.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, Conformal Coating, Load Sharing | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
![]() |
CP20.241-S1AC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
3,832 |
|
![]() 规格书 |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 95.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
![]() |

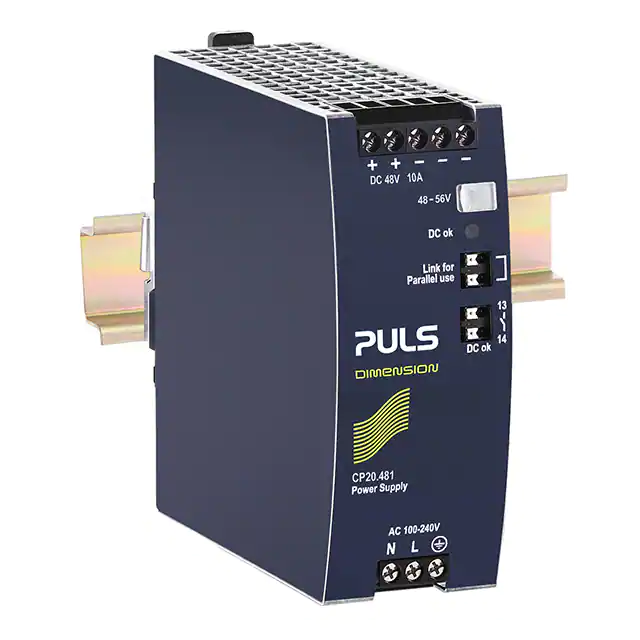

CP20.481AC/DC DIN RAIL SUPPLY 48V 480W PULS, LP |
4,261 |
|
![]() 规格书 |
DIMENSION CP (480W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 48V | - | - | - | - | - | 10A | 480W | 500 V | ITE (Commercial), Laboratory | 96.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201 |
![]() |
QS10.121AC/DC DIN RAIL SUPPLY 12V 180W PULS, LP |
4,303 |
|
![]() 规格书 |
DIMENSION Q (180W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 12V | - | - | - | - | - | 15A | 180W | 500 V | ITE (Commercial) | 91.8% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
