购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

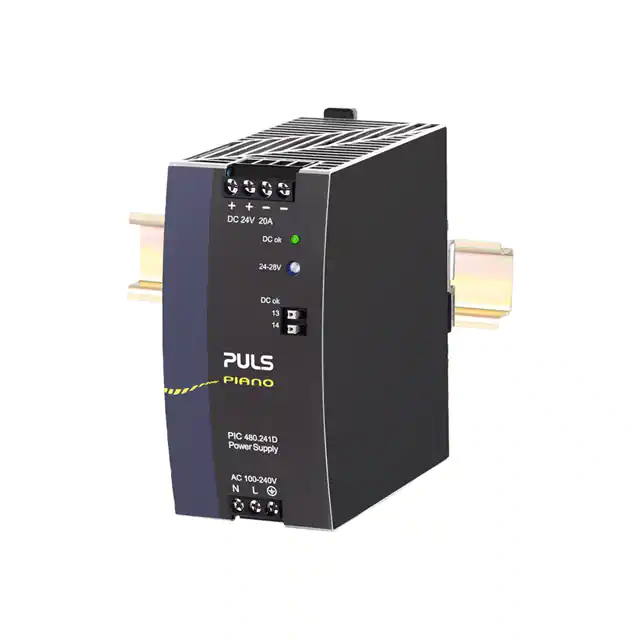

PIC480.241DAC/DC DIN RAIL SUPPLY 24V 480W PULS, LP |
2,083 |
|
规格书 |
PIANO (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial), Laboratory | 94.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | EAC, IEC, UL | 61010-2-201; 62368-1 |
|
CS10.241AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
108 |
|
规格书 |
DIMENSION C (240W) | Box | Active | AC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 91.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CT5.241AC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
4,656 |
|
规格书 |
DIMENSION C (120W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.4% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
QS5.241AC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
1,538 |
|
规格书 |
DIMENSION Q (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | Hazardous Locations, ITE (Commercial) | 92.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
CD5.241DC/DC DIN RAIL SUPPLY 24V 120W PULS, LP |
4,962 |
|
规格书 |
DIMENSION CD (92 ~ 120W) | Bulk | Active | DC | 1 | - | 18V | 32.4V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.3% | -25°C ~ 70°C (With Derating) | - | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1 |
|
CP10.481AC/DC DIN RAIL SUPPLY 48V 240W PULS, LP |
126 |
|
规格书 |
DIMENSION CP (260W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5.4A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP10.121AC/DC DIN RAIL SUPPLY 12V 192W PULS, LP |
1,281 |
|
规格书 |
DIMENSION CP (192W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 16A | 192W | 3 kV | Hazardous Locations, ITE (Commercial) | 94.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP10.361AC/DC DIN RAIL SUPPLY 36V 240W PULS, LP |
3,166 |
|
规格书 |
DIMENSION CP (240W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 36V | - | - | - | - | - | 6.7A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.1% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
CP10.241-M1AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
1,816 |
|
规格书 |
DIMENSION CP (240W) | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Industrial, ITE (Commercial), Medical | 95.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | EAC, IEC, UL | 60601 |
|
CT10.241AC/DC DIN RAIL SUPPLY 24V 240W PULS, LP |
4,983 |
|
规格书 |
DIMENSION C (240W) | Box | Active | AC | 1 | 323 ~ 576 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10.8A | 240W | 500 V | ITE (Commercial) | 92.9% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
