购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLF1005G2R2KT000FIXED IND 2.2UH 30MA 1.3 OHM SMD |
25,967 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 30 mA | - | Shielded | 1.3Ohm Max | 30 @ 10MHz | 80MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLG1005S10NJT000FIXED IND 10NH 500MA 350MOHM SMD |
25,334 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 10 nH | ±5% | 500 mA | - | Unshielded | 350mOhm Max | 8 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

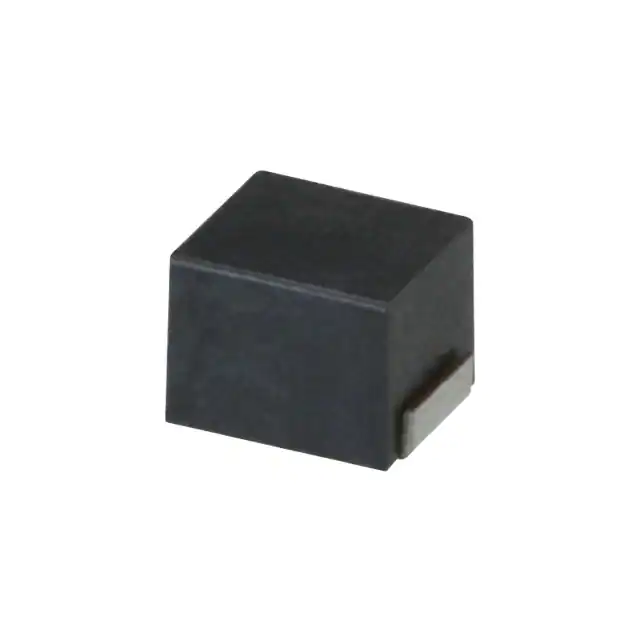

NLV25T-100J-PFFIXED IND 10UH 155MA 3.5 OHM SMD |
24,497 |
|
规格书 |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 155 mA | - | Unshielded | 3.5Ohm Max | 25 @ 2.52MHz | 33MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
MLG1005S43NJT000FIXED IND 43NH 250MA 1.1 OHM SMD |
21,681 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 43 nH | ±5% | 250 mA | - | Unshielded | 1.1Ohm Max | 8 @ 100MHz | 1.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S2N0BT000FIXED IND 2NH 900MA 150 MOHM SMD |
21,284 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2 nH | ±0.1nH | 900 mA | - | Unshielded | 150mOhm Max | 7 @ 100MHz | 7.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005SR10JT000FIXED IND 100NH 200MA 2 OHM SMD |
19,954 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 100 nH | ±5% | 200 mA | - | Unshielded | 2Ohm Max | 8 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S3N3ST000FIXED IND 3.3NH 800MA 200MOHM SM |
19,676 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.3 nH | ±0.3nH | 800 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S0N4BT000FIXED IND 0.4NH 1A 100 MOHM SMD |
19,663 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.4 nH | ±0.1nH | 1 A | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S0N6BT000FIXED IND 0.6NH 1A 100 MOHM SMD |
19,420 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.6 nH | ±0.1nH | 1 A | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S2N2ST000FIXED IND 2.2NH 900MA 150MOHM SM |
18,405 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.2 nH | ±0.3nH | 900 mA | - | Unshielded | 150mOhm Max | 7 @ 100MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S27NJT000FIXED IND 27NH 300MA 800MOHM SMD |
16,430 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 27 nH | ±5% | 300 mA | - | Unshielded | 800mOhm Max | 8 @ 100MHz | 1.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005SR15JTD25FIXED IND 150NH 150MA 3.5OHM SMD |
16,369 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 150 nH | ±5% | 150 mA | - | Unshielded | 3.5Ohm Max | 8 @ 100MHz | 550MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
LQG15WZ2N7S02DFIXED IND 2.7NH 900MA 0.07OHM SM |
15,826 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 2.7 nH | ±0.3nH | 900 mA | - | Unshielded | 70mOhm Max | - | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
MLG1005S3N9CT000FIXED IND 3.9NH 700MA 200MOHM SM |
15,752 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.9 nH | ±0.2nH | 700 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLG1005S12NJT000FIXED IND 12NH 400MA 400MOHM SMD |
14,780 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 12 nH | ±5% | 400 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQG15WZ2N9S02DFIXED IND 2.9NH 900MA 0.08OHM SM |
12,632 |
|
规格书 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.9 nH | ±0.3nH | 900 mA | - | Unshielded | 80mOhm Max | 23 @ 250MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLZ1608A2R2MT000FIXED IND 2.2UH 100MA 390MOHM SM |
11,854 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 2.2 µH | ±20% | 100 mA | 100mA | Shielded | 390mOhm Max | - | 80MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLZ1608E4R7MT000FIXED IND 4.7UH 60MA 500MOHM SMD |
11,795 |
|
- |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 4.7 µH | ±20% | 60 mA | - | Shielded | 500mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLZ1608M220WT000FIXED IND 22UH 150MA 2.4 OHM SMD |
11,640 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 150 mA | 55mA | Shielded | 2.4Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CS160808-1R0KFIXED IND 1UH 100MA 500 MOHM SMD |
10,676 |
|
规格书 |
CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 100 mA | - | Shielded | 500mOhm Max | 50 @ 10MHz | 70MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
