购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,00mm.jpg)
|
LBR2518T470KFIXED IND 47UH 120MA 840MOHM SMD |
15,671 |
|
规格书 |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 120 mA | - | Unshielded | 840mOhm | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
LQW15AN5N6C8ZDFIXED IND 5.6NH 1.77A 0.04OHM SM |
13,862 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.6 nH | ±0.2nH | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLF2012DR56KT000FIXED IND 560NH 150MA 550MOHM SM |
13,762 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 560 nH | ±10% | 150 mA | - | Shielded | 550mOhm Max | 25 @ 25MHz | 150MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
.jpg)
|
MLF1608D47NMTA00FIXED IND 47NH 200MA 200MOHM SMD |
11,460 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 47 nH | ±20% | 200 mA | - | Shielded | 200mOhm Max | 10 @ 50MHz | 600MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
 MHQ Series.jpg)
|
MHQ1005P2N0BT000FIXED IND 2NH 1A 50 MOHM SMD |
11,320 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2 nH | ±0.1nH | 1 A | - | Unshielded | 50mOhm Max | 23 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLZ2012DR10DTD25FIXED IND 100NH 1.15A 70MOHM SMD |
11,162 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 nH | ±20% | 1.15 A | 1A | Shielded | 70mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MLZ1608N220LT000FIXED IND 22UH 300MA 1.65OHM SMD |
9,623 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 190 mA | 50mA | Shielded | 1.65Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
AIML-0805-150K-TFIXED IND 15UH 5MA 0.8OHM SMD |
9,145 |
|
规格书 |
AIML-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 15 µH | ±10% | 5 mA | - | Shielded | 800mOhm | 30 @ 1MHz | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LQP03HQ18NJ02DFIXED IND 18NH 250MA 800MOHM SMD |
8,146 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 18 nH | ±5% | 250 mA | - | Unshielded | 800mOhm Max | 20 @ 500MHz | 3.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQW15AN24NJ8ZDFIXED IND 24NH 770MA 0.212OHM SM |
6,790 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 24 nH | ±5% | 770 mA | - | Unshielded | 212mOhm Max | 31 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN1N7C80DFIXED IND 1.7NH 1.15A 0.065OHM |
6,445 |
|
规格书 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 1.7 nH | ±0.2nH | 1.15 A | - | Unshielded | 65mOhm Max | 20 @ 250MHz | 18GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MCL2012V1-100-RFIXED IND 10UH 100MA 650MOHM SMD |
6,151 |
|
规格书 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 100 mA | - | Unshielded | 650mOhm Max | - | 24MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
LQW18AS18NG0ZDFIXED IND 18NH 700MA 170MOHM SMD |
5,497 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 18 nH | ±2% | 700 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 3.1GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MLZ1608M6R8WT000FIXED IND 6.8UH 300MA 740MOHM SM |
4,277 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 300 mA | 100mA | Shielded | 740mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608DR27KTA00FIXED IND 270NH 150MA 600MOHM SM |
4,029 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 270 nH | ±10% | 150 mA | - | Shielded | 600mOhm Max | 15 @ 25MHz | 260MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MHQ1005P6N8JT000FIXED IND 6.8NH 700MA 140MOHM SM |
3,920 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 140mOhm Max | 23 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLZ2012DR22DTD25FIXED IND 220NH 900MA 130MOHM SM |
2,554 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±20% | 900 mA | 800mA | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|

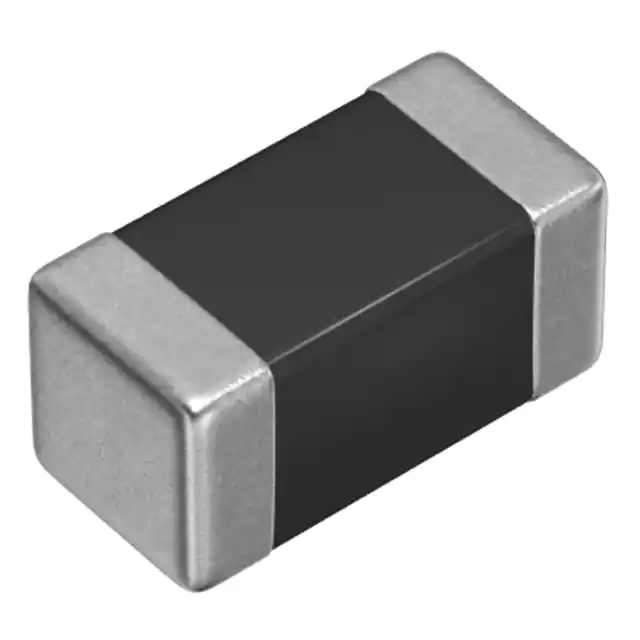

MLP1608V2R2BT0S1FIXED IND 2.2UH 600MA 468MOHM SM |
2,212 |
|
规格书 |
MLP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | - | Shielded | 468mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW18ANR47J00DFIXED IND 470NH 75MA 7OHM SMD |
204,545 |
|
规格书 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 470 nH | ±5% | 75 mA | - | Unshielded | 7Ohm Max | 30 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MAMK2520T3R3MFIXED IND 3.3UH 1.7A 156MOHM SMD |
157,410 |
|
规格书 |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.7 A | 1.8A | Shielded | 156mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
