购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLF1005G2R2JTD25FIXED IND 2.2UH 30MA 1.3 OHM SMD |
21,554 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±5% | 30 mA | - | Shielded | 1.3Ohm Max | 30 @ 10MHz | 80MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LSQEA201212T100KFIXED IND 10UH 150MA 0.36OHM SMD |
20,335 |
|
规格书 |
LSQE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 150 mA | - | Unshielded | 360mOhm | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLZ1608DR47DT000FIXED IND 470NH 500MA 420MOHM SM |
19,245 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 500 mA | 400mA | Shielded | 420mOhm | - | 260MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLG1005S3N3BT000FIXED IND 3.3NH 800MA 200MOHM SM |
19,195 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.3 nH | ±0.1nH | 800 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MLZ2012N2R2LT000FIXED IND 2.2UH 800MA 120MOHM SM |
18,771 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 800 mA | 170mA | Shielded | 120mOhm | - | 120MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLZ2012A3R3WT000FIXED IND 3.3UH 450MA 340MOHM SM |
17,086 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 450 mA | 200mA | Shielded | 340mOhm | - | 90MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF1005GR47JTD25FIXED IND 470NH 50MA 420MOHM SMD |
16,582 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±5% | 50 mA | - | Shielded | 420mOhm Max | 30 @ 10MHz | 190MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LQP03HQ3N8B02DFIXED IND 3.8NH 500MA 170MOHM SM |
16,465 |
|
规格书 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 3.8 nH | ±0.1nH | 500 mA | - | Unshielded | 170mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
MLZ2012M220WT000FIXED IND 22UH 220MA 2 OHM SMD |
15,263 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 220 mA | 60mA | Shielded | 2Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

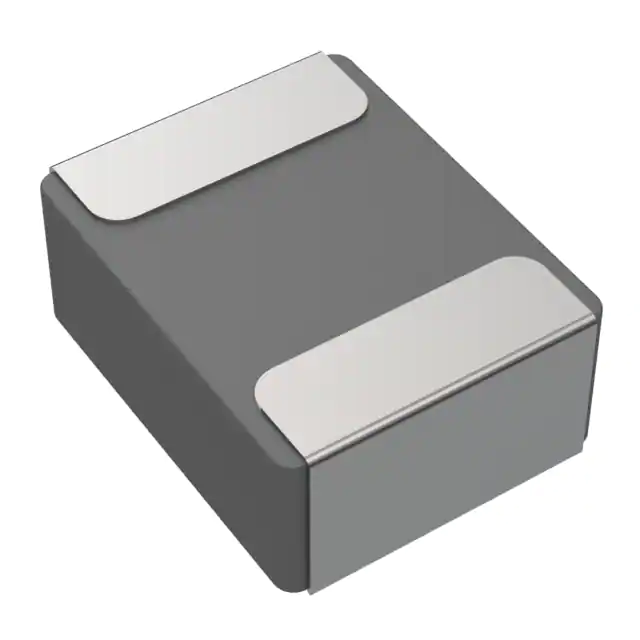

WLPH201610M1R0PSPOWER CHOKE MOLDED 1.0UH 3.9A |
14,487 |
|
规格书 |
PH | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3 A | 3.3A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
MLG1005S47NJT000FIXED IND 47NH 250MA 1.2 OHM SMD |
10,432 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 47 nH | ±5% | 250 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 1.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
MLF1608DR18KTA00FIXED IND 180NH 150MA 500MOHM SM |
10,247 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±10% | 150 mA | - | Shielded | 500mOhm Max | 15 @ 25MHz | 320MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLZ2012DR22DT000FIXED IND 220NH 900MA 130MOHM SM |
9,361 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±20% | 900 mA | 800mA | Shielded | 130mOhm | - | - | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
-2,70mm.jpg)
|
LBC3225T100MRFIXED IND 10UH 540MA 133MOHM SMD |
8,100 |
|
规格书 |
LB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 540 mA | - | Unshielded | 133mOhm | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
MCL1608V1-100-RFIXED IND 10UH 60MA 1.15 OHM SMD |
2,609 |
|
规格书 |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 60 mA | - | Unshielded | 1.15Ohm Max | - | 17MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

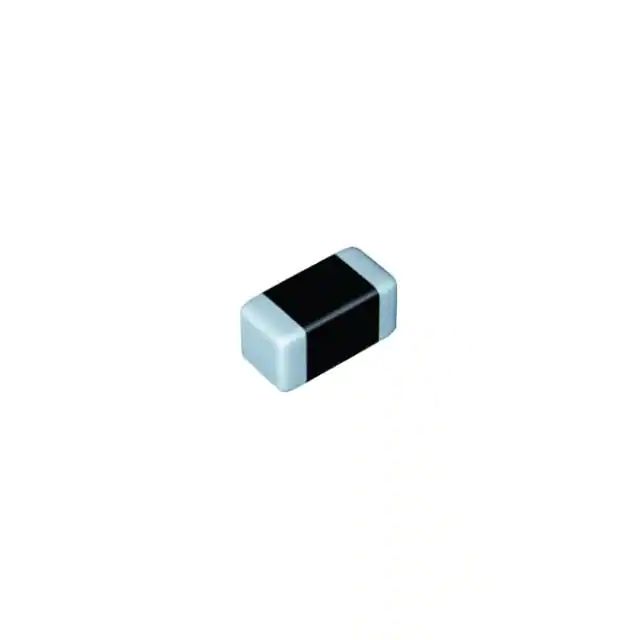

LSQEA201212T101KFIXED IND 100UH 50MA 4 OHM SMD |
1,562 |
|
规格书 |
LSQE | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±10% | 50 mA | - | Unshielded | 4Ohm | - | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ2012M3R3HT000FIXED IND 3.3UH 500MA 200MOHM SM |
1,360 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 500 mA | 350mA | Shielded | 200mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ2012N101LT000FIXED IND 100UH 140MA 3.5OHM SMD |
328,610 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 µH | ±20% | 140 mA | 30mA | Shielded | 3.5Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ2012P220WT000FIXED IND 22UH 220MA 1.25OHM SMD |
324,879 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 220 mA | 100mA | Shielded | 1.25Ohm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ2012N4R7LT000FIXED IND 4.7UH 600MA 180MOHM SM |
221,552 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 600 mA | 130mA | Shielded | 180mOhm | - | 70MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
