购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDEM20161T-3R3MSFIXED IND 3.3UH 1.08A 0.306OHM Delta Electronics/Cyntec |
782 |
|
规格书 |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 1.08 A | 1.35A | Shielded | 306mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDET25201T-1R5MSFIXED IND 1.5UH 1.7A 114MOHM SMD Delta Electronics/Cyntec |
998 |
|
规格书 |
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 1.7 A | 1.62A | Shielded | 114mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
HMLQ32251B-1R0MSFIXED IND 1UH SMD Delta Electronics/Cyntec |
394 |
|
规格书 |
HMLQ32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

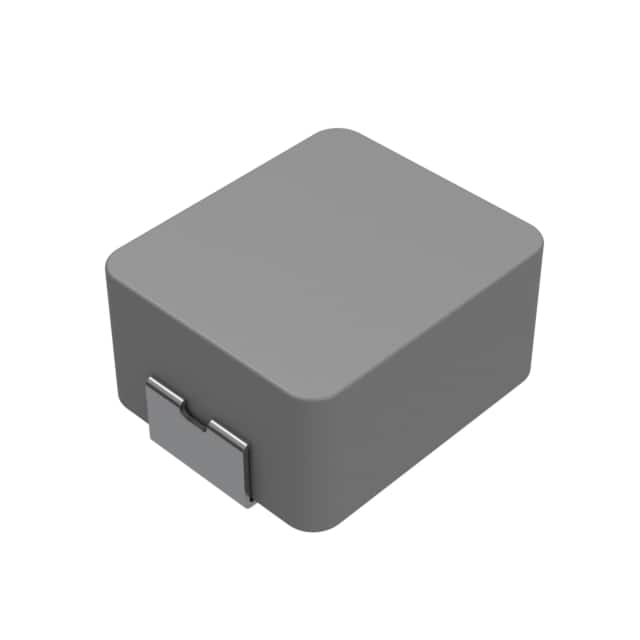

CMLE064T-R36MS1R407FIXED IND 360NH 30A 1.4MOHM SMD Delta Electronics/Cyntec |
508 |
|
规格书 |
CMLE064T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 360 nH | ±20% | 30 A | 23A | Shielded | 1.4mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.260" W (7.60mm x 6.60mm) | 0.157" (4.00mm) |
|
CMLS104T-R36MSFIXED IND 360NH 30A 1.25MOHM SMD Delta Electronics/Cyntec |
1,000 |
|
规格书 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 360 nH | ±20% | 30 A | 60A | Shielded | 1.25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CMLS104T-1R0MSFIXED IND 1UH 20A 3.2 MOHM SMD Delta Electronics/Cyntec |
504 |
|
规格书 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 20 A | 36A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
|
HTEH20120H-R11MSTRIND SMD 0.11UH HOT PRESSED CHOKE Delta Electronics/Cyntec |
1,000 |
|
规格书 |
HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 110 nH | ±20% | 5.5 A | 6.8A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
HTEH20120H-2R2MSRIND SMD 2.2UH HOT PRESSED CHOKE Delta Electronics/Cyntec |
942 |
|
规格书 |
HTEH20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 1.6 A | 1.9A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
|
HTEH25201T-1R0MSRIND SMD 1.0UH HOT PRESSED CHOKE Delta Electronics/Cyntec |
765 |
|
规格书 |
HTEH25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 5 A | 5A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
HTEH16080H-1R0MSRIND SMD 1.0UH HOT PRESSED CHOKE Delta Electronics/Cyntec |
556 |
|
规格书 |
HTEH16080H | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 1.8 A | 2.1A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
