购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

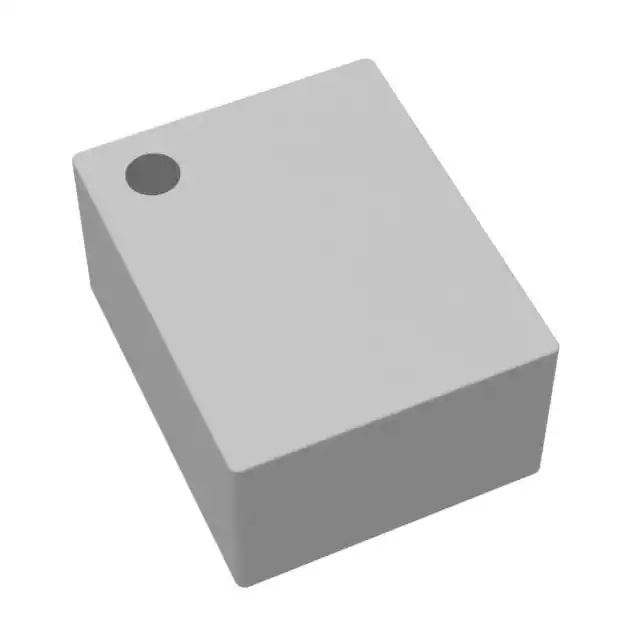

HTEK20161T-1R0MSRFIXED IND 1UH 4.5A 43 MOHM SMD Delta Electronics/Cyntec |
4,755 |
|
规格书 |
HTEK20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 4.5 A | 4.2A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
HTEP25201T-1R0MSRFIXED IND 1 UH 5.2A 25 MOHM SMD Delta Electronics/Cyntec |
3,679 |
|
规格书 |
HTEP25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 5.2 A | 5.5A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

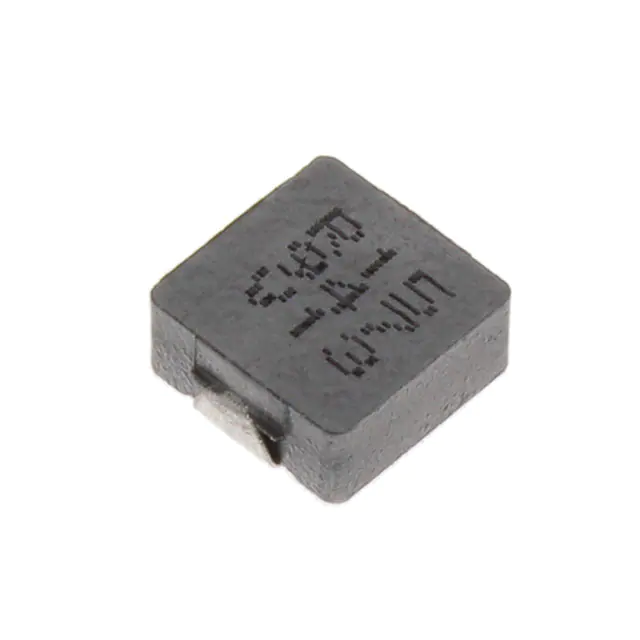

CMLE063T-R15MS0R905FIXED IND 150NH 38A 0.9MOHM SMD Delta Electronics/Cyntec |
69,797 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 38 A | 41A | Shielded | 0.9mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|

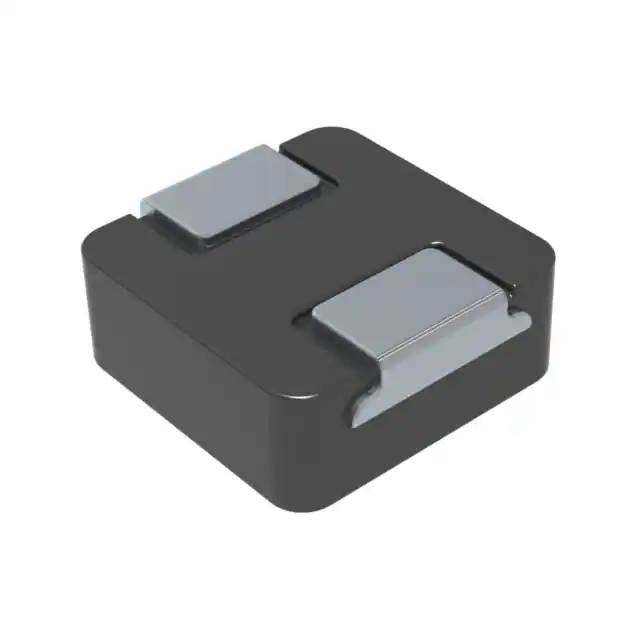

VCMT063T-100MN5TFIXED IND 10UH 4A 70.5 MOHM SMD Delta Electronics/Cyntec |
40,629 |
|
规格书 |
VCMT063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 4 A | 3.5A | Unshielded | 70.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|

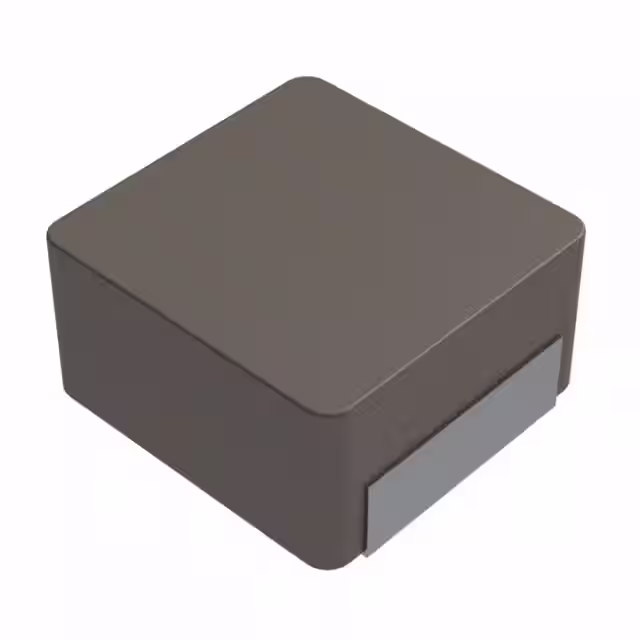

VCHA042A-1R0MS6FIXED IND 1UH 8.9A 10.5MOHM SMD Delta Electronics/Cyntec |
4,082 |
|
规格书 |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 8.9 A | 6.7A | Unshielded | 10.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
|
VCHA042A-2R2MS6FIXED IND 2.2UH 5.8A 23MOHM SMD Delta Electronics/Cyntec |
15,125 |
|
规格书 |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 5.8 A | 4.5A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
|
VCHA042A-4R7MS6FIXED IND 4.7UH 4A 53.8MOHM SMD Delta Electronics/Cyntec |
5,992 |
|
规格书 |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 4 A | 3.2A | Unshielded | 53.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
VFB4532-510FIXED INDUCTOR 51UH -30% +50% Delta Electronics/Cyntec |
3,779 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CMLE063T-R22MSFIXED IND 220NH 37A 1.3MOHM SMD Delta Electronics/Cyntec |
1,989 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 37 A | 32A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
VCHA075D-4R7MS6FIXED IND 4.7UH 7A 20.9MOHM SMD Delta Electronics/Cyntec |
2,367 |
|
规格书 |
VCHA075D | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 7 A | 11.2A | Unshielded | 20.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.283" W (7.70mm x 7.20mm) | 0.213" (5.40mm) |
