购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDET25200H-100MSFIXED IND 10UH 600MA 1.02OHM SMD Delta Electronics/Cyntec |
1,465 |
|
规格书 |
SDET25200H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 600 mA | 500mA | Shielded | 1.02Ohm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SDER031B-3R3MSFIXED IND 3.3UH 1.71A 161MOHM SM Delta Electronics/Cyntec |
2,900 |
|
规格书 |
SDER031B | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.71 A | 1.72A | Shielded | 161mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|

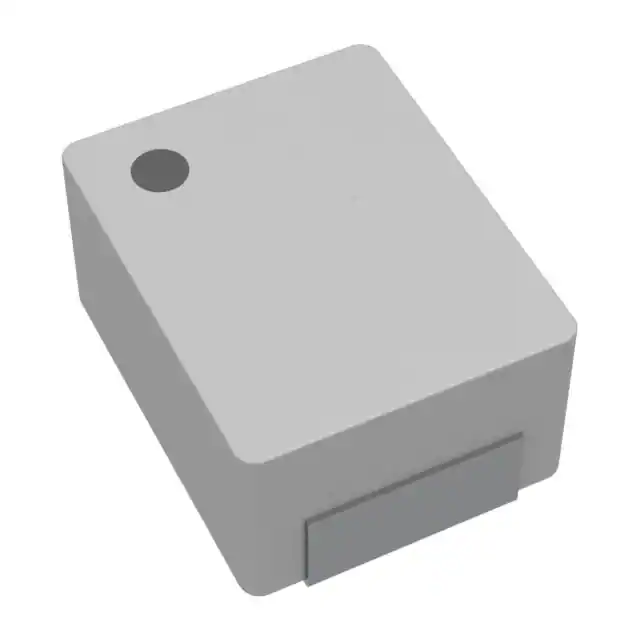

HMLQ20161T-1R5MDRFIXED IND 1.5UH 2.05A 109MOHM SM Delta Electronics/Cyntec |
5,980 |
|
规格书 |
HMLQ20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.05 A | 2.7A | Unshielded | 109mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
HMLQ20161T-2R2MDRFIXED IND 2.2UH 2.2A 150MOHM SMD Delta Electronics/Cyntec |
2,586 |
|
规格书 |
HMLQ20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | Metal | 2.2 µH | ±20% | 2.2 A | 2.45A | Shielded | 150mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDER041B-6R8MSFIXED IND 6.8UH 1.7A 156MOHM SMD Delta Electronics/Cyntec |
1,386 |
|
规格书 |
SDER041B | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.7 A | 1.08A | Shielded | 156mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
HMLE32251B-4R7MSFIXED IND 4.7UH SMD Delta Electronics/Cyntec |
1,958 |
|
- |
HMLE32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Metal | 4.7 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
VCMT136E-470MN5FIXED IND 47UH 4.2A 104MOHM SMD Delta Electronics/Cyntec |
393 |
|
规格书 |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 47 µH | ±20% | 4.2 A | 3.8A | Unshielded | 104mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
CMLS136E-1R5MSFIXED IND 1.5UH 28A 2.6MOHM SMD Delta Electronics/Cyntec |
470 |
|
规格书 |
CMLS136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 28 A | 48A | Shielded | 2.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SDEI054T-4R7MSFIXED IND 4.7UH 3.6A 34MOHM SMD Delta Electronics/Cyntec |
416 |
|
规格书 |
SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3.6 A | 4.5A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
|
SDES064T-680MSFIXED IND 68UH 1.2A 360MOHM SMD Delta Electronics/Cyntec |
473 |
|
规格书 |
SDES064T | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.2 A | 1.1A | Shielded | 360mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" (4.00mm) |
