| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSHB0430R-3R3MSMD MOLDING POWER CHOKE CODACA |
961 |
|
规格书 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 3.3 µH | ±20% | 7.5 A | 6.5A | Shielded | 30.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|

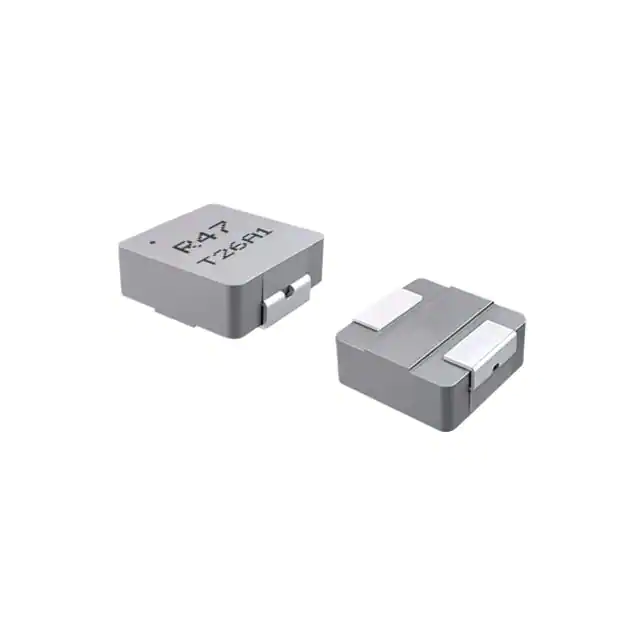

CSHB0421R-R22MSMD MOLDING POWER CHOKE CODACA |
958 |
|
规格书 |
CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 220 nH | ±20% | 15 A | 18A | Shielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0430R-5R6MSMD MOLDING POWER CHOKE CODACA |
952 |
|
规格书 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 5.6 µH | ±20% | 6 A | 5.5A | Shielded | 58.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-R56MSMD MOLDING POWER CHOKE CODACA |
935 |
|
规格书 |
CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 560 nH | ±20% | 11 A | 12A | Shielded | 9.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
CSHB0415-4R7MSMD MOLDING POWER CHOKE CODACA |
921 |
|
规格书 |
CSHB0415 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 4.7 µH | ±20% | 3.8 A | 3.8A | Shielded | 92mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
|
CSHB0421-100MSMD MOLDING POWER CHOKE CODACA |
920 |
|
规格书 |
CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 2.5 A | 2.5A | Shielded | 129mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0430R-150MSMD MOLDING POWER CHOKE CODACA |
783 |
|
规格书 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 15 µH | ±20% | 2.5 A | 2.5A | Shielded | 225mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421R-150MSMD MOLDING POWER CHOKE CODACA |
732 |
|
规格书 |
CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 15 µH | ±20% | 2.2 A | 2.2A | Shielded | 255mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0421R-R47MSMD MOLDING POWER CHOKE CODACA |
728 |
|
规格书 |
CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 470 nH | ±20% | 11.5 A | 13A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0415-2R2MSMD MOLDING POWER CHOKE CODACA |
717 |
|
规格书 |
CSHB0415 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 4.8 A | 4.8A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.059" (1.50mm) |
