购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSHB0430R-1R5MSMD MOLDING POWER CHOKE CODACA |
1,775 |
|
规格书 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 1.5 µH | ±20% | 9.2 A | 8.8A | Shielded | 16.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0430R-100MSMD MOLDING POWER CHOKE CODACA |
1,147 |
|
规格书 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 3.7 A | 3.7A | Shielded | 122mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|

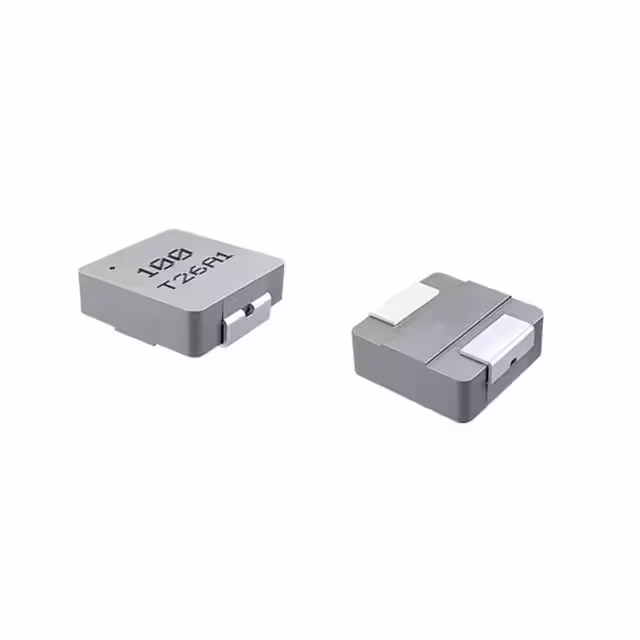

CSHB0412-100MSMD MOLDING POWER CHOKE CODACA |
1,000 |
|
规格书 |
CSHB0412 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 1.75 A | 1.75A | Shielded | 285mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
CSHB0421R-R68MSMD MOLDING POWER CHOKE CODACA |
995 |
|
规格书 |
CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 680 nH | ±20% | 10.5 A | 11A | Shielded | 10.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
CSHB0421-3R3MSMD MOLDING POWER CHOKE CODACA |
990 |
|
规格书 |
CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 3.3 µH | ±20% | 5 A | 5A | Shielded | 36.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|
|
CSHB0412-2R2MSMD MOLDING POWER CHOKE CODACA |
985 |
|
规格书 |
CSHB0412 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 4.2 A | 4.2A | Shielded | 63mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
|
CSHB0421R-R33MSMD MOLDING POWER CHOKE CODACA |
980 |
|
规格书 |
CSHB0421R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 330 nH | ±20% | 12 A | 14A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
|

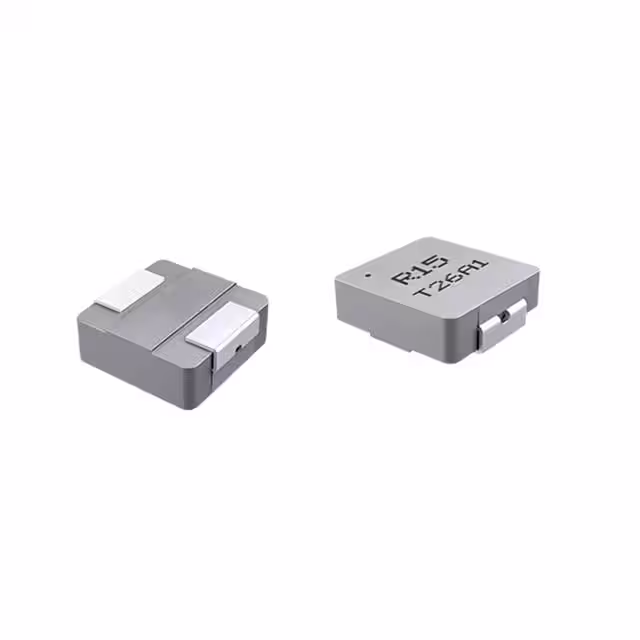

CSHB0410-100MSMD MOLDING POWER CHOKE CODACA |
974 |
|
规格书 |
CSHB0410 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 10 µH | ±20% | 1.65 A | 1.9A | Shielded | 312mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
|
CSHB0430R-1R0MSMD MOLDING POWER CHOKE CODACA |
973 |
|
规格书 |
CSHB0430R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 1 µH | ±20% | 11.5 A | 9.6A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.118" (3.00mm) |
|
|
CSHB0421-2R2MSMD MOLDING POWER CHOKE CODACA |
963 |
|
规格书 |
CSHB0421 | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 5.5 A | 5.5A | Shielded | 29.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.083" (2.10mm) |
