购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTPSI5020F-100MPOWER INDUCTOR SHIELDED Central Technologies |
1,871 |
|
规格书 |
CTPSI5020F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.4 A | 1.6A | Shielded | 178mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
CTCDRH4D18F-1R0N1.0UH SMD SHIELDED POWR INDUCTOR Central Technologies |
2,271 |
|
规格书 |
CTCDRH4D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | - | 1.72A | Shielded | 45mOhm Max | - | - | - | -30°C ~ 80°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
|
CTCDRH4D18F-8R2N8.2UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,708 |
|
规格书 |
CTCDRH4D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±30% | - | 680mA | Shielded | 245mOhm Max | - | - | - | -30°C ~ 80°C | 7.96 MHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|

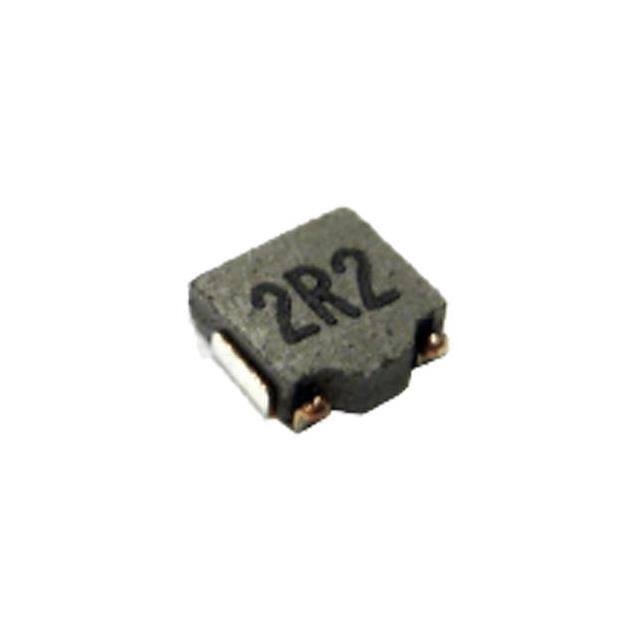

CTSPMA3012F-2R2MPOWR INDUCTOR SMD SHIELDED 2.2UH Central Technologies |
4,070 |
|
规格书 |
CTSPMA3012F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2.7 A | 3.1A | Shielded | 74mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.134" W (3.40mm x 3.40mm) | 0.047" (1.20mm) |
|
CTAC0603F-56NKSMD AIR CORE INDUCTOR Central Technologies |
1,876 |
|
- |
CTAC0603F | Nonstandard | Bulk | Active | Wirewound | Air | 56 nH | ±10% | 320 mA | - | Unshielded | 38.4mOhm Max | 70 @ 300MHz | 1.3GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | - | 0.079" L x 0.071" W (2.00mm x 1.80mm) | 0.079" (2.00mm) |
|
CTXFL3010F-1R0M1UH SMD SHLDED POWER INDUCTOR Central Technologies |
4,173 |
|
规格书 |
CTXFL3010F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.4 A | 4.5A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
CTXFL3010F-R60M0.60UH MDSHIELD POWER INDUCTOR Central Technologies |
2,238 |
|
规格书 |
CTXFL3010F | Nonstandard | Tape & Reel (TR) | Active | - | - | 600 nH | ±20% | 4.3 A | 5.2A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
CTSLF0745TF-681M680UH SMD SHLDED POWER INDUCTOR Central Technologies |
1,842 |
|
规格书 |
CTSLF0745TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 µH | ±20% | 270 mA | 200mA | Shielded | 2.08Ohm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
CTSPMA4015F-4R7MPOWR INDUCTOR SMD SHIELDED 4.7UH Central Technologies |
1,670 |
|
规格书 |
CTSPMA4015F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.5 A | 3.5A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.059" (1.50mm) |
|

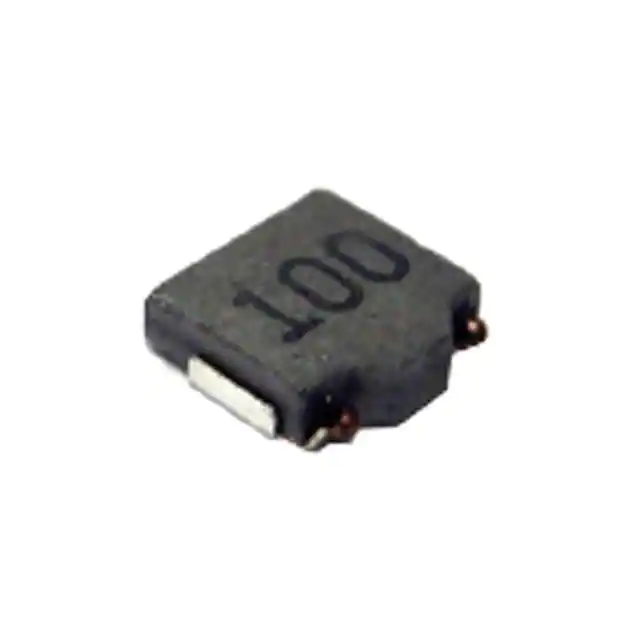

CTSPMA4012F-100MPOWER INDUCTOR SMD SHIELDED 10UH Central Technologies |
4,635 |
|
规格书 |
CTSPMA4012F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.5 A | 1.6A | Shielded | 250mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.047" (1.20mm) |
