购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTSPMA5020F-R47MPOWR INDUCTOR SMD SHIELDED .47UH Central Technologies |
3,918 |
|
规格书 |
CTSPMA5020F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 11.2 A | 18A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.079" (2.00mm) |
|
CTHSC1008F-R22K0.22UH SMD POWER INDUCTOR Central Technologies |
2,327 |
|
规格书 |
CTHSC1008F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±10% | 56 A | 50A | Shielded | 0.29Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.295" (7.50mm) |
|
|
CTHSC1008F-R30K0.30UH SMD POWER INDUCTOR Central Technologies |
1,121 |
|
规格书 |
CTHSC1008F | Nonstandard | Tape & Reel (TR) | Active | - | - | 300 nH | ±10% | 56 A | 35A | Shielded | 0.29Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.295" (7.50mm) |
|

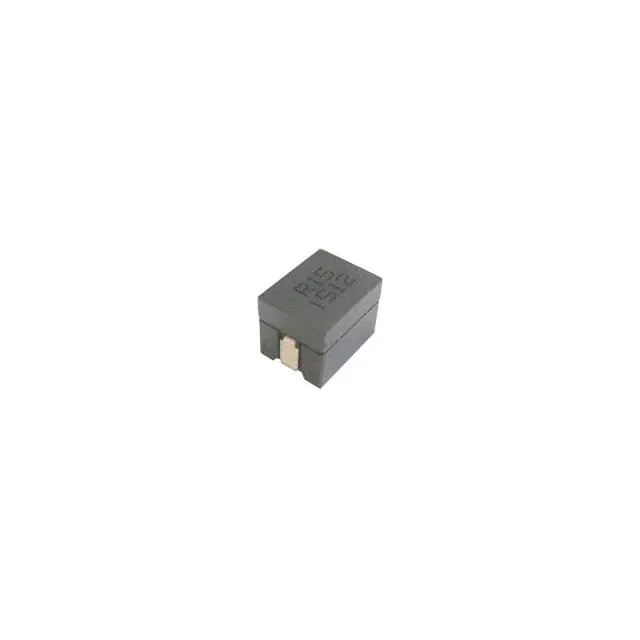

CTHSC1107F-R33L0.33UH SMD POWER INDUCTOR Central Technologies |
1,628 |
|
规格书 |
CTHSC1107F | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 nH | ±15% | 37 A | 28A | Shielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.295" W (11.00mm x 7.50mm) | 0.276" (7.00mm) |
|
|
CTHSC1107F-R22L0.22UH SMD POWER INDUCTOR Central Technologies |
3,774 |
|
规格书 |
CTHSC1107F | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 37 A | 40A | Shielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.295" W (11.00mm x 7.50mm) | 0.276" (7.00mm) |
|
|
CTHSC1107F-R12L0.12UH SMD POWER INDUCTOR Central Technologies |
4,990 |
|
规格书 |
CTHSC1107F | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 37 A | 60A | Shielded | 0.37mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.295" W (11.00mm x 7.50mm) | 0.276" (7.00mm) |
|
|
CTHSC1008F-R15K0.15UH SMD POWER INDUCTOR Central Technologies |
4,627 |
|
规格书 |
CTHSC1008F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 56 A | 76A | Shielded | 0.29Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.295" (7.50mm) |
|

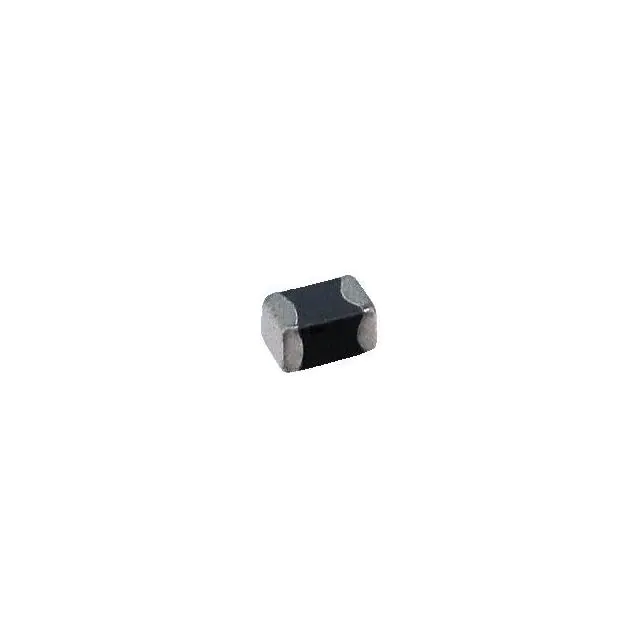

CTMPH080504F-R33M0.33UH SMD MOLDED SHLD INDUCTOR Central Technologies |
4,713 |
|
规格书 |
CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 3.7 A | 4.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMPH080504F-2R2M2.2UH SMD MOLDED SHLD INDUCTOR Central Technologies |
4,437 |
|
规格书 |
CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.4 A | 1.6A | Shielded | 176mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMPH080504F-1R5M1.5UH SMD MOLDED SHLD INDUCTOR Central Technologies |
3,046 |
|
规格书 |
CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 1.8 A | 1.9A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
