购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

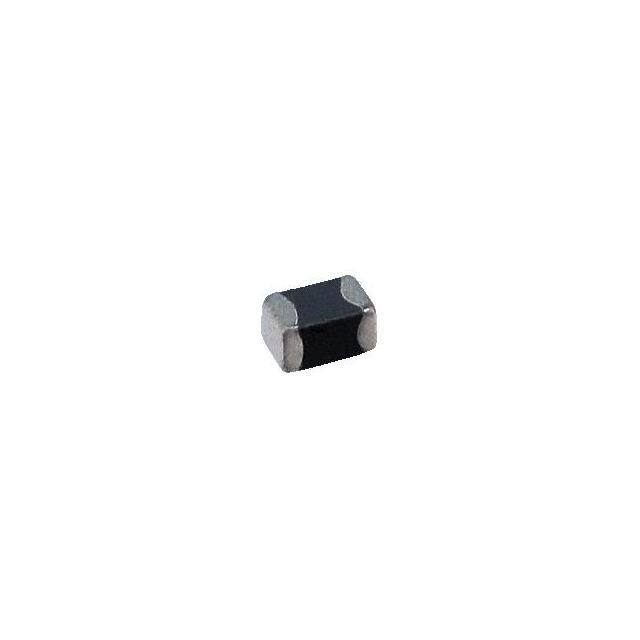

CTMPH080604F-1R5M1.5UH SMD MOLDED SHLD INDUCTOR Central Technologies |
4,584 |
|
规格书 |
CTMPH080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.3 A | 2.5A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CTGS104F-101K100UH SMD UNSHLD POWER INDUCTOR Central Technologies |
2,551 |
|
规格书 |
CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | - | 740mA | Unshielded | 340mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
|
CTGS104F-471K470UH SMD UNSHLD POWER INDUCTOR Central Technologies |
4,225 |
|
规格书 |
CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | - | 350mA | Unshielded | 1.53Ohm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
|
CTGS104F-470M47UH SMD UNSHLD POWER INDUCTOR Central Technologies |
4,471 |
|
规格书 |
CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | - | 1.1A | Unshielded | 170mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
|
CTGS104F-391K390UH SMD UNSHLD POWER INDUCTOR Central Technologies |
4,679 |
|
规格书 |
CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±10% | - | 380mA | Unshielded | 1.24Ohm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
CTCDRH5D28RF-8R0N8.0UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,824 |
|
规格书 |
CTCDRH5D28RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 8 µH | ±30% | - | 1.5A | Shielded | 49.9mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28RF-220N22UH SMD SHIELDED POWR INDUCTOR Central Technologies |
4,951 |
|
规格书 |
CTCDRH5D28RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | - | 950mA | Shielded | 119mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28RF-101N100UH SMD SHIELDED POWR INDUCTOR Central Technologies |
4,984 |
|
规格书 |
CTCDRH5D28RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | - | 400mA | Shielded | 520mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
|
CTCDRH5D28RF-270N27UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,882 |
|
规格书 |
CTCDRH5D28RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±30% | - | 850mA | Shielded | 146mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
CTSLF0745TF-150M15UH SMD SHLDED POWER INDUCTOR Central Technologies |
1,811 |
|
规格书 |
CTSLF0745TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.53 A | 1.1A | Shielded | 52mOhm | - | - | - | -20°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
