购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM125S-680MFIXED IND 68UH 1.26A 170MOHM SMD Bourns Inc. |
1,081 |
|
规格书 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.26 A | 2.08A | Shielded | 170mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-681MFIXED IND 680UH 400MA 1.78OHM SM Bourns Inc. |
3,475 |
|
规格书 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | 740mA | Shielded | 1.78Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-821MFIXED IND 820UH 360MA 2 OHM SMD Bourns Inc. |
1,133 |
|
规格书 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 360 mA | 260mA | Shielded | 2Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|

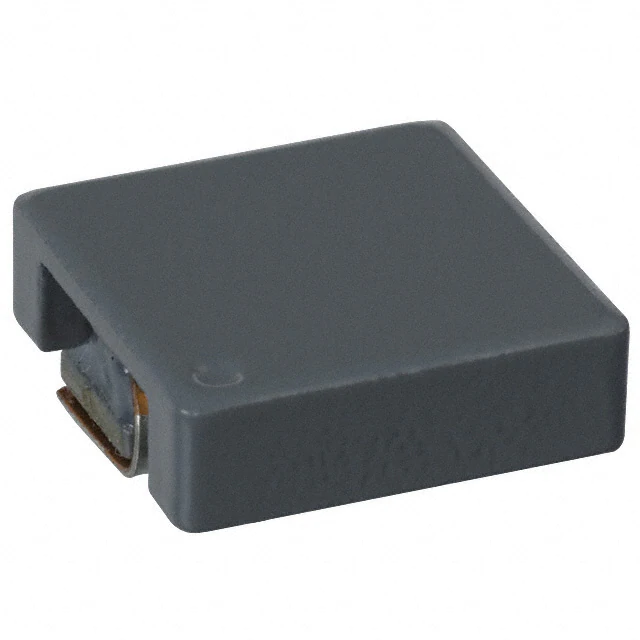

PM12639S-R67MFIXED IND 670NH 23A 1.4 MOHM SMD Bourns Inc. |
2,237 |
|
规格书 |
PM12639S | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 670 nH | ±20% | 23 A | - | Shielded | 1.4mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
PM1608-102MFIXED IND 1MH 70MA 13.8 OHM SMD Bourns Inc. |
2,790 |
|
规格书 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 70 mA | 100mA | Unshielded | 13.8Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-150MFIXED IND 15UH 1.2A 230 MOHM SMD Bourns Inc. |
2,238 |
|
规格书 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.2 A | 900mA | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-151MFIXED IND 150UH 250MA 2 OHM SMD Bourns Inc. |
1,820 |
|
规格书 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 250 mA | 270mA | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-1R0MFIXED IND 1UH 2.9A 50 MOHM SMD Bourns Inc. |
1,386 |
|
规格书 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.9 A | 2.9A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-1R5MFIXED IND 1.5UH 2.8A 50 MOHM SMD Bourns Inc. |
4,471 |
|
规格书 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 2.8 A | 2.6A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
PM1608-2R2MFIXED IND 2.2UH 2.4A 70 MOHM SMD Bourns Inc. |
1,198 |
|
规格书 |
PM1608 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.4 A | 2.3A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
