购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9230-70FIXED IND 120UH 97MA 13 OHM TH Bourns Inc. |
3,478 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 120 µH | ±10% | 97 mA | - | Unshielded | 13Ohm Max | 30 @ 790kHz | 12MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-72FIXED IND 150UH 85MA 15 OHM TH Bourns Inc. |
3,200 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 150 µH | ±10% | 85 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-74FIXED IND 180UH 79MA 17 OHM TH Bourns Inc. |
4,566 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 180 µH | ±10% | 79 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-78FIXED IND 270UH 65MA 25 OHM TH Bourns Inc. |
4,229 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 270 µH | ±10% | 65 mA | - | Unshielded | 25Ohm Max | 30 @ 790kHz | 8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-86FIXED IND 560UH 48MA 46 OHM TH Bourns Inc. |
2,448 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 560 µH | ±10% | 48 mA | - | Unshielded | 46Ohm Max | 30 @ 790kHz | 5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-90FIXED IND 820UH 40MA 65 OHM TH Bourns Inc. |
2,554 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Ferrite | 820 µH | ±10% | 40 mA | - | Unshielded | 65Ohm Max | 30 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-96FIXED IND 120NH 1.1A 80 MOHM TH Bourns Inc. |
4,427 |
|
规格书 |
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | 120 nH | ±10% | 1.1 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 650MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

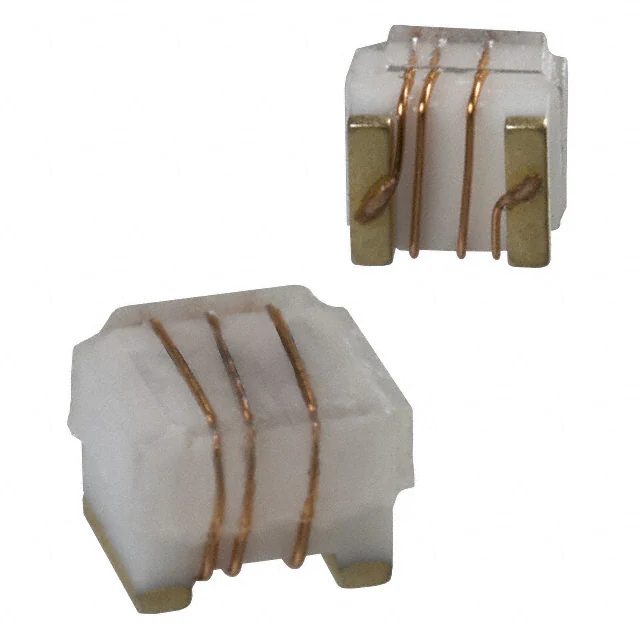

PM1008-8R2KFIXED IND 8.2UH 150MA 9.5OHM SMD Bourns Inc. |
1,473 |
|
规格书 |
PM1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.2 µH | ±10% | 150 mA | - | Unshielded | 9.5Ohm | 20 @ 25MHz | 35MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
PM125S-120MFIXED IND 12UH 2.5A 50 MOHM SMD Bourns Inc. |
1,085 |
|
规格书 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.5 A | 5.31A | Shielded | 50mOhm Max | - | 21MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
|
|
PM125S-121MFIXED IND 120UH 950MA 280MOHM SM Bourns Inc. |
4,005 |
|
规格书 |
PM125S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 950 mA | 950mA | Shielded | 280mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.213" (5.40mm) |
