购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM1210-181JFIXED IND 180UH 60MA 17 OHM SMD Bourns Inc. |
1,014 |
|
规格书 |
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 60 mA | - | Unshielded | 17Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

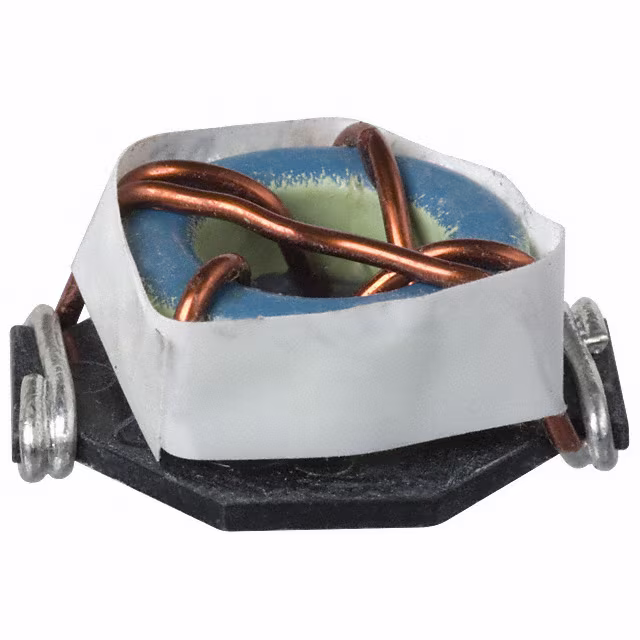

PM2110-5R6MFIXED IND 5.6UH 13.7A 5 MOHM SMD Bourns Inc. |
1,887 |
|
规格书 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 5.6 µH | ±20% | 13.7 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.570" (14.48mm) |
|
PM2110-390KFIXED IND 39UH 6.8A 20 MOHM SMD Bourns Inc. |
1,392 |
|
规格书 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 39 µH | ±10% | 6.8 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.620" (15.75mm) |
|
|
PM2110-331KFIXED IND 330UH 3.2A 90 MOHM SMD Bourns Inc. |
4,299 |
|
规格书 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 330 µH | ±10% | 3.2 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
|
PM2110-391KFIXED IND 390UH 3.1A 98 MOHM SMD Bourns Inc. |
4,321 |
|
规格书 |
PM2110 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 390 µH | ±10% | 3.1 A | - | Unshielded | 98mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.600" (15.24mm) |
|
PM2120-331KFIXED IND 330UH 3.6A 100MOHM SMD Bourns Inc. |
3,707 |
|
规格书 |
PM2120 | Nonstandard | Bulk | Obsolete | Toroidal | Iron | 330 µH | ±10% | 3.6 A | - | Unshielded | 100mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.780" (19.81mm) |
|
1110-3R3MFIXED IND 3.3UH 9A 5 MOHM TH Bourns Inc. |
4,573 |
|
规格书 |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 9 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-271KFIXED IND 270UH 1.6A 300 MOHM TH Bourns Inc. |
2,745 |
|
规格书 |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 1.6 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
|
1110-471KFIXED IND 470UH 800MA 636MOHM TH Bourns Inc. |
3,006 |
|
规格书 |
1110 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 800 mA | - | Unshielded | 636mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.660" Dia (16.76mm) | 0.840" (21.34mm) |
|
1120-1R2MFIXED IND 1.2UH 11.4A 3 MOHM TH Bourns Inc. |
1,796 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 11.4 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
