| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

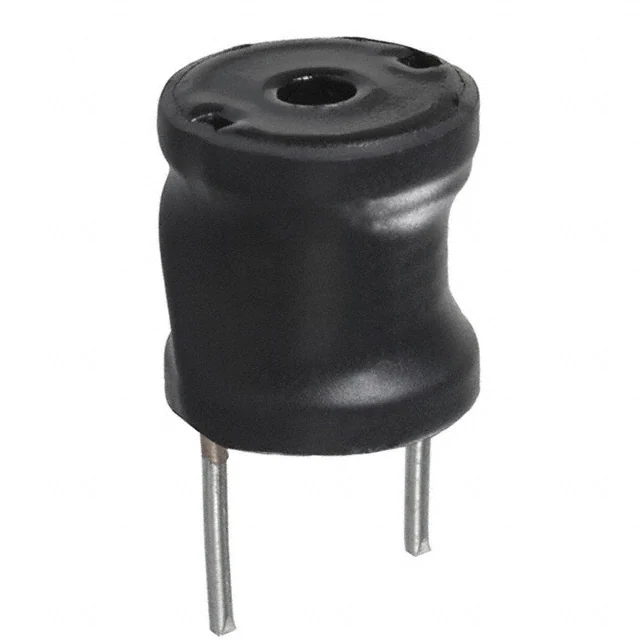

1120-681KFIXED IND 680UH 1.6A 430 MOHM TH Bourns Inc. |
3,966 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.6 A | - | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-821KFIXED IND 820UH 1.3A 590 MOHM TH Bourns Inc. |
1,085 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 1.3 A | - | Unshielded | 590mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-122KFIXED IND 1.2MH 800MA 1.14OHM TH Bourns Inc. |
4,529 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 800 mA | - | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

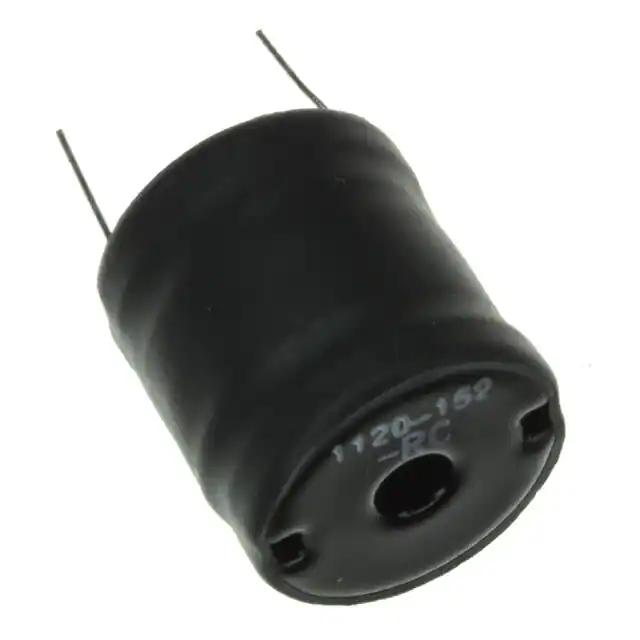

1120-152KFIXED IND 1.5MH 800MA 1.26OHM TH Bourns Inc. |
2,389 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 800 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-182KFIXED IND 1.8MH 800MA 1.39OHM TH Bourns Inc. |
1,357 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 800 mA | - | Unshielded | 1.39Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-222KFIXED IND 2.2MH 800MA 1.54OHM TH Bourns Inc. |
2,622 |
|
规格书 |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | - | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1130-1R0MFIXED IND 1UH 21A 3 MOHM TH Bourns Inc. |
4,037 |
|
规格书 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-3R3MFIXED IND 3.3UH 21A 3 MOHM TH Bourns Inc. |
3,321 |
|
规格书 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-4R7MFIXED IND 4.7UH 21A 3 MOHM TH Bourns Inc. |
3,496 |
|
规格书 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-5R6MFIXED IND 5.6UH 21A 3 MOHM TH Bourns Inc. |
2,514 |
|
规格书 |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
