购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSLU2520-5R6JP2FIXED IND 5.6UH 175MA 2.3 OHM Toko America Inc. |
1,353 |
|
规格书 |
FSLU2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | 5.6 µH | ±5% | 175 mA | - | Unshielded | 2.3Ohm Max | 30 @ 7.96MHz | 55MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
FSLU2520-22NKP2FIXED IND 22NH 550MA 210MOHM SMD Toko America Inc. |
14,196 |
|
规格书 |
FSLU2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 nH | ±10% | 550 mA | - | Unshielded | 210mOhm Max | 15 @ 100MHz | 1.55GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
Y655LY-01K=P3FIXED IND 6.8NH 1A SMD Toko America Inc. |
7,980 |
|
规格书 |
33CS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 6.8 nH | ±10% | 1 A | - | Unshielded | - | 70 @ 150MHz | 3GHz | - | - | 150 MHz | - | Surface Mount | - | 0.181" L x 0.150" W (4.60mm x 3.80mm) | 0.157" (4.00mm) |
|
656LZ-06K=P3FIXED IND 27.5NH 1A SMD Toko America Inc. |
7,488 |
|
规格书 |
36CS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | Air | 27.5 nH | ±10% | 1 A | - | Unshielded | - | 85 @ 150MHz | 2.2GHz | - | - | 150 MHz | - | Surface Mount | - | 0.260" L x 0.126" W (6.60mm x 3.20mm) | 0.157" (4.00mm) |
|
887FU-122M=P3INDUCTOR FIXED 1.2MH TYPE D32FU Toko America Inc. |
1,015 |
|
规格书 |
D32FU | Nonstandard | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
|

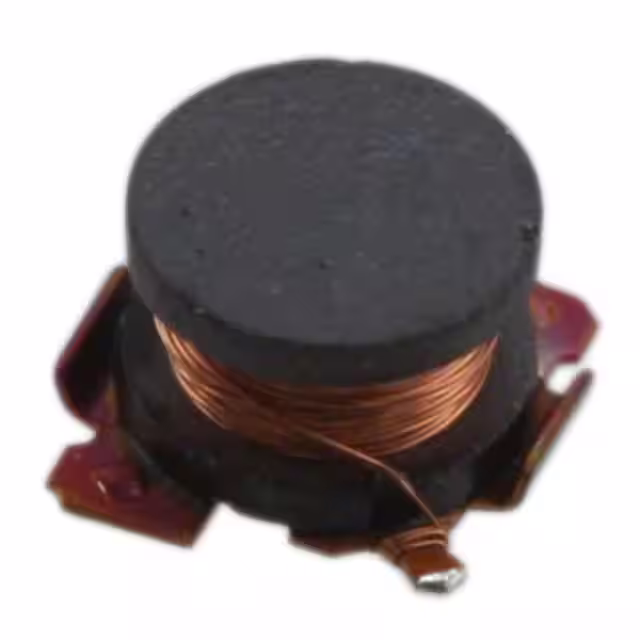

887FU-681M=P3FIXED IND 680UH 74MA 20 OHM SMD Toko America Inc. |
2,842 |
|
规格书 |
D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 74 mA | 74mA | Unshielded | 20Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
|

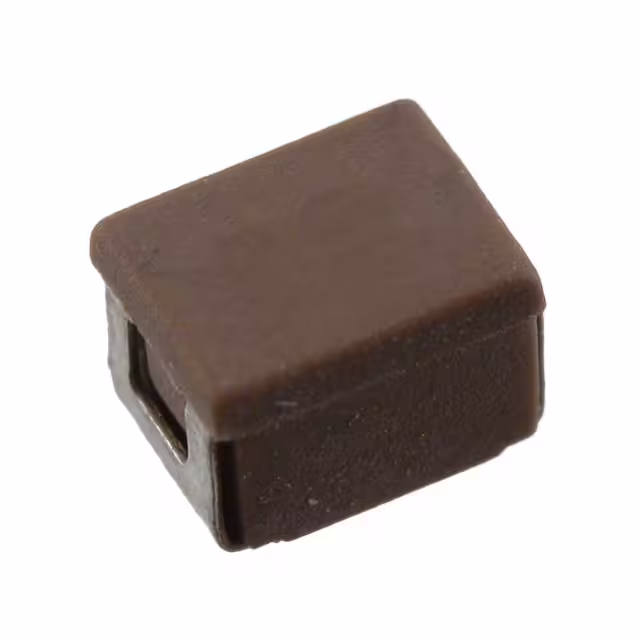

380NB-68NM=P2FIXED IND 68NH 320MA 290MOHM SMD Toko America Inc. |
15,035 |
|
- |
32CS | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 68 nH | ±20% | 320 mA | - | Unshielded | 290mOhm Max | 26 @ 100MHz | 550MHz | - | -25°C ~ 85°C | 100 MHz | - | Surface Mount | - | 0.134" L x 0.106" W (3.40mm x 2.70mm) | 0.094" (2.40mm) |
|

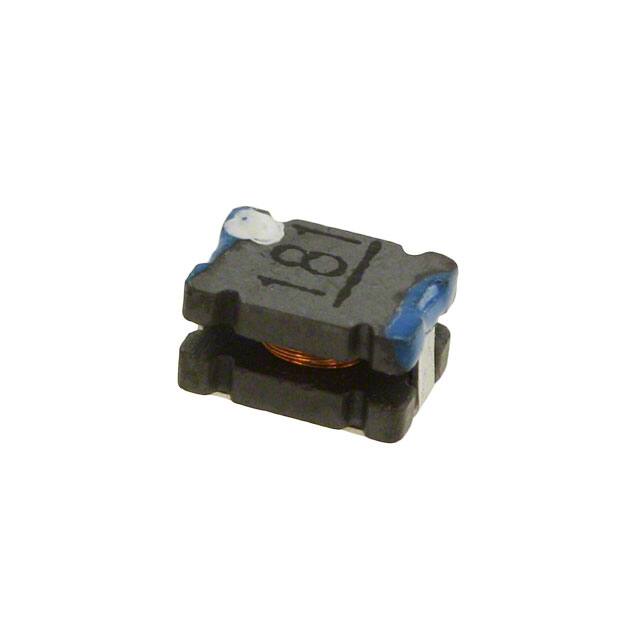

300HS-181J=P2FIXED IND 180UH 60MA 5.58OHM SMD Toko America Inc. |
3,515 |
|
规格书 |
43FS | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 60 mA | - | Unshielded | 5.58Ohm Max | 50 @ 796kHz | 5.3MHz | - | -10°C ~ 60°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.126" (3.20mm) |
|

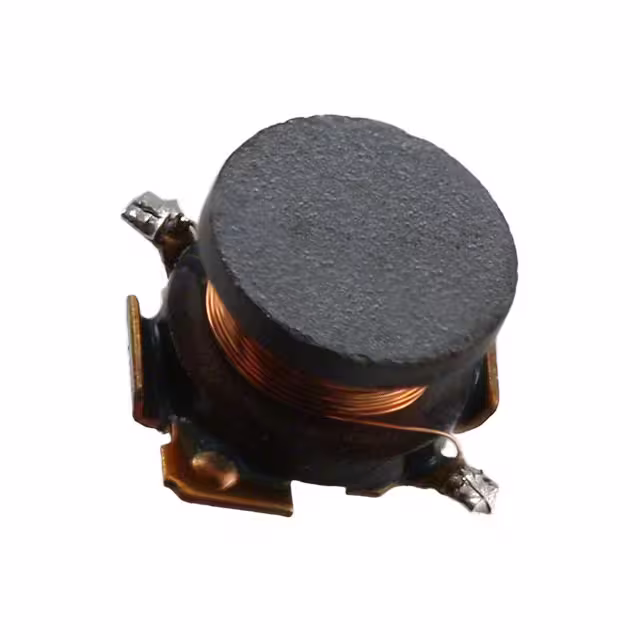

887FU-821M=P3FIXED IND 820UH 63MA 30 OHM SMD Toko America Inc. |
8,179 |
|
规格书 |
D32FU | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 820 µH | ±20% | 63 mA | 71mA | Unshielded | 30Ohm Max | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
|

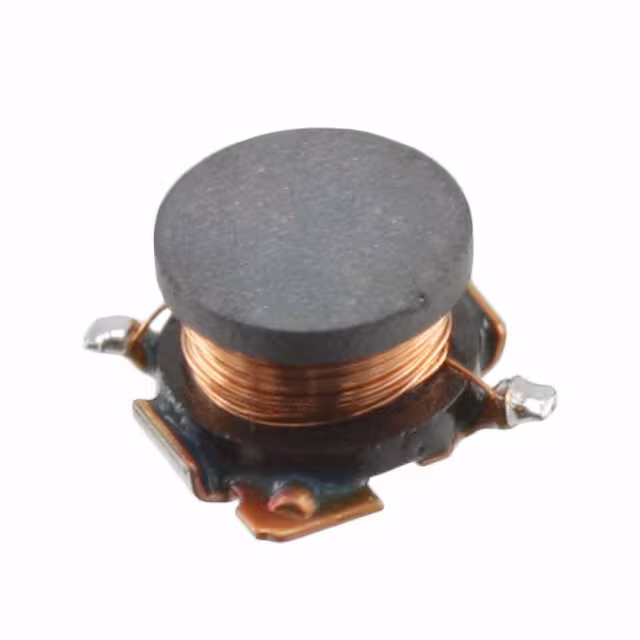

887FU-471M=P3INDUCTOR FIXED .47MH TYPE D32FU Toko America Inc. |
2,080 |
|
规格书 |
D32FU | Nonstandard | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" (2.20mm) |
