购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

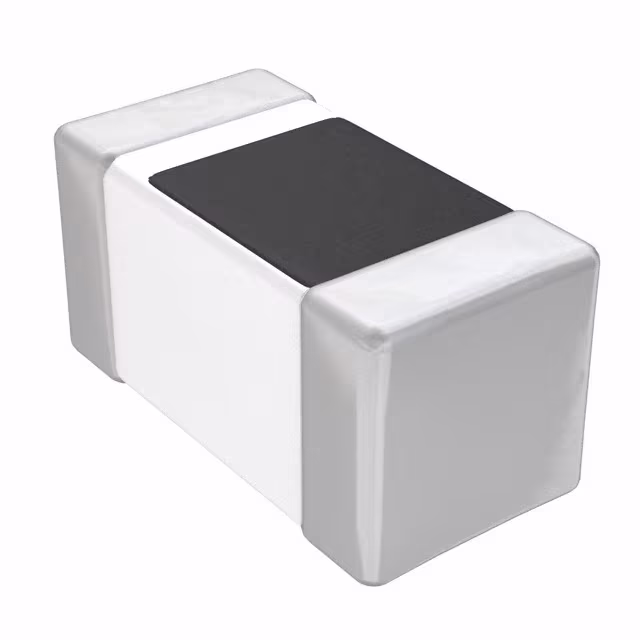

LL1005-FH10NK=P3FIXED IND 10NH 300MA 460MOHM SMD Toko America Inc. |
12,335 |
|
规格书 |
LL1005-FH | 0402 (1005 Metric) | Cut Tape (CT) | Obsolete | Multilayer | Ceramic | 10 nH | ±10% | 300 mA | - | Unshielded | 460mOhm Max | 12 @ 100MHz | 3.75GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

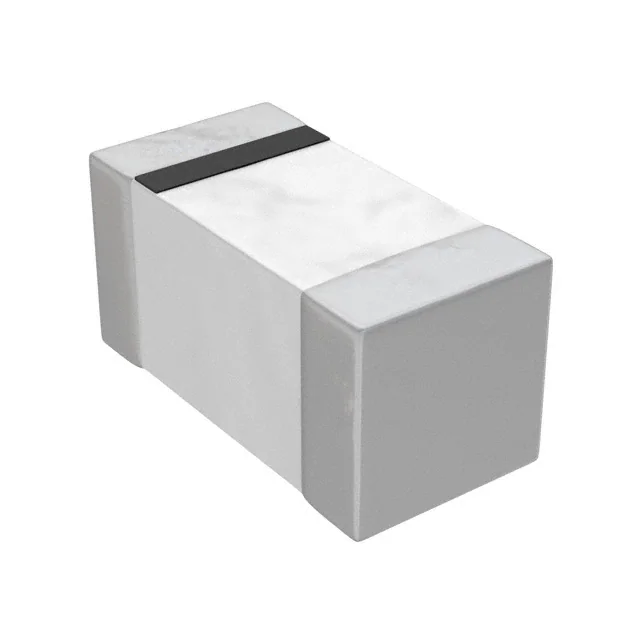

LL1608-F33NKFIXED IND 33NH 300MA 650MOHM SMD Toko America Inc. |
6,739 |
|
规格书 |
LL1608-F | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 33 nH | ±10% | 300 mA | - | Unshielded | 650mOhm Max | 14 @ 100MHz | 1.5GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LL1608-F12NKFIXED IND 12NH 300MA 400MOHM SMD Toko America Inc. |
12,027 |
|
规格书 |
LL1608-F | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 12 nH | ±10% | 300 mA | - | Unshielded | 400mOhm Max | 11 @ 100MHz | 2.7GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LL1005-FH8N2K=P3FIXED IND 8.2NH 300MA 390 MOHM Toko America Inc. |
2,268 |
|
规格书 |
LL1005-FH | 0402 (1005 Metric) | Cut Tape (CT) | Obsolete | Multilayer | Ceramic | 8.2 nH | ±10% | 300 mA | - | Unshielded | 390mOhm Max | 12 @ 100MHz | 4.1GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

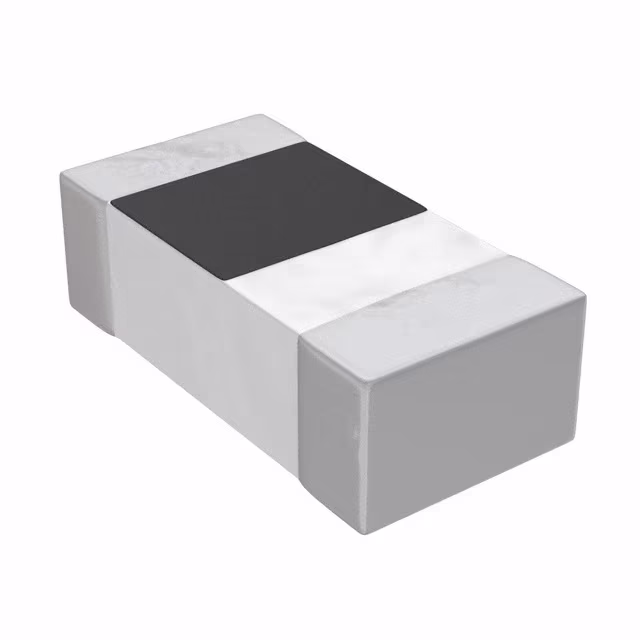

PTL1608-F15NTFIXED IND 15NH 200MA 2 OHM SMD Toko America Inc. |
2,096 |
|
规格书 |
PTL1608F | 0603 (1608 Metric) | Cut Tape (CT) | Obsolete | Thick Film | Ceramic | 15 nH | ±3% | 200 mA | - | Unshielded | 2Ohm Max | 7 @ 100MHz | 2.65GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
|
PTL1608-F2N2CFIXED IND 2.2NH 650MA 220MOHM SM Toko America Inc. |
6,154 |
|
规格书 |
PTL1608F | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thick Film | Ceramic | 2.2 nH | ±0.2nH | 650 mA | - | Unshielded | 220mOhm Max | 6.5 @ 100MHz | 8.4GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
LL2012-F1N8SINDUCTOR 1.8NH TYPE LL SMD Toko America Inc. |
1,813 |
|
规格书 |
LL2012-F | 0805 (2012 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.051" (1.30mm) |
|
|
PTL1608-F1N5CINDUCTOR PHOTOLITHOGRAPHIC 1.5NH Toko America Inc. |
3,248 |
|
规格书 |
PTL1608F | 0603 (1608 Metric) | Cut Tape (CT) | Obsolete | - | - | 1.5 nH | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
|

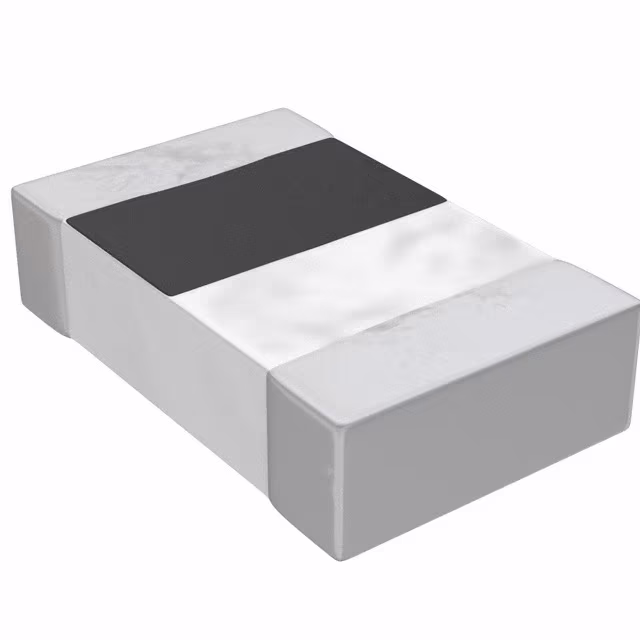

PTL2012-F68NTINDUCTOR PHOTOLITHOGRAPHIC 68NH Toko America Inc. |
1,024 |
|
规格书 |
PTL2012F | 0805 (2012 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) |
|
|
PTL2012-F1N8CINDUCTOR PHOTOLITHOGRAPHIC 1.8NH Toko America Inc. |
4,094 |
|
规格书 |
PTL2012F | 0805 (2012 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.026" (0.65mm) |
