购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0630CDMCDDS-1R5MCFIXED IND 1.5UH 10.2A 12.1 MOHM Sumida America Components Inc. |
1,300 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 10.2 A | 17.4A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0630CDMCDDS-R15MCFIXED IND 150NH 37A 1.1MOHM SMD Sumida America Components Inc. |
3,967 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 150 nH | ±20% | 37 A | 47.6A | Shielded | 1.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0640CDMCCDS-3R3MCFIXED IND 3.3UH 8A 21.5MOHM SMD Sumida America Components Inc. |
1,784 |
|
规格书 |
0640CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 8 A | 8.5A | Shielded | 21.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.157" (4.00mm) |
|

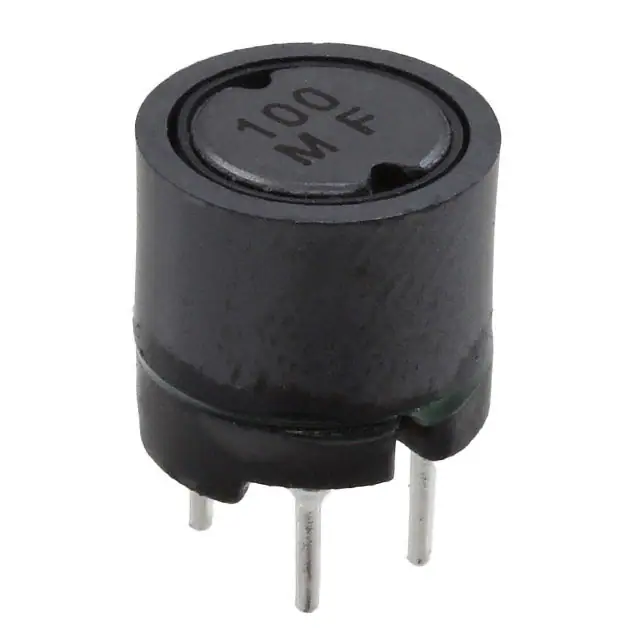

RCR110DNP-100MFIXED IND 10UH 3.51A 23 MOHM TH Sumida America Components Inc. |
3,841 |
|
规格书 |
RCR-110D | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | - | Ferrite | 10 µH | ±20% | 3.51 A | - | Shielded | 23mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
CR43NP-2R7MCFIXED IND 2.7UH 1.58A 78.7 MOHM Sumida America Components Inc. |
1,583 |
|
规格书 |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 1.58 A | - | Unshielded | 78.7mOhm Max | - | 64MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
104CDMCCDS-R56MCFIXED IND 560NH 27A 1.8MOHM SMD Sumida America Components Inc. |
4,540 |
|
规格书 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 27 A | 40A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH5D16F/LDNP-2R2NCFIXED IND 2.2UH 3.8A 27 MOHM SMD Sumida America Components Inc. |
4,728 |
|
规格书 |
CDRH5D16F/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±25% | 3.8 A | 1.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.071" (1.80mm) |
|

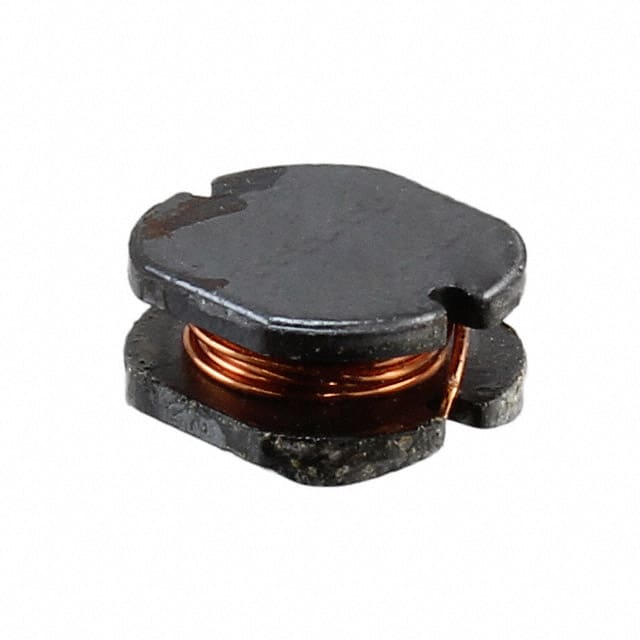

CD73NP-330MCFIXED IND 33UH 850MA 170MOHM SMD Sumida America Components Inc. |
4,458 |
|
规格书 |
CD73 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 850 mA | - | Unshielded | 170mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.157" (4.00mm) |
|
0830CDMCCDS-6R8MCFIXED IND 6.8UH 6A 43 MOHM SMD Sumida America Components Inc. |
2,339 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 6 A | 6.3A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-R68MCFIXED IND 680NH 20A 4.3 MOHM SMD Sumida America Components Inc. |
4,749 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 20 A | 20.7A | Shielded | 4.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
