| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
125CDMCCDS-6R8MCFIXED IND 6.8UH 11A 18 MOHM SMD Sumida America Components Inc. |
2,339 |
|
规格书 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 11 A | 17A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
0840CDMCCDS-8R2MCFIXED IND 8.2UH 5.5A 38.5MOHM SM Sumida America Components Inc. |
4,897 |
|
规格书 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 5.5 A | 6.1A | Shielded | 38.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|

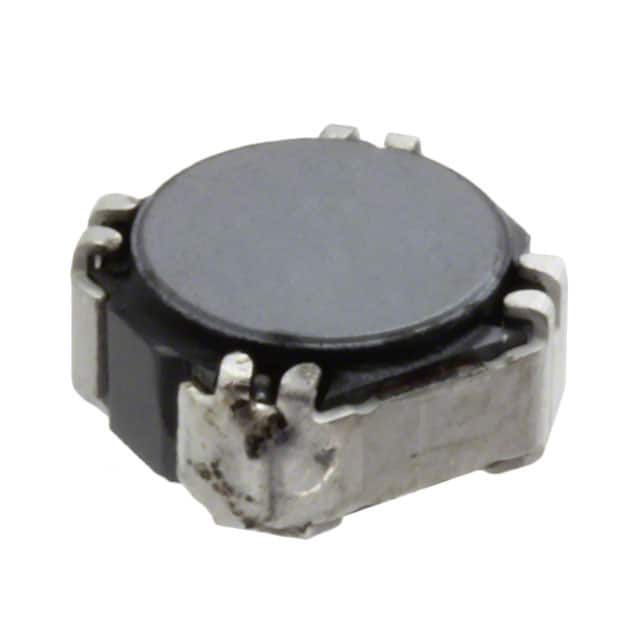

CDRH8D38/ANP-100MCFIXED IND 10UH 1.72A 42.5MOHM SM Sumida America Components Inc. |
4,088 |
|
规格书 |
CDRH8D38/A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.72 A | - | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CDRH10D60BT150NP-470MCFIXED IND 47UH 2.6A 74 MOHM SMD Sumida America Components Inc. |
2,551 |
|
规格书 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.6 A | 2.82A | Shielded | 74mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
DEP1519BHF-100MFIXED IND 10UH 10A 10.7 MOHM TH Sumida America Components Inc. |
2,767 |
|
规格书 |
DEP1519B | Radial, Vertical, 4 Leads | Box | Active | Wirewound | - | 10 µH | ±20% | 10 A | 26A | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
|
20610CDMCCDS-R24MCSMD INDUCTOR Sumida America Components Inc. |
1,400 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
20610CDMCCDS-R47MCSMD INDUCTOR Sumida America Components Inc. |
2,153 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CDH30D14DSHPHF-R68NCINDUCTOR Sumida America Components Inc. |
4,600 |
|
规格书 |
CDH30D14D/SHP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 2.8 A | 2.84A | Unshielded | 35mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.118" W (3.10mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDH30D14DSHPHF-1R0NCINDUCTOR Sumida America Components Inc. |
4,746 |
|
规格书 |
CDH30D14D/SHP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 2.32A | Unshielded | 50mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.118" W (3.10mm x 3.00mm) | 0.063" (1.60mm) |
|
|
CDH30D14DSHPHF-4R7MCINDUCTOR Sumida America Components Inc. |
4,930 |
|
规格书 |
CDH30D14D/SHP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | 1.06A | Unshielded | 255mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.118" W (3.10mm x 3.00mm) | 0.063" (1.60mm) |
