购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
177CDMCCDS-470MCFIXED IND 47UH 6.5A 49.2MOHM SMD Sumida America Components Inc. |
1,235 |
|
规格书 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 6.5 A | 9.1A | Shielded | 49.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
177CDMCCDS-3R3MCFIXED IND 3.3UH 26.5A 3.11 MOHM Sumida America Components Inc. |
336 |
|
规格书 |
177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 26.5 A | 31.8A | Shielded | 3.11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

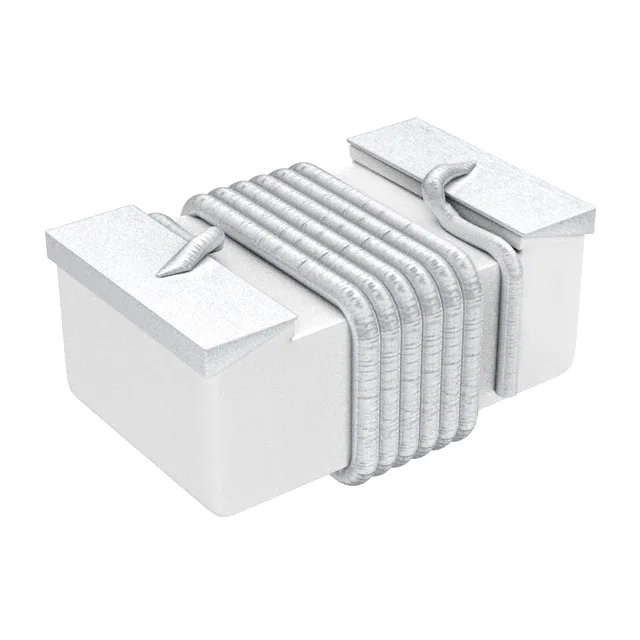

55082713400FIXED IND 270NH 180MA 1 OHM SMD Sumida America Components Inc. |
5,602 |
|
规格书 |
5508 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 180 mA | - | Unshielded | 1Ohm Max | 35 @ 100MHz | 870MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.056" (1.42mm) |
|
201610CDMCDDS-R47MCFIXED IND 470NH 4.6A 32 MOHM SMD Sumida America Components Inc. |
8,406 |
|
规格书 |
201610CDMCD/DS | 0806 (2016 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 470 nH | ±20% | 4.6 A | 4.8A | Shielded | 32mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
201610CDMCDDS-R24MCFIXED IND 240NH 6.3A 20 MOHM SMD Sumida America Components Inc. |
2,345 |
|
规格书 |
201610CDMCD/DS | 0806 (2016 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 240 nH | ±20% | 6.3 A | 6.1A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CD30D22HF-4R7MCFIXED IND 4.7UH 1.42A 140MOHM SM Sumida America Components Inc. |
2,729 |
|
规格书 |
CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.42 A | 1.49A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
.jpg)
|
252010CDMCDDS-1R5MCFIXED IND 1.5UH 3A 72 MOHM SMD Sumida America Components Inc. |
2,939 |
|
规格书 |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 3 A | 2.5A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
252010CDMCDDS-1R0MCFIXED IND 1UH 4A 48 MOHM SMD Sumida America Components Inc. |
2,623 |
|
规格书 |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 4 A | 3.4A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
252010CDMCDDS-R68MCFIXED IND 680NH 4.2A 37 MOHM SMD Sumida America Components Inc. |
5,961 |
|
规格书 |
252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±20% | 4.2 A | 3.7A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
252012CDMCDDS-R68MCFIXED IND 680NH 5.5A 30 MOHM SMD Sumida America Components Inc. |
5,625 |
|
规格书 |
252012CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 680 nH | ±20% | 5.5 A | 5.4A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
