| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

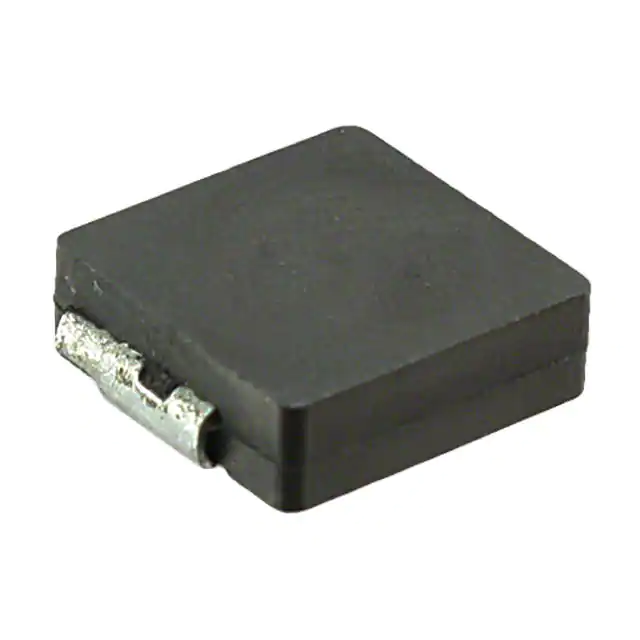

CDMC8D28NP-R68MCFIXED IND 680NH 15.4A 4.6MOHM SM Sumida America Components Inc. |
614 |
|
规格书 |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 15.4 A | 16A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|

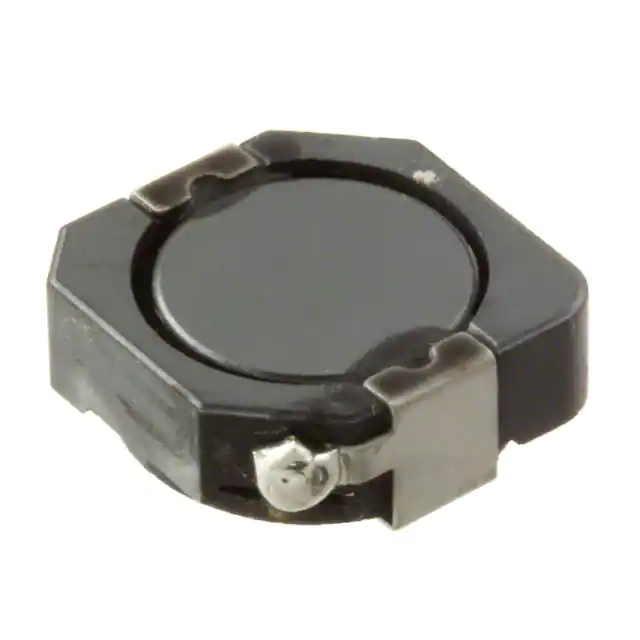

CDRH104RT125NP-220MCFIXED IND 22UH 2.3A 70 MOHM SMD Sumida America Components Inc. |
5,894 |
|
规格书 |
CDRH104R/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.3 A | 2.56A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH127NP-390MCFIXED IND 39UH 2.75A 72.9MOHM SM Sumida America Components Inc. |
1,500 |
|
规格书 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 39 µH | ±20% | 2.75 A | - | Shielded | 72.9mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127NP-560MCFIXED IND 56UH 2.35A 110MOHM SMD Sumida America Components Inc. |
653 |
|
规格书 |
CDRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 2.35 A | - | Shielded | 110mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDEP147NP-7R7MC-95FIXED IND 7.7UH 10A 9.85MOHM SMD Sumida America Components Inc. |
4,738 |
|
规格书 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.7 µH | ±20% | 10 A | 12.4A | Shielded | 9.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
|
CDEP147NP-8R0MC-125FIXED IND 8UH 11A 7.8 MOHM SMD Sumida America Components Inc. |
1,162 |
|
规格书 |
CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 11 A | 10A | Shielded | 7.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
CDEP134NP-8R0MCFIXED IND 8UH 6.5A 18.4 MOHM SMD Sumida America Components Inc. |
1,292 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 6.5 A | 7.2A | Shielded | 18.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.193" (4.90mm) |
|

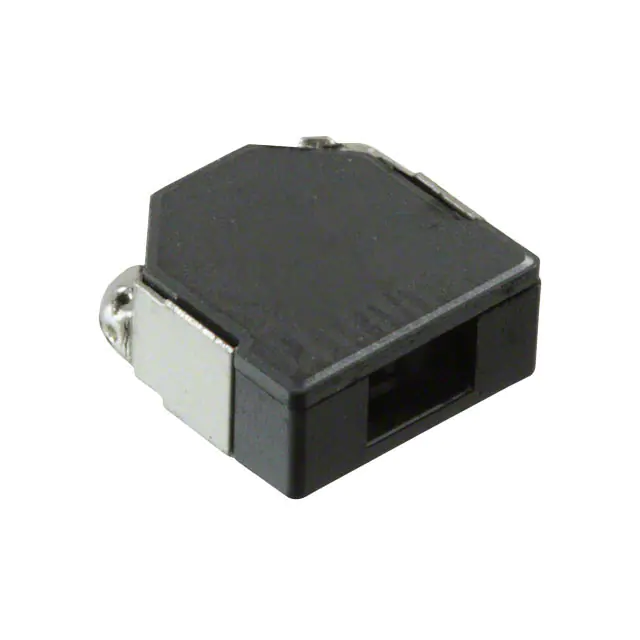

CDEIR6D31FHF-4R7MCFIXED IND 4.7UH 4.7A 26 MOHM SMD Sumida America Components Inc. |
3,897 |
|
规格书 |
CDEIR6D31F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 4.7 A | 4A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.126" (3.20mm) |
|

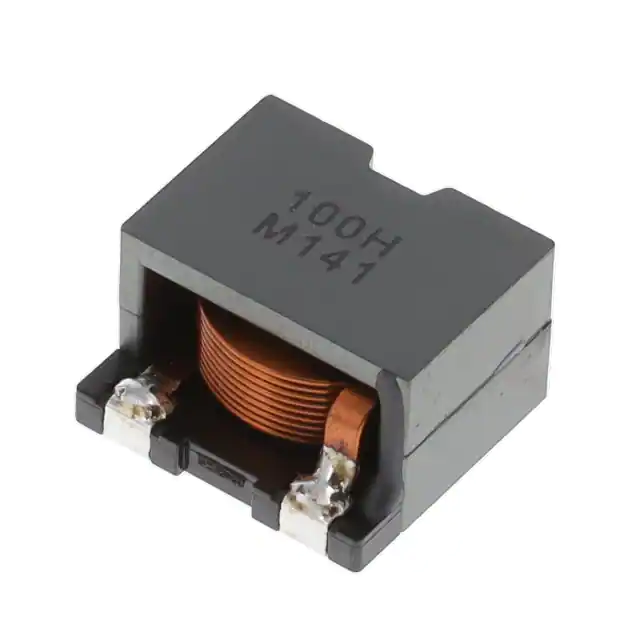

CDEP15D90T150NP-100MC-100FIXED IND 10UH 12.2A 8.9MOHM SMD Sumida America Components Inc. |
382 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 12.2 A | 16.2A | Shielded | 8.9mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
CDMT40D20HF-R63NCFIXED IND 630NH 6.1A 10.3MOHM SM Sumida America Components Inc. |
5,714 |
|
规格书 |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 630 nH | ±30% | 6.1 A | 10.4A | Shielded | 10.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
