| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0410CDMCCDS-R56MCFIXED IND 560NH 4.5A 34.5MOHM SM Sumida America Components Inc. |
2,975 |
|
规格书 |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 4.5 A | 6.2A | Shielded | 34.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
|
0410CDMCCDS-1R0MCFIXED IND 1UH 3.7A 56 MOHM SMD Sumida America Components Inc. |
2,680 |
|
规格书 |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 3.7 A | 4.1A | Shielded | 56mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
|
0410CDMCCDS-6R8MCFIXED IND 6.8UH 1.7A 257MOHM SMD Sumida America Components Inc. |
2,571 |
|
规格书 |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 1.7 A | 1.7A | Shielded | 257mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|

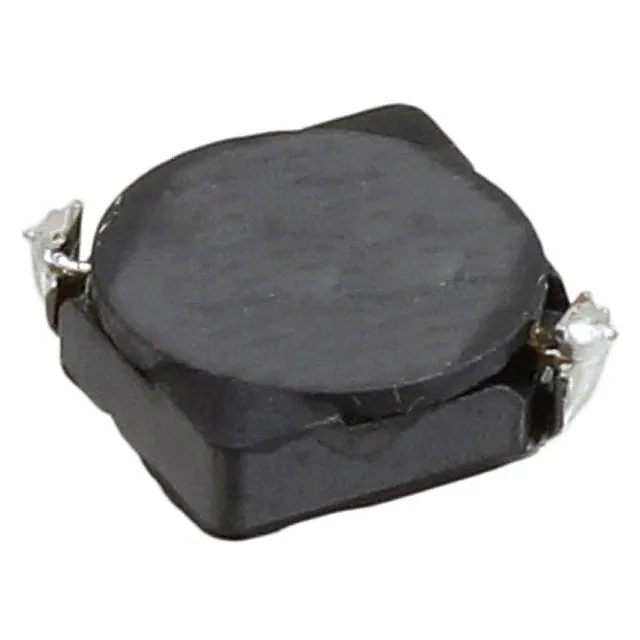

CDRH5D18NP-470NCFIXED IND 47UH 540MA 595MOHM SMD Sumida America Components Inc. |
2,335 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 540 mA | - | Shielded | 595mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
CDRH5D18NP-820NCFIXED IND 82UH 410MA 978MOHM SMD Sumida America Components Inc. |
2,238 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±30% | 410 mA | - | Shielded | 978mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|

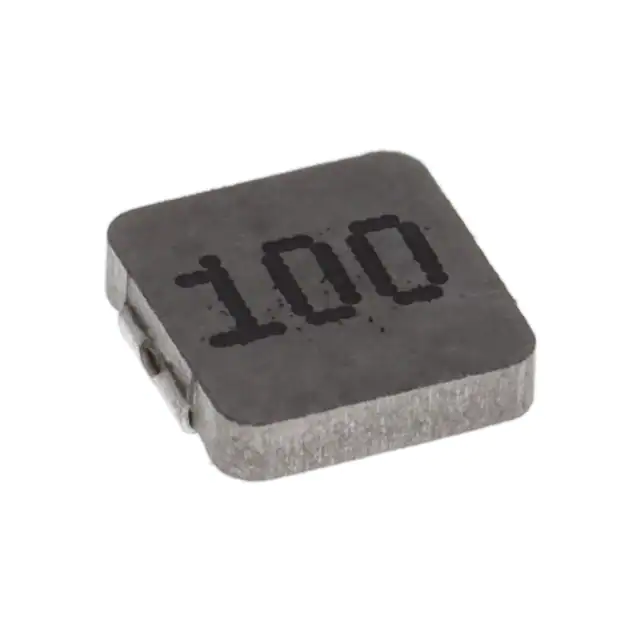

0410CDMCCDS-100MCFIXED IND 10UH 1.6A 318MOHM SMD Sumida America Components Inc. |
1,893 |
|
规格书 |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 1.6 A | 1.65A | Shielded | 318mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|
CR54NP-470LCFIXED IND 47UH 720MA 370MOHM SMD Sumida America Components Inc. |
1,004 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
CDRH5D18NP-150NCFIXED IND 15UH 970MA 196MOHM SMD Sumida America Components Inc. |
3,872 |
|
规格书 |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 970 mA | - | Shielded | 196mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|

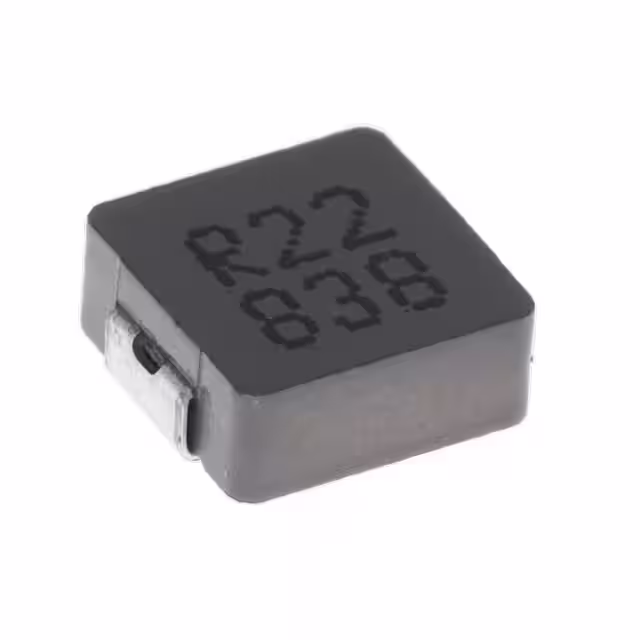

0630CDMCDDS-R22MCFIXED IND 220NH 24A 3 MOHM SMD Sumida America Components Inc. |
2,613 |
|
规格书 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 3.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

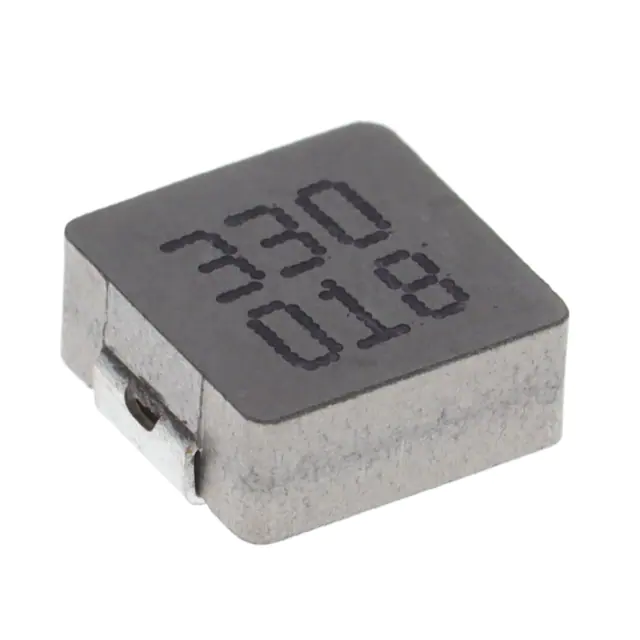

0630CDMCCDS-330MCFIXED IND 33UH 2.1A 258MOHM SMD Sumida America Components Inc. |
2,039 |
|
规格书 |
0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 2.1 A | 2.3A | Shielded | 258mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
