购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH74NP-221MC-BFIXED IND 220UH 360MA 1.17OHM SM Sumida America Components Inc. |
2,107 |
|
规格书 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 360 mA | - | Shielded | 1.17Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

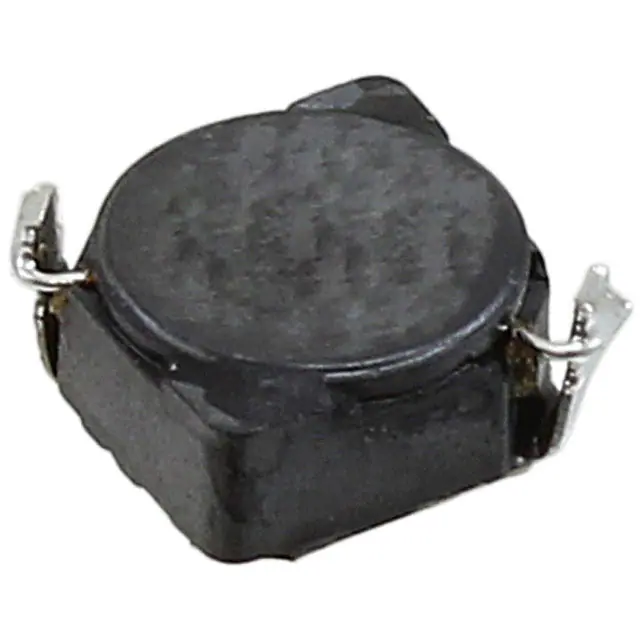

CDRH4D22NP-100NCFIXED IND 10UH 1.82A 102.4 MOHM Sumida America Components Inc. |
1,314 |
|
规格书 |
CDRH4D22 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.82 A | 800mA | Shielded | 102.4mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.094" (2.40mm) |
|
|
CDRH74NP-181MC-BFIXED IND 180UH 420MA 980MOHM SM Sumida America Components Inc. |
1,163 |
|
规格书 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 180 µH | ±20% | 420 mA | - | Shielded | 980mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRH8D28NP-220NCFIXED IND 22UH 1.85A 99 MOHM SMD Sumida America Components Inc. |
6,086 |
|
规格书 |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.85 A | 1.6A | Shielded | 99mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
CDRH2D14NP-4R7NCFIXED IND 4.7UH 1A 169 MOHM SMD Sumida America Components Inc. |
4,669 |
|
规格书 |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1 A | 1A | Shielded | 169mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
CDRH8D28NP-150NCFIXED IND 15UH 2.35A 69 MOHM SMD Sumida America Components Inc. |
2,798 |
|
规格书 |
CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2.35 A | 1.9A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|
|
CDRH2D14NP-3R3NCFIXED IND 3.3UH 1.24A 125MOHM SM Sumida America Components Inc. |
1,150 |
|
规格书 |
CDRH2D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.24 A | 1.2A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
CDRH80D65BT150NP-101MCFIXED IND 100UH 1.37A 168MOHM SM Sumida America Components Inc. |
4,512 |
|
规格书 |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.37 A | 1.41A | Shielded | 168mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

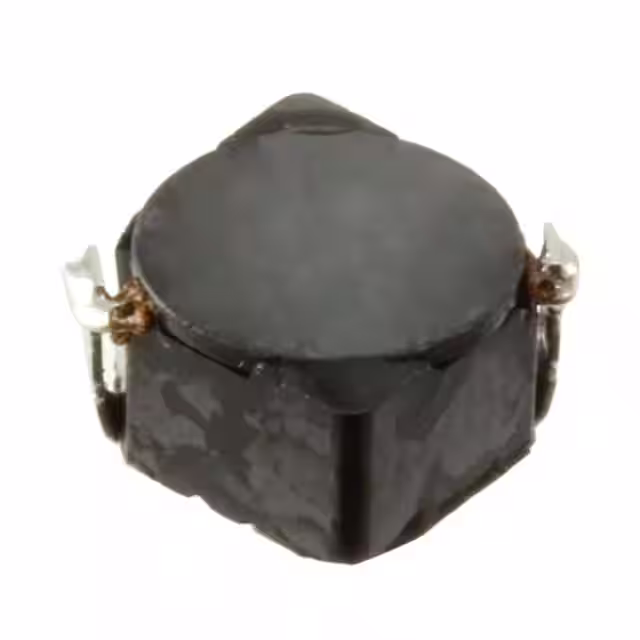

CDRH6D38T125NP-100PCFIXED IND 10UH 3A 43.5 MOHM SMD Sumida America Components Inc. |
4,055 |
|
规格书 |
CDRH6D38/T125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 3 A | 2.2A | Shielded | 43.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
CDRH6D12NP-2R2NCFIXED IND 2.2UH 2.3A 50 MOHM SMD Sumida America Components Inc. |
3,853 |
|
规格书 |
CDRH6D12 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 2.3 A | 2.5A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.059" (1.50mm) |
