| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

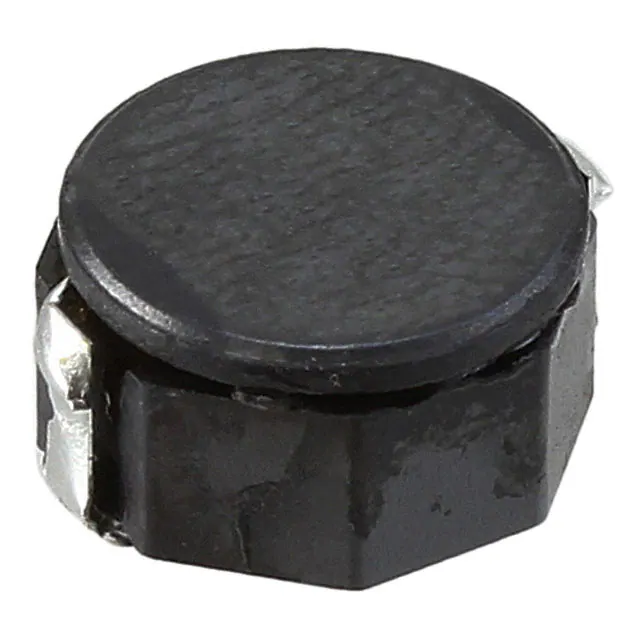

CDRH8D43HPNP-330NCFIXED IND 33UH 1.4A 150 MOHM SMD Sumida America Components Inc. |
2,500 |
|
规格书 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.4 A | 2.5A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
CDMC6D28NP-R20MCFIXED IND 200NH 17.4A 2.5MOHM SM Sumida America Components Inc. |
1,680 |
|
规格书 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | 200 nH | ±20% | 17.4 A | 21.7A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
|

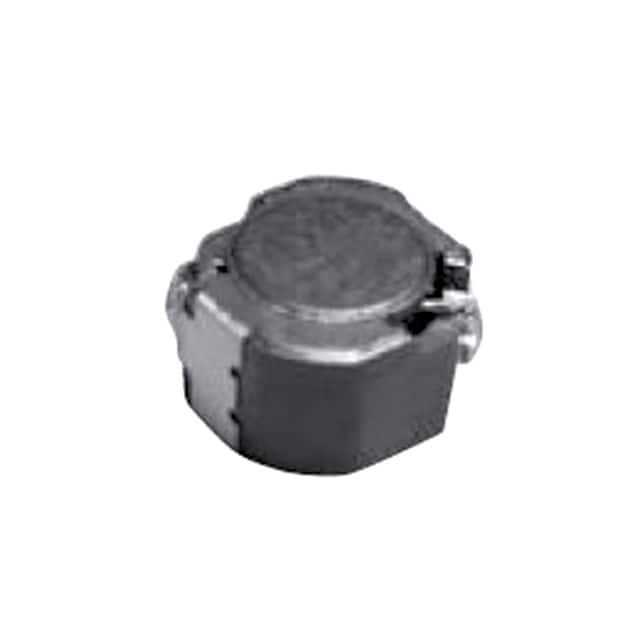

CDRH60D45BT150NP-470MCFIXED IND 47UH 1.4A 156MOHM SMD Sumida America Components Inc. |
7,901 |
|
规格书 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.4 A | 1.28A | Shielded | 156mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
CDRH3D16NP-330NCFIXED IND 33UH 320MA 675MOHM SMD Sumida America Components Inc. |
116 |
|
规格书 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 320 mA | - | Shielded | 675mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
0512CDMCCDS-2R2MCFIXED IND 2.2UH 3.6A 72.6MOHM SM Sumida America Components Inc. |
3,076 |
|
规格书 |
0512CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 3.6 A | 4.8A | Shielded | 72.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.047" (1.20mm) |
|
|
CDRH8D43HPNP-220NCFIXED IND 22UH 1.5A 125 MOHM SMD Sumida America Components Inc. |
1,700 |
|
规格书 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.5 A | 3A | Shielded | 125mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
|
CDRH127L125NP-7R5NCFIXED IND 7.5UH 7A 16.3MOHM SMD Sumida America Components Inc. |
1,448 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 7.5 µH | ±30% | 7 A | 9.2A | Shielded | 16.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

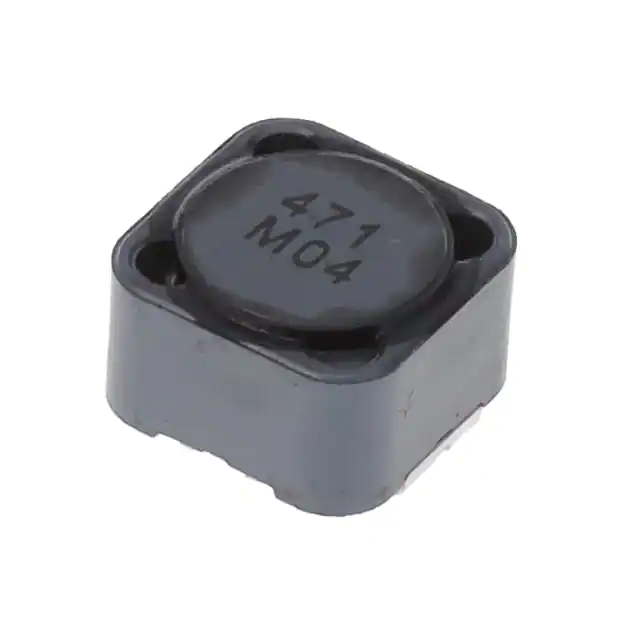

CDRH127L125NP-471MCFIXED IND 470UH 950MA 731MOHM SM Sumida America Components Inc. |
783 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 470 µH | ±20% | 950 mA | 1.2A | Shielded | 731mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

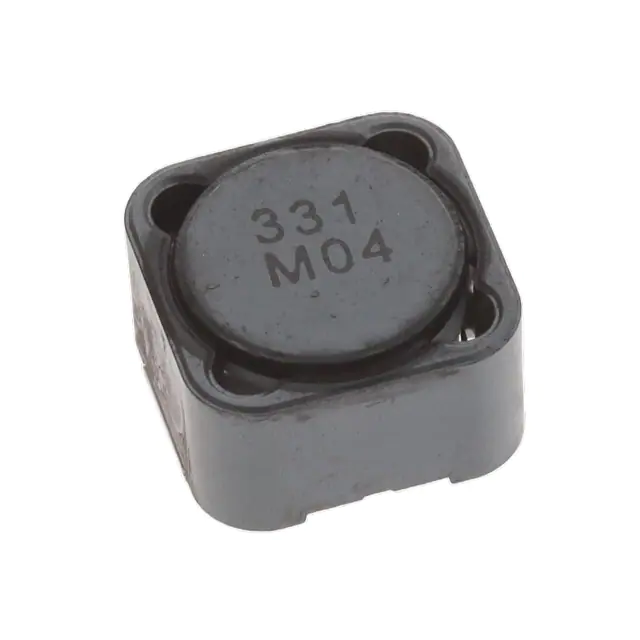

CDRH127L125NP-331MCFIXED IND 330UH 1.18A 478MOHM SM Sumida America Components Inc. |
185 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 330 µH | ±20% | 1.18 A | 1.42A | Shielded | 478mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH127L125NP-681MCFIXED IND 680UH 750MA 1.102 OHM Sumida America Components Inc. |
594 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 680 µH | ±20% | 750 mA | 980mA | Shielded | 1.102Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
