购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR54NP-5R6MCFIXED IND 5.6UH 2.48A 49.4 MOHM Sumida America Components Inc. |
3,905 |
|
规格书 |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 2.48 A | - | Unshielded | 49.4mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
CDRH5D28RNP-3R3NCFIXED IND 3.3UH 2.3A 20.3MOHM SM Sumida America Components Inc. |
4,152 |
|
规格书 |
CDRH5D28R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 2.3 A | - | Shielded | 20.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|

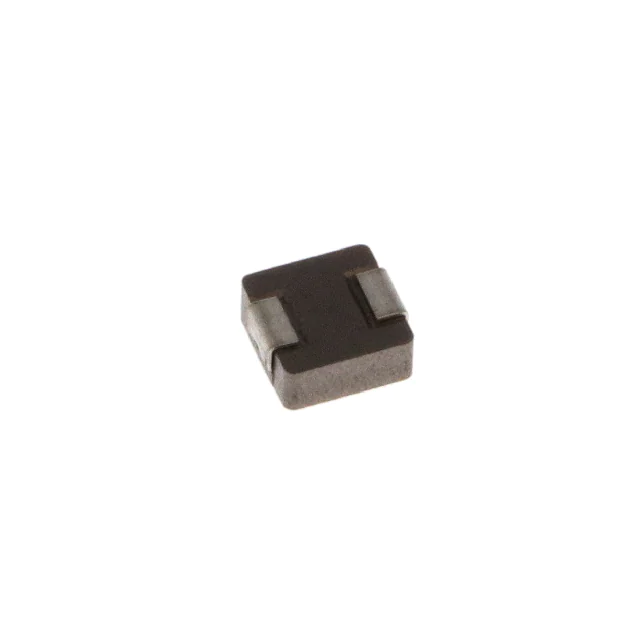

0630CDMCCDS-R47MCFIXED IND 470NH 20A 4.1MOHM SMD Sumida America Components Inc. |
9,569 |
|
规格书 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 20 A | 24.2A | Shielded | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
CDRH6D38NP-101NCFIXED IND 100UH 650MA 358MOHM SM Sumida America Components Inc. |
2,010 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±30% | 650 mA | - | Shielded | 358mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
CDRH4D28NP-470NCFIXED IND 47UH 480MA 587MOHM SMD Sumida America Components Inc. |
110,269 |
|
规格书 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 480 mA | - | Shielded | 587mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-1R5MCFIXED IND 1.5UH 10.2A 12.1 MOHM Sumida America Components Inc. |
38,189 |
|
规格书 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 10.2 A | 15.2A | Shielded | 12.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH4D28NP-3R3NCFIXED IND 3.3UH 1.57A 49.2 MOHM Sumida America Components Inc. |
18,404 |
|
规格书 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 1.57 A | - | Shielded | 49.2mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
|
CDRH6D38NP-150NCFIXED IND 15UH 1.6A 57 MOHM SMD Sumida America Components Inc. |
8,811 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 1.6 A | - | Shielded | 57mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
0630CDMCCDS-150MCFIXED IND 15UH 3.3A 115MOHM SMD Sumida America Components Inc. |
8,661 |
|
规格书 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 3.3 A | 4.3A | Shielded | 115mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH6D38NP-180NCFIXED IND 18UH 1.5A 92 MOHM SMD Sumida America Components Inc. |
3,954 |
|
规格书 |
CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 µH | ±30% | 1.5 A | - | Shielded | 92mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
