购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

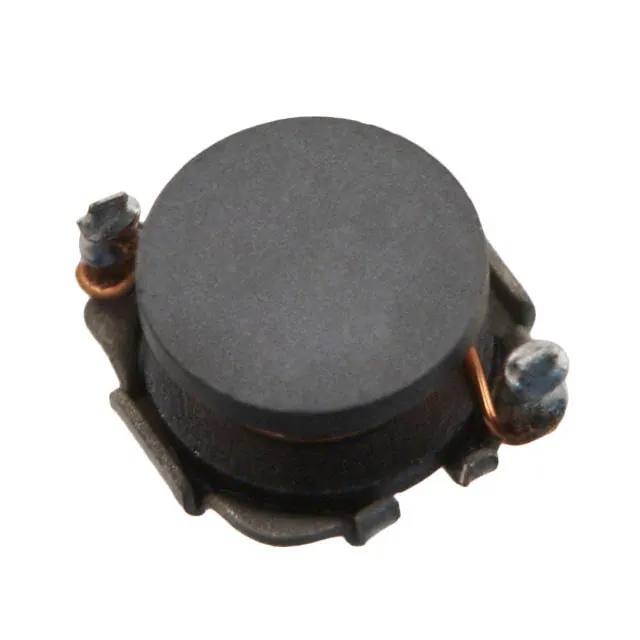

CDH53NP-2R2MCFIXED IND 2.2UH 2.03A 66MOHM SMD Sumida America Components Inc. |
3,607 |
|
规格书 |
CDH53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.03 A | - | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.126" (3.20mm) |
|

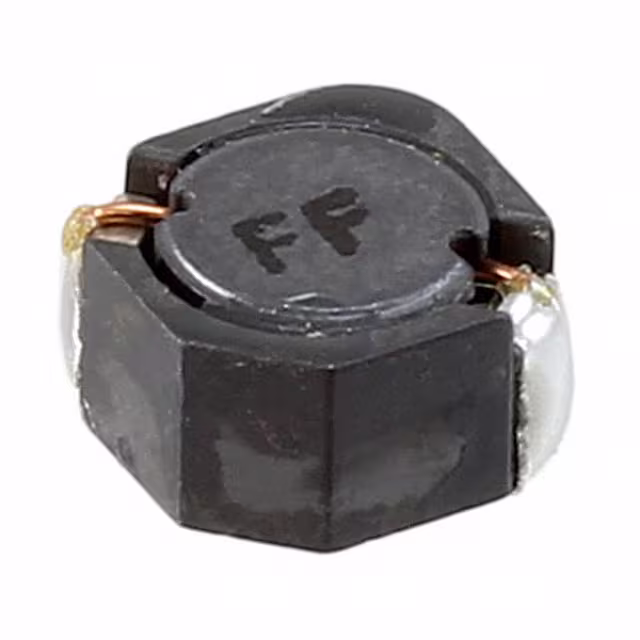

CDRH4D28CLDNP-3R3PCFIXED IND 3.3UH 3.2A 28.9MOHM SM Sumida America Components Inc. |
2,229 |
|
规格书 |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±25% | 3.2 A | 1.6A | Shielded | 28.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
0530CDMCCDS-1R0MCFIXED IND 1UH 9.4A 14 MOHM SMD Sumida America Components Inc. |
2,348 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 9.4 A | 12A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
0518CDMCCDS-3R3MCFIXED IND 3.3UH 4.2A 58MOHM SMD Sumida America Components Inc. |
31,955 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 4.2 A | 6.3A | Shielded | 58mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
0624CDMCCDS-R08MCFIXED IND 80NH 42A 850U OHM SMD Sumida America Components Inc. |
30,170 |
|
规格书 |
0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 80 nH | ±20% | 42 A | 72A | Shielded | 850µOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|

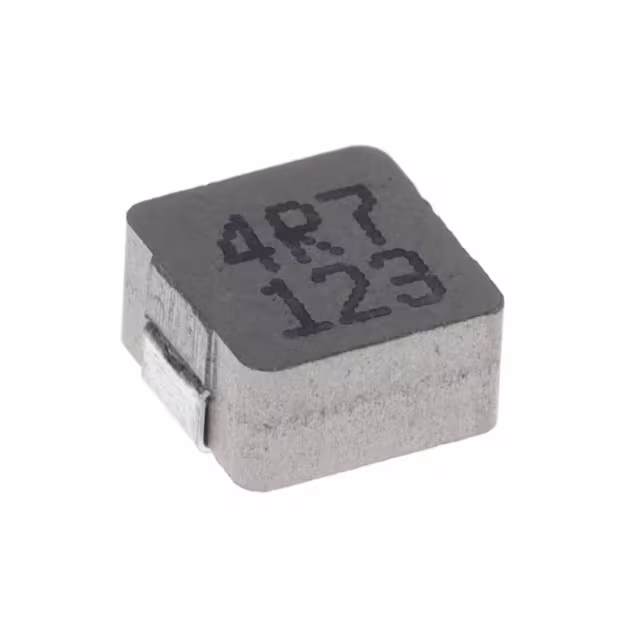

0530CDMCCDS-4R7MCFIXED IND 4.7UH 3.8A 60MOHM SMD Sumida America Components Inc. |
11,389 |
|
规格书 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 3.8 A | 6A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
0624CDMCCDS-2R2MCFIXED IND 2.2UH 7A 28 MOHM SMD Sumida America Components Inc. |
4,090 |
|
规格书 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 7 A | 12.8A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
0624CDMCCDS-R15MCFIXED IND 150NH 38A 1.08MOHM SMD Sumida America Components Inc. |
3,916 |
|
规格书 |
0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 38 A | 35A | Shielded | 1.08mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
|
0518CDMCCDS-150MCFIXED IND 15UH 1.8A 260MOHM SMD Sumida America Components Inc. |
3,191 |
|
规格书 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 1.8 A | 1.7A | Shielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
CDRH6D28NP-7R3NCFIXED IND 7.3UH 2.1A 54 MOHM SMD Sumida America Components Inc. |
3,000 |
|
规格书 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.3 µH | ±30% | 2.1 A | - | Shielded | 54mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
