| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDC50-681K-RC680uH +/-10% Radial Drum Core Allied Components International |
1,051 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 680 µH | ±10% | 9 A | 7.4A | Unshielded | 115mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
HTC100-151M-RC150uH +/-20% H.M. Toroidal Choke Allied Components International |
4,426 |
|
规格书 |
TC100 | Horizontal, 2 PC Pin | Tape & Reel (TR) | Active | Toroidal | - | 150 µH | ±20% | 1.5 A | 1.4A | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.560" Dia (14.22mm) | 0.240" (6.10mm) |
|
MCHC40-330K-RC33uH +/-10% 2220 Molded Chip Allied Components International |
1,979 |
|
规格书 |
MCHC40 | Nonstandard | Tray | Active | Molded | - | 33 µH | ±10% | - | 400mA | Unshielded | 620mOhm Max | 10 @ 2.52MHz | 10.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-332K-RC3300uH +/-10% 2220 Molded Chip Allied Components International |
3,619 |
|
规格书 |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 mH | ±10% | - | 40mA | Unshielded | 60Ohm Max | 20 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|
|
MCHC40-472K-RC4700uH +/-10% 2220 Molded Chip Allied Components International |
3,157 |
|
规格书 |
MCHC40 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 mH | ±10% | - | 36mA | Unshielded | 78Ohm Max | 20 @ 252kHz | 900kHz | - | -40°C ~ 125°C | 252 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.165" (4.20mm) |
|

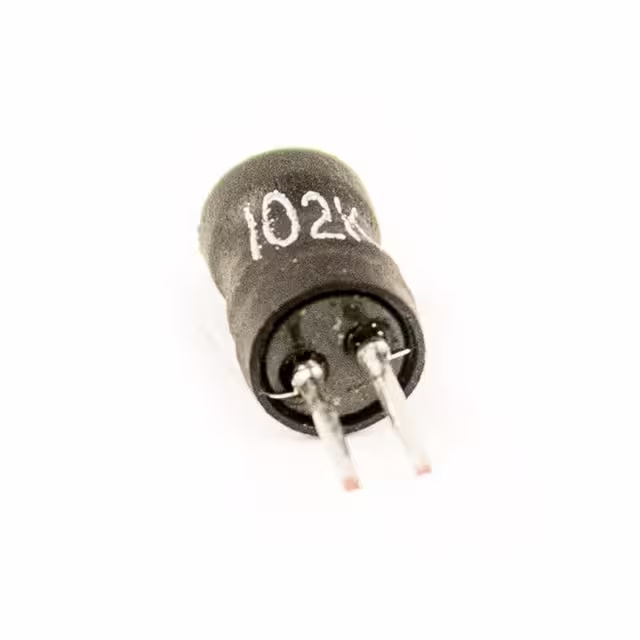

RB05-102K-RC1000uH +/-10% Radial Leaded Ind. Allied Components International |
3,927 |
|
规格书 |
RB05 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 210 mA | 160mA | Unshielded | 6Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | Radial | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|

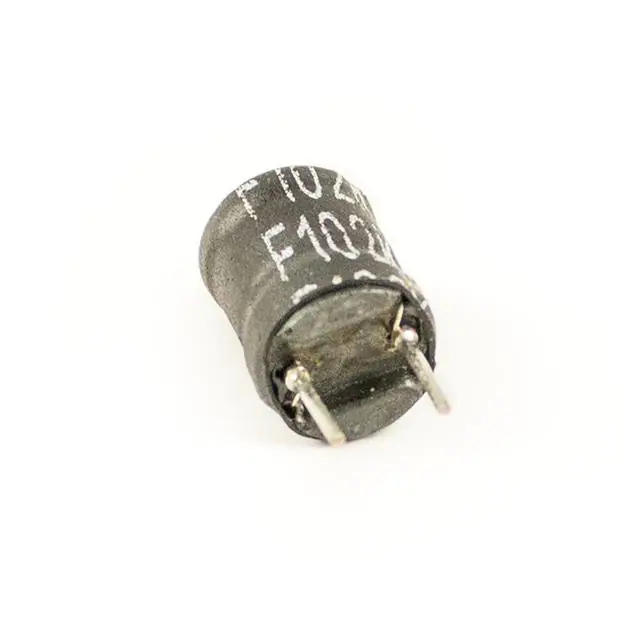

RB0810-560K-RC56uH +/-10% Radial Bobbin Ind. Allied Components International |
1,165 |
|
规格书 |
RB0810 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Wirewound | - | 56 µH | ±10% | 2.7 A | 1.8A | Unshielded | 120mOhm Max | - | 8.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.374" Dia (9.50mm) | 0.453" (11.50mm) |
|
LS03-1R5J-RC1.5uH +/-5% Ferrite Core Chip Allied Components International |
1,046 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tray | Active | Wirewound | Ferrite | 1.5 µH | ±5% | - | 540mA | Unshielded | 1.06Ohm Max | 17 @ 7.9MHz | 270MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
RB1315-152J-RC1500uH +/-5% Radial Inductor Allied Components International |
4,737 |
|
规格书 |
RB1315 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±5% | 680 mA | 1A | Unshielded | 1.3Ohm Max | 40 @ 252kHz | 830kHz | - | -25°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.551" Dia (14.00mm) | 0.669" (17.00mm) |
|

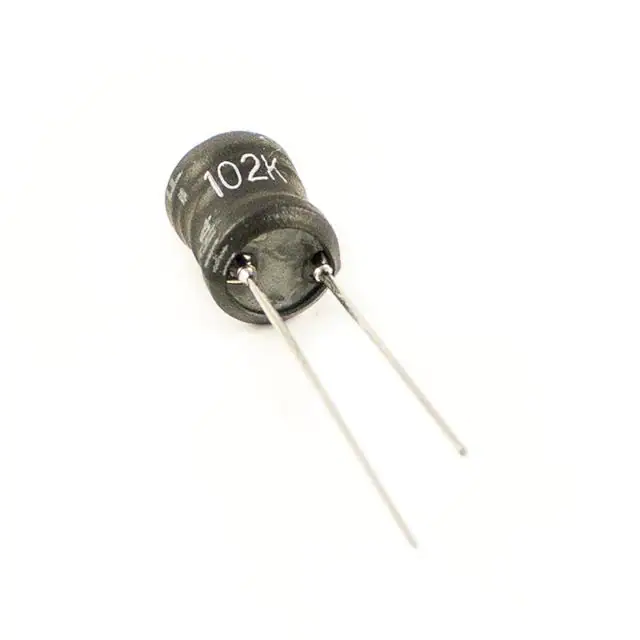

RB0814-102K-RC1000uH +/-10% Radial Inductor Allied Components International |
3,545 |
|
规格书 |
RB0814 | Radial, Vertical Cylinder | Tray | Active | - | - | 1 mH | ±10% | - | 300mA | Unshielded | 2.1Ohm Max | 40 @ 252kHz | 1.3MHz | - | -40°C ~ 105°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
