购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

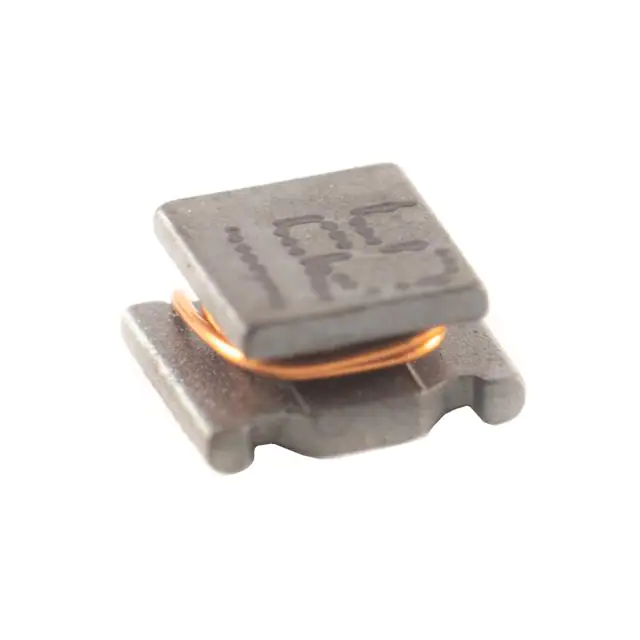

LRC27HC-1R5T-RC1.5uH +/-30% Hi-Current Inductor Allied Components International |
1,790 |
|
规格书 |
LRC27HC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±30% | 1.75 A | 1.75A | Unshielded | 57mOhm | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
LRHQ20-221K-RC220uH +/-10% Lo-Res Hi-Q Chip Allied Components International |
2,267 |
|
规格书 |
LRHQ20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±10% | 65 mA | - | Unshielded | 11.8Ohm Max | 40 @ 796kHz | 5.5MHz | - | -25°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
RDC30-221K-RC220uH +/-10% Radial Drum Core Allied Components International |
4,966 |
|
规格书 |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 220 µH | ±10% | 5.5 A | 8.7A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

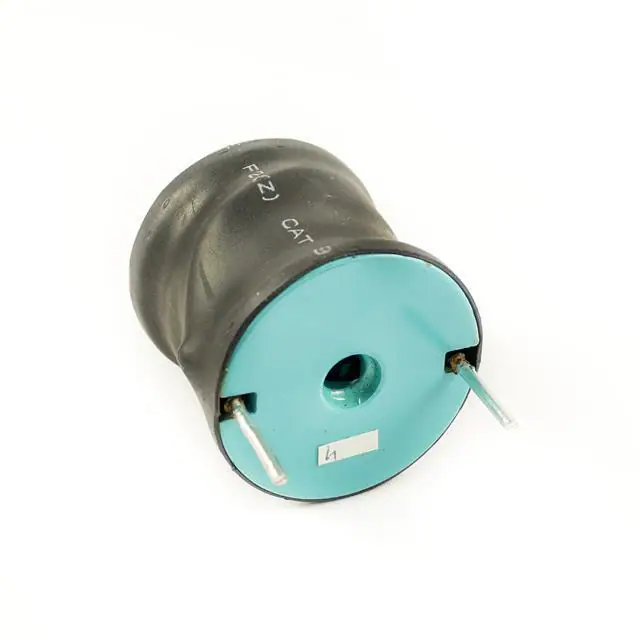

RDC50-101K-RC100uH +/-10% Radial Drum Core Allied Components International |
1,029 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 100 µH | ±10% | 21 A | 19A | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-123K-RC12000uH +/-10% Radial Drum Core Allied Components International |
1,248 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 12 mH | ±10% | 2 A | 1.7A | Unshielded | 1.92Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-391K-RC390uH +/-10% Radial Drum Core Allied Components International |
2,155 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 390 µH | ±10% | 11.4 A | 9.7A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-182K-RC1800uH +/-10% Radial Drum Core Allied Components International |
2,030 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 1.8 mH | ±10% | 5.5 A | 4.5A | Unshielded | 302mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-331K-RC330uH +/-10% Radial Drum Core Allied Components International |
2,684 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 330 µH | ±10% | 13.5 A | 10A | Unshielded | 49mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-392K-RC3900uH +/-10% Radial Drum Core Allied Components International |
2,332 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 3.9 mH | ±10% | 4 A | 3A | Unshielded | 699mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
|
|
RDC50-561K-RC560uH +/-10% Radial Drum Core Allied Components International |
2,609 |
|
规格书 |
RDC50 | Radial, Vertical Cylinder | Box | Active | Drum Core | - | 560 µH | ±10% | 9 A | 8.1A | Unshielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.450" (36.83mm) |
