购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS03-2R7J-RC2.7uH +/-5% Ferrite Core Chip Allied Components International |
4,619 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.7 µH | ±5% | - | 480mA | Unshielded | 1.5Ohm Max | 17 @ 7.9MHz | 105MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-47NJ-RC.047uH +/-5% Ferrite Core Chip Allied Components International |
1,659 |
|
规格书 |
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 nH | ±5% | - | 1.5A | Unshielded | 75mOhm Max | 17 @ 7.9MHz | 1.7GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|

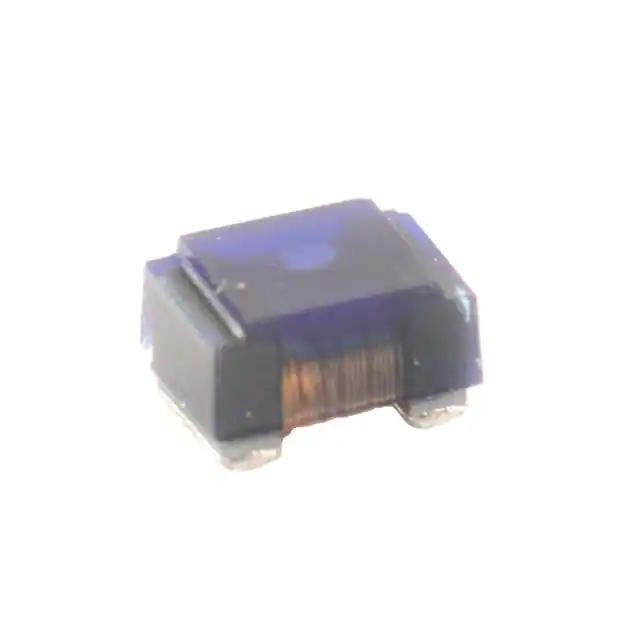

LS05-150J-RC15uH +/-5% Ferrite Core Chip Allied Components International |
1,442 |
|
规格书 |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±5% | - | 350mA | Unshielded | 3.55Ohm Max | 16 @ 2.5MHz | 35MHz | - | -25°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
LS05-3R9J-RC3.9uH +/-5% Ferrite Core Chip Allied Components International |
1,232 |
|
规格书 |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±5% | - | 600mA | Unshielded | 1.5Ohm Max | 23 @ 7.9MHz | 90MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
LS05-1R0J-RC1.0uH +/-5% Ferrite Core Chip Allied Components International |
4,837 |
|
规格书 |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±5% | - | 700mA | Unshielded | 690mOhm Max | 20 @ 7.9MHz | 400MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|
|
LS05-5R6J-RC5.6uH +/-5% Ferrite Core Chip Allied Components International |
3,486 |
|
规格书 |
LS05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±5% | - | 500mA | Unshielded | 1.7Ohm Max | 20 @ 7.9MHz | 65MHz | - | -25°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|

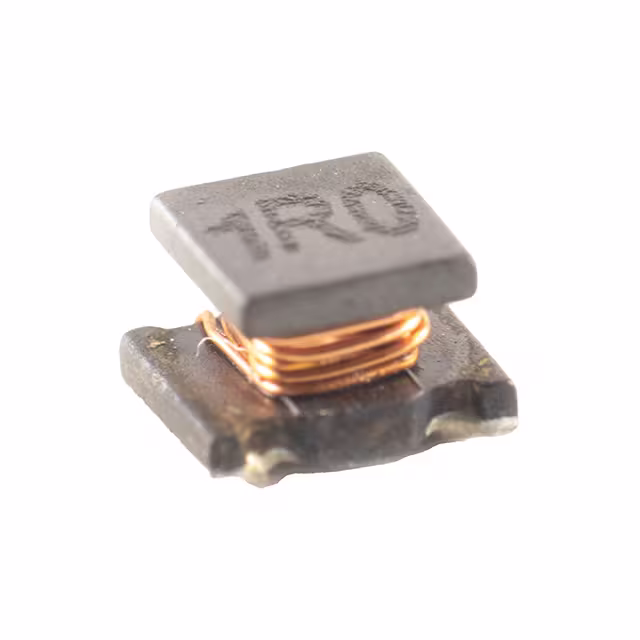

LRC20-1R0M-RC1.0uH +/-20% Low Resistance Chip Allied Components International |
1,923 |
|
规格书 |
LRC20 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 1 A | - | Unshielded | 120mOhm Max | - | 96MHz | - | -25°C ~ 125°C | 1 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.087" (2.21mm) |
|

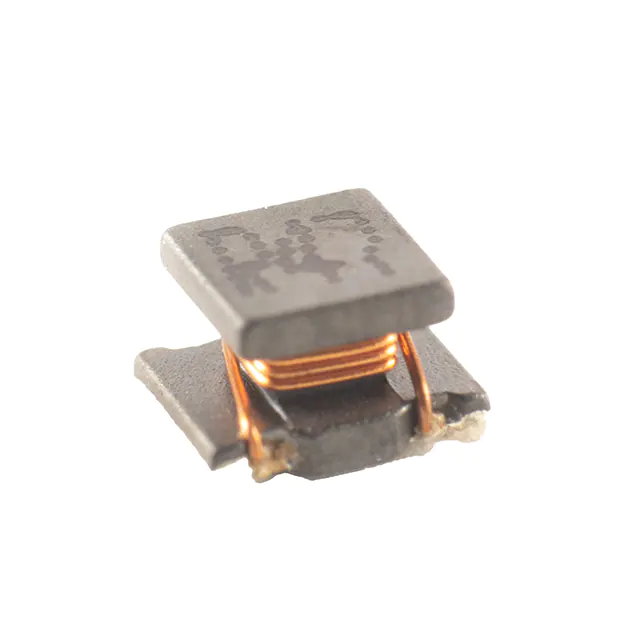

LRC20L-2R2M-RC2.2uH +/-20% Lo-Res Chip Allied Components International |
2,154 |
|
规格书 |
LRC20L | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 790 mA | - | Unshielded | 97mOhm Max | - | 64MHz | - | -25°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.087" (2.21mm) |
|
LRC30-100K-RC10uH +/-10% Low Resistance Chip Allied Components International |
4,005 |
|
规格书 |
LRC30 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±10% | 650 mA | - | Unshielded | 240mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.79mm) |
|
LD05-101M-RC100uH +/-20% 0805 Ferrite Core Allied Components International |
4,561 |
|
规格书 |
LD05 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | - | 70mA | Unshielded | 9Ohm Max | 18 @ 7.96MHz | 9MHz | - | -25°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
