购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5-435166-1SWITCH ROCKER DIP SPST |
4,455 |
|
规格书 |
7000 | Bulk | Active | SPST | 6 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
GDH04SA04SWITCH SLIDE DIP SPST 0.025A 24V |
3,107 |
|
规格书 |
GDH | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

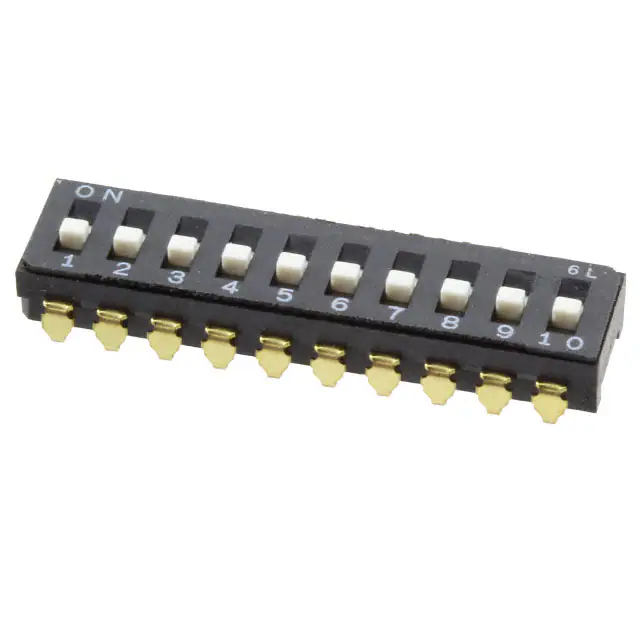

CFS-1002TASWITCH SLIDE DIP SPST 0.1A 6V |
1,170 |
|
规格书 |
CFS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ12RXTSWITCH SLIDE DIP SPST 0.025A 24V |
3,531 |
|
规格书 |
KJ | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ12EXTSWITCH SLIDE DIP SPST 0.025A 24V |
1,147 |
|
规格书 |
KJ | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAN1102RRSWITCH SLIDE DIP SPST 0.025A 24V |
2,140 |
|
规格书 |
KAN | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADE10SWITCH SLIDE DIP SPST 0.1A 24V |
2,258 |
|
规格书 |
ADE | Tube | Obsolete | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.232" (5.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
206-126RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
3,873 |
|
规格书 |
206RA | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
204-126STRSWITCH SLIDE DIP SPDT 0.05A 24V |
3,590 |
|
规格书 |
204 | Tape & Reel (TR) | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
IKD0603000DIP SWITCH IKH HALF PITCH |
1,333 |
|
规格书 |
IKD | Bulk | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CHS-04TB2SWITCH SLIDE DIP SPST 0.1A 6V |
2,896 |
|
- |
CHS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-04TA2SWITCH SLIDE DIP SPST 0.1A 6V |
1,480 |
|
- |
CHS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
SC-2030TBSW ROTARY DIP BCD COMP 0.1A 5V |
1,712 |
|
- |
SC-2000 | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-1230WSW ROTARY DIP HEX COMP 0.1A 5V |
3,119 |
|
- |
SC | Tray | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2030WSW ROTARY DIP BCD COMP 0.1A 5V |
1,461 |
|
- |
SC-2000 | Tray | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-1210WSWITCH ROTARY DIP HEX 0.1A 5V |
4,949 |
|
- |
SC | Tray | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2210WSWITCH ROTARY DIP BCD 0.1A 5V |
3,364 |
|
- |
SC-2000 | Tray | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-1210TBSWITCH ROTARY DIP HEX 0.1A 5V |
4,973 |
|
- |
SC | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2210TBSWITCH ROTARY DIP BCD 0.1A 5V |
1,774 |
|
- |
SC-2000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-1230TBSW ROTARY DIP HEX COMP 0.1A 5V |
4,952 |
|
- |
SC | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
