购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
218-12LPSJFSWITCH SLIDE DIP SPST 0.025A 24V |
1,873 |
|
规格书 |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
4-5435166-9SWITCH ROCKER DIP SPST |
3,016 |
|
规格书 |
7000 | Tape & Reel (TR) | Active | SPST | 4 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
RDS1-4S-1065-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
4,461 |
|
规格书 |
RDS1-1065-D-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

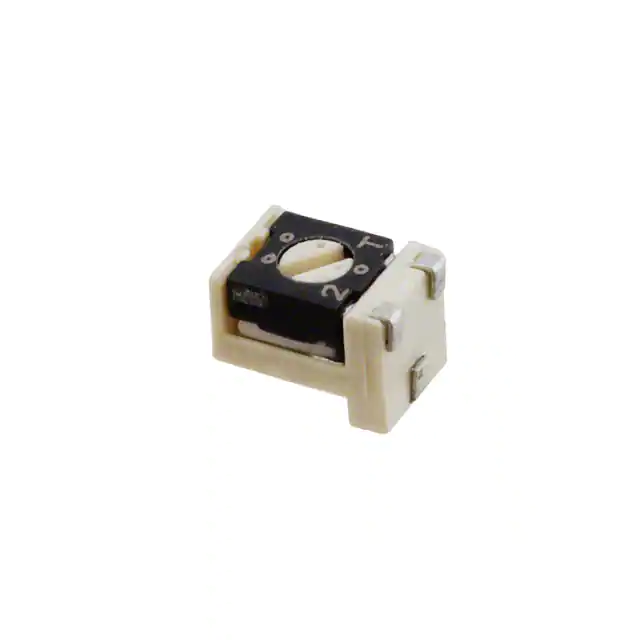

7813S-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
4,258 |
|
规格书 |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.211" (5.35mm) | Surface Mount, Right Angle | J Lead | - | No | - | -55°C ~ 125°C |
|
|
NDIR08SSWITCH SLIDE DIP SPST 0.025A 24V |
2,907 |
|
规格书 |
NDI | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
GDH04SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
4,761 |
|
规格书 |
GDH | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
1825006-4SWITCH STANDARD DIP SPST |
2,084 |
|
规格书 |
GDS | Tape & Reel (TR) | Active | SPST | 2 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
ADF06SASWITCH SLIDE DIP SPST 0.025A 24V |
3,137 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
RDS3-4S-1065-DSWITCH ROTARY DIP SPST 0.15A 42V |
4,433 |
|
规格书 |
RDS3-1065-D | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1065-DSWITCH ROTARY DIP SPST 0.15A 42V |
3,755 |
|
规格书 |
RDS6-1065-D | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDIR08HSWITCH SLIDE DIP SPST 0.025A 24V |
4,476 |
|
规格书 |
NDI | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDI08HSWITCH SLIDE DIP SPST 0.025A 24V |
2,115 |
|
规格书 |
NDI | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDIR07STSWITCH SLIDE DIP SPST 0.025A 24V |
4,147 |
|
规格书 |
NDI | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
204-221STRSWITCH SLIDE DIP DPDT 0.05A 24V |
1,392 |
|
规格书 |
204 | Tape & Reel (TR) | Obsolete | DPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

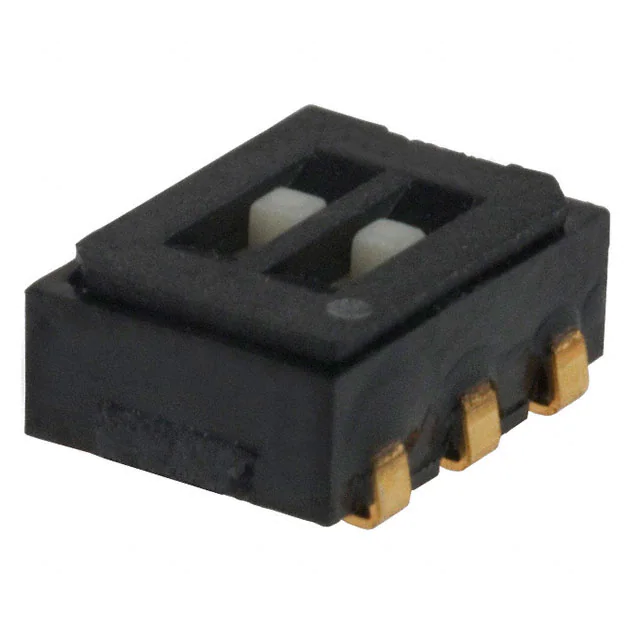

CAS-D20TA1SWITCH SLIDE SPDTX2 100MA 6V |
1,517 |
|
规格书 |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|

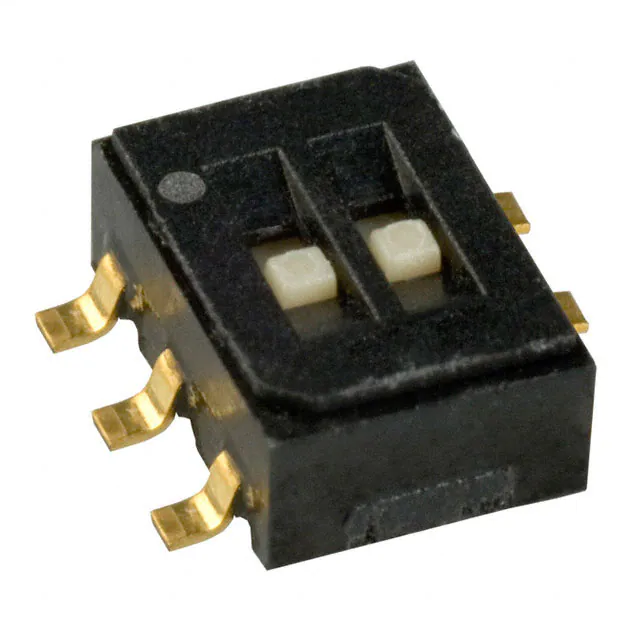

CAS-D20TB1SWITCH SLIDE SPDTX2 100MA 6V |
2,413 |
|
规格书 |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
218-12LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
2,511 |
|
规格书 |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-12LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
4,318 |
|
规格书 |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
435640-4SWITCH ROCKER DIP SPST 0.06A 5V |
1,056 |
|
规格书 |
7100 | Tube | Active | SPST | 6 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
7814H-1-023SWITCH ROTARY DIP SPDT 0.1A 16V |
3,327 |
|
规格书 |
7814 | Tube | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Through Hole | PC Pin | - | No | - | -55°C ~ 125°C |
