购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAC10LGGRSWITCH PIANO DIP SPST 0.025A 24V |
4,974 |
|
规格书 |
KAC | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.201" (5.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
204-124LPSTSWITCH SLIDE DIP SPDT 0.05A 24V |
2,294 |
|
规格书 |
204 | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-12LPSSWITCH SLIDE DIP SPST 0.025A 24V |
3,546 |
|
规格书 |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-12LPSFSWITCH SLIDE DIP SPST 0.025A 24V |
1,849 |
|
规格书 |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
CS-4-12YCSWITCH ROTARY DIP SPDT 0.1A 16V |
1,607 |
|
- |
CS-4 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Through Hole | PC Pin | - | Yes | - | -25°C ~ 70°C |
|
|
KAN1106RR (W/E-LOGO)SWITCH SLIDE DIP SPST 0.025A 24V |
1,491 |
|
规格书 |
KAN | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADE07SSWITCH SLIDE DIP SPST 0.1A 24V |
1,632 |
|
规格书 |
ADE | Tube | Obsolete | SPST | 7 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1814424-1SWITCH SLIDE DIP SPST 0.025A 24V |
2,689 |
|
规格书 |
ADF | Tape & Box (TB) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
218-12LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,550 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-12LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
4,682 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
1-435802-2SWITCH PIANO DIP SPST 0.025A 24V |
3,762 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
LDN-08-BSWITCH SLIDE DIP SPST 0.01A 5V |
3,766 |
|
- |
LDN | Tube | Active | SPST | 8 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|
|
LDNA-06-BSWITCH DIP |
2,542 |
|
- |
LDNA | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADF03SASWITCH SLIDE DIP SPST 0.025A 24V |
4,415 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

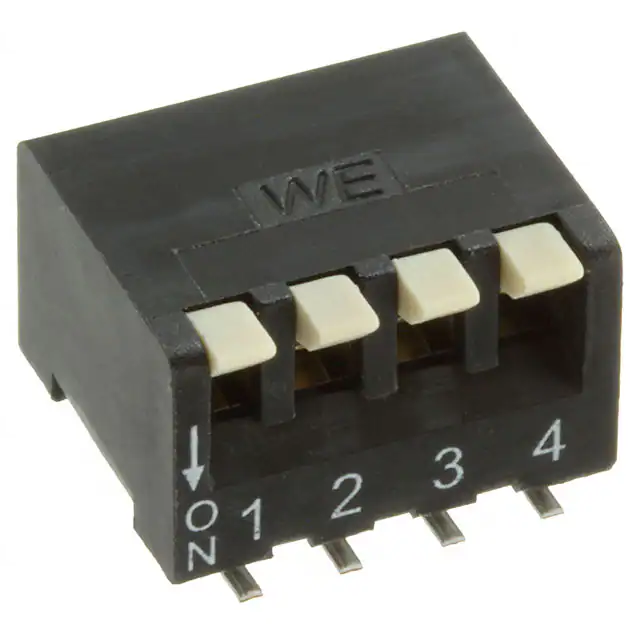

418311170804SWITCH PIANO DIP SPST 0.025A 24V |
1,448 |
|
规格书 |
WS-DISU | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.275" (6.99mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
204-125STSWITCH SLIDE DIP SPDT 0.05A 24V |
4,998 |
|
规格书 |
204 | Tube | Active | SPDT | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
CFS-0901TASWITCH SLIDE DIP SPST 0.1A 6V |
3,643 |
|
- |
CFS | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFS-0901TBSWITCH SLIDE DIP SPST 0.1A 6V |
2,225 |
|
- |
CFS | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
204-124STRSWITCH SLIDE DIP SPDT 0.05A 24V |
3,195 |
|
规格书 |
204 | Tape & Reel (TR) | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
CFP-0312TBSWITCH PIANO DIP SPST 0.1A 6V |
4,299 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
