购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR12TTRSWITCH SLIDE DIP SPST 0.025A 24V |
2,242 |
|
规格书 |
DM | Tape & Reel (TR) | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
ADPA04SASWITCH PIANO DIP SPST 0.025A 24V |
4,290 |
|
规格书 |
ADPA | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Surface Mount, Right Angle | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
SDA06H1SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
1,725 |
|
规格书 |
SDA | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.215" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KE10RXGRSWITCH SLIDE DIP SPST 0.025A 24V |
2,758 |
|
规格书 |
KE | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
KAN1108RR-OFFSWITCH SLIDE DIP SPST 0.025A 24V |
3,614 |
|
规格书 |
KAN | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|

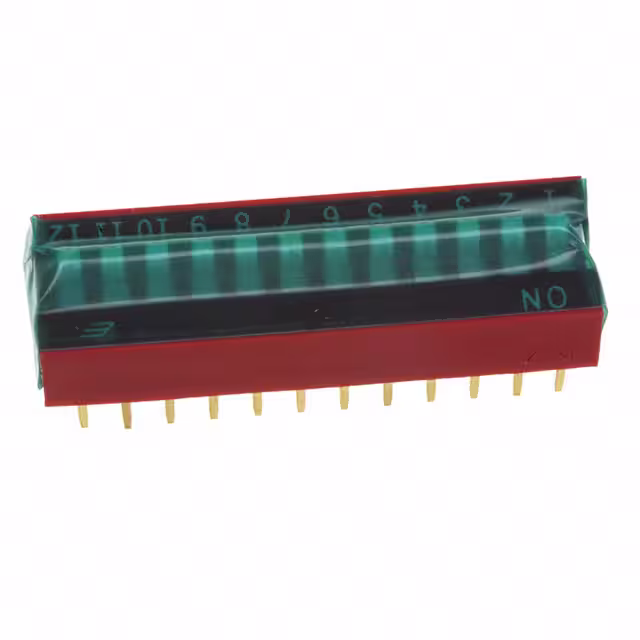

KAS1112ETSWITCH SLIDE DIP SPST 0.025A 24V |
4,798 |
|
规格书 |
KAS | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
435640-6SWITCH ROCKER DIP SPST 0.06A 5V |
4,149 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
DHN02FTVTRDIP SWITCH IKH HALF PITCH |
1,351 |
|
- |
DHN | Bulk | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
SD02H1BSWITCH SLIDE DIP SPST 0.1A 25V |
1,307 |
|
规格书 |
SD | Tube | Active | SPST | 2 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.178" (4.52mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADF06STSWITCH SLIDE DIP SPST 0.025A 24V |
1,483 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDH04STRSWITCH SLIDE DIP SPST 0.025A 24V |
2,496 |
|
规格书 |
GDH | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
NDPL12TVDIP SWITCH DP PIANO STYLE |
3,029 |
|
规格书 |
NDPL | Bulk | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
BPA07RBSWITCH PIANO DIP SPST 100MA 5VDC |
2,659 |
|
规格书 |
BPA | Bulk | Active | SPST | 7 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
NDIR02HTSWITCH SLIDE DIP SPST 0.025A 24V |
3,208 |
|
规格书 |
NDI | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
CAS-D20TB2SWITCH SLIDE SPDTX2 0.1A 6V |
3,065 |
|
- |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
CAS-D20TA2SWITCH SLIDE SPDTX2 0.1A 6V |
4,701 |
|
- |
CAS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
|
DHN04FTVDIP SWITCH IKH HALF PITCH |
1,308 |
|
- |
DHN | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

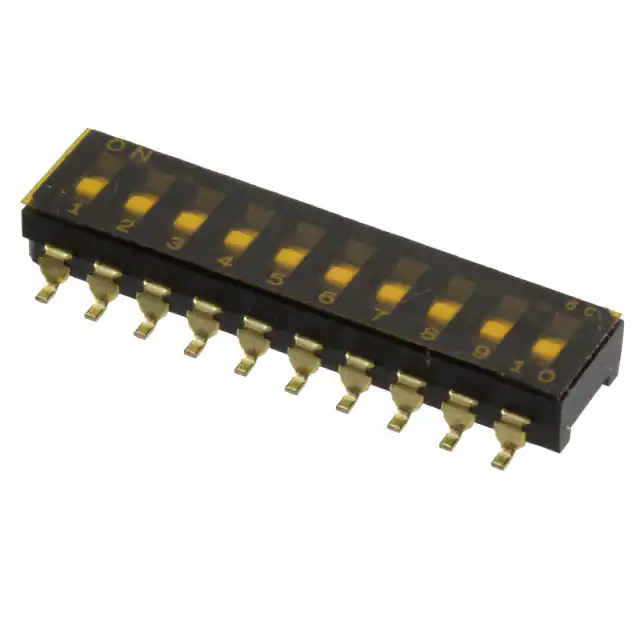

CFS-1000TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,440 |
|
规格书 |
CFS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

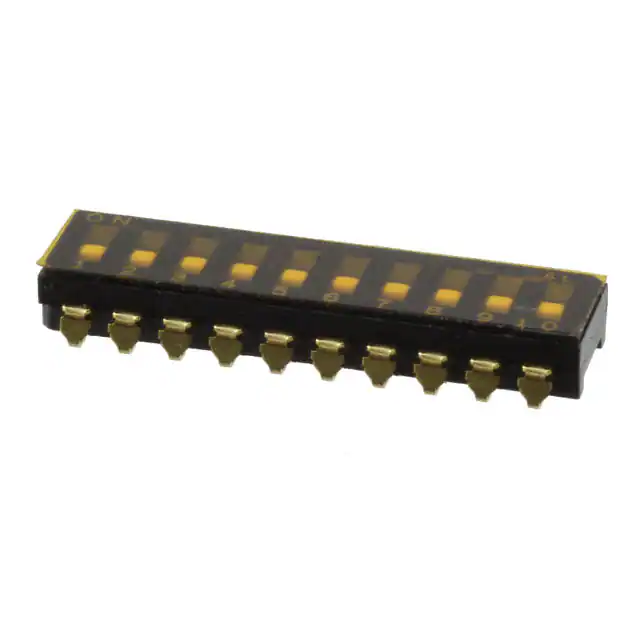

CFS-1000TASWITCH SLIDE DIP SPST 0.1A 6V |
4,275 |
|
规格书 |
CFS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADE10SSWITCH SLIDE DIP SPST 0.1A 24V |
2,056 |
|
规格书 |
ADE | Tube | Obsolete | SPST | 10 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
