购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

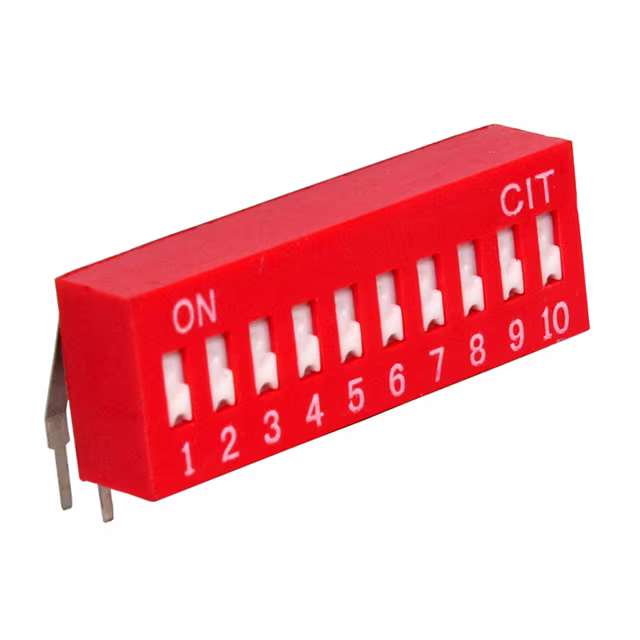

KR10RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,919 |
|
规格书 |
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
206-216SSWITCH SLIDE DIP DPST 0.05A 24V |
3,974 |
|
规格书 |
206 | Tube | Active | DPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
KAS1110ESWITCH SLIDE DIP SPST 0.025A 24V |
3,115 |
|
规格书 |
KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KE06RXGRSWITCH SLIDE DIP SPST 0.025A 24V |
2,651 |
|
规格书 |
KE | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CFP-0211TBSWITCH PIANO DIP SPST 0.1A 6V |
2,912 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0202TBSWITCH PIANO DIP SPST 0.1A 6V |
1,606 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0201TBSWITCH PIANO DIP SPST 0.1A 6V |
2,297 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0212TBSWITCH PIANO DIP SPST 0.1A 6V |
1,666 |
|
- |
CFP | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAR10LGGRSWITCH PIANO DIP SPST 0.025A 24V |
4,441 |
|
规格书 |
KAR | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

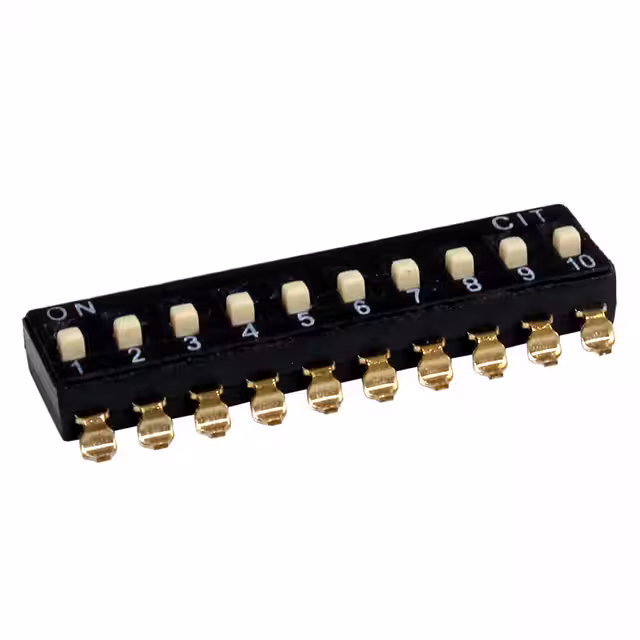

KJ10EXTSWITCH SLIDE DIP SPST 0.025A 24V |
4,205 |
|
规格书 |
KJ | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADP02SSWITCH PIANO DIP SPST 0.025A 24V |
2,701 |
|
规格书 |
ADP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
193-10MSSWITCH PIANO DIP SPST 0.05A 24V |
3,894 |
|
规格书 |
193 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
193-10MSNSWITCH PIANO DIP SPST 0.05A 24V |
2,368 |
|
规格书 |
193 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
GDS08STRSWITCH SLIDE DIP SPST 0.025A 24V |
3,157 |
|
规格书 |
GDS | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
GDS04STRSWITCH SLIDE DIP SPST 0.025A 24V |
3,682 |
|
规格书 |
GDS | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
NDA04TVDIP SWITCH DA RIGHT ANGLE |
3,939 |
|
规格书 |
NDA | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|

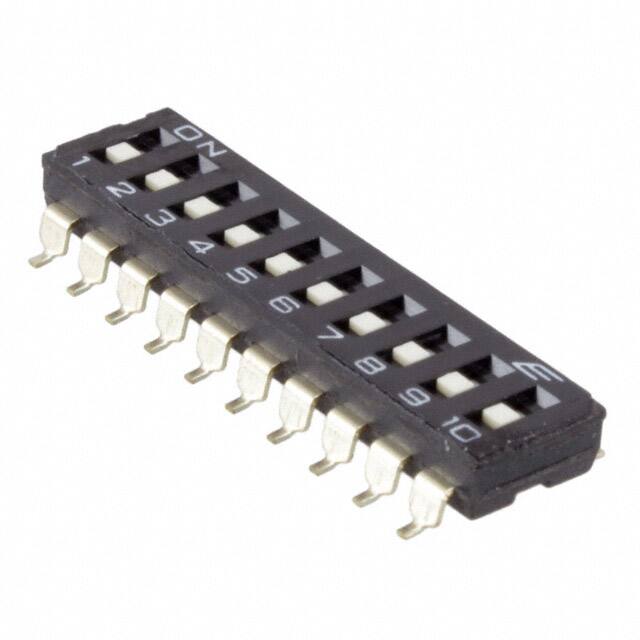

KAE10TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,649 |
|
规格书 |
KAE | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

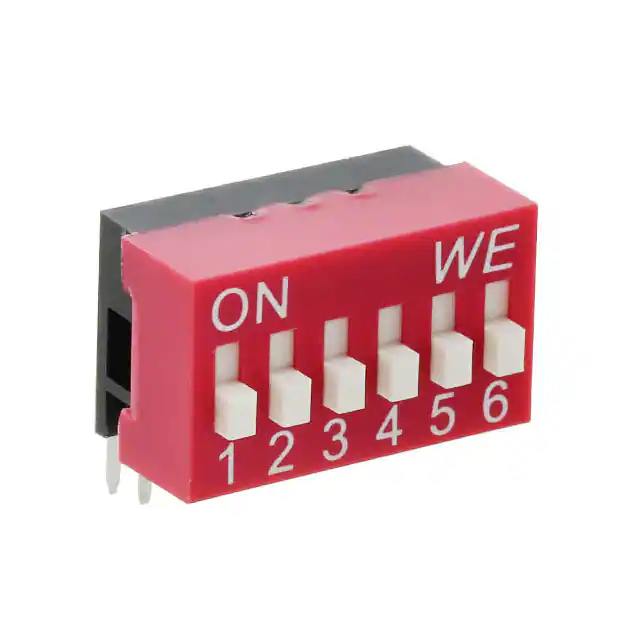

418217270906SWITCH SLIDE DIP SPST 0.025A 24V |
1,430 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

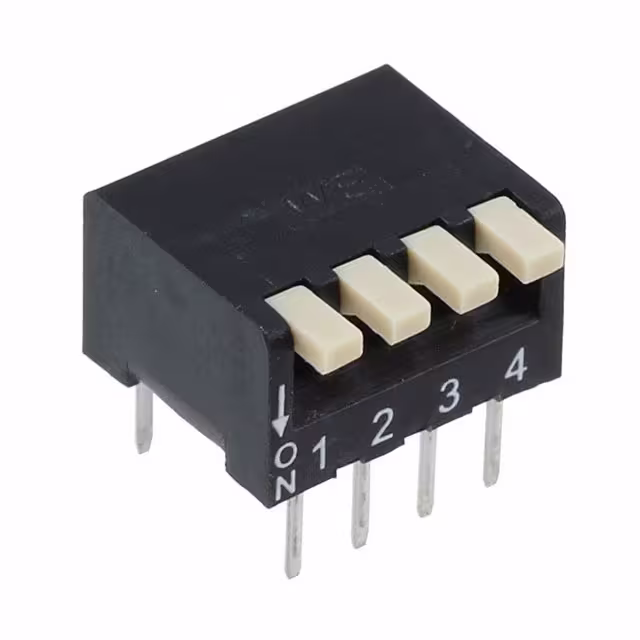

418317270904SWITCH PIANO DIP SPST 0.025A 24V |
3,205 |
|
- |
WS-DITU | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.272" (6.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

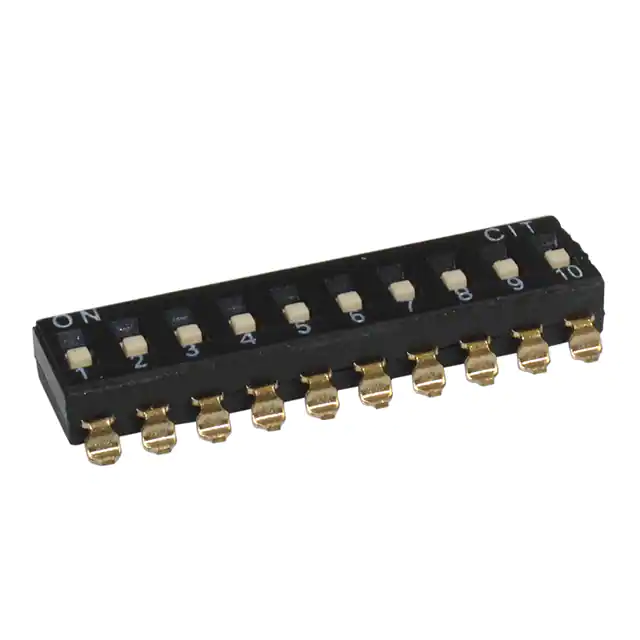

KJ10RXTSWITCH SLIDE DIP SPST 0.025A 24V |
2,734 |
|
规格书 |
KJ | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
