购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-123RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
4,203 |
|
规格书 |
206RA | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
CS-32-12ZETASWITCH ROTARY DIP SPDT 0.1A 16V |
1,759 |
|
规格书 |
CS-32 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.079" (2.00mm) | Surface Mount | J Lead | - | Yes | - | -40°C ~ 85°C |
|

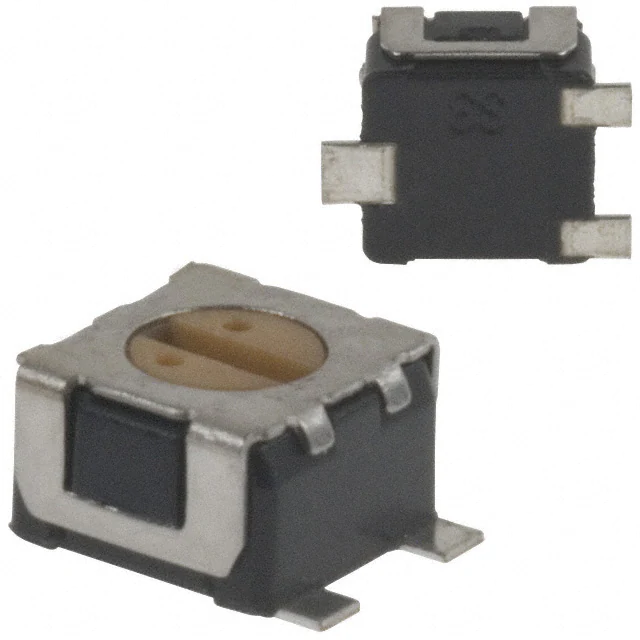

CS-32-12ZETBSWITCH ROTARY DIP SPDT 0.1A 16V |
3,188 |
|
规格书 |
CS-32 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.079" (2.00mm) | Surface Mount | Gull Wing | - | Yes | - | -40°C ~ 85°C |
|
|
CS-32-12ZEASWITCH ROTARY DIP SPDT 0.1A 16V |
1,664 |
|
规格书 |
CS-32 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.079" (2.00mm) | Surface Mount | J Lead | - | Yes | - | -40°C ~ 85°C |
|

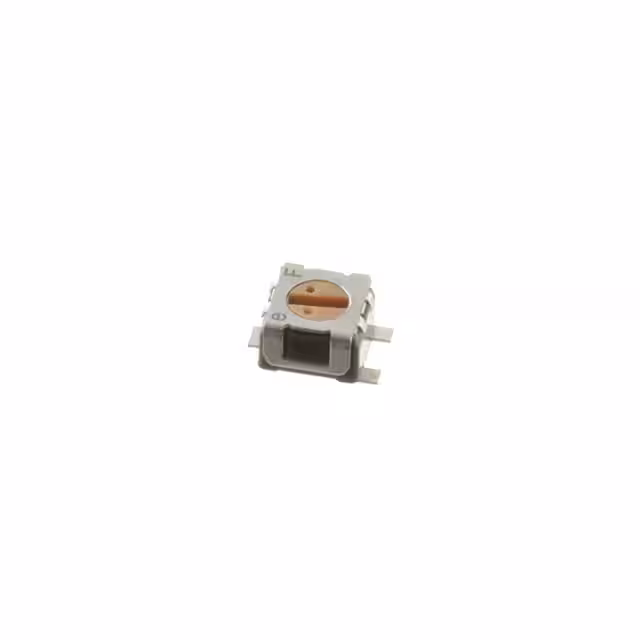

CS-32-12ZEBSWITCH ROTARY DIP SPDT 0.1A 16V |
1,758 |
|
规格书 |
CS-32 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.079" (2.00mm) | Surface Mount | Gull Wing | - | Yes | - | -40°C ~ 85°C |
|
DS02-254-2L-08BESWITCH PIANO DIP SPST 0.025A 24V |
2,798 |
|
规格书 |
DS02-254 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ADPA02SWITCH PIANO DIP SPST 0.025A 24V |
3,714 |
|
规格书 |
ADPA | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
BPA01RBSWITCH PIANO DIP SPST 0.1A 5V |
1,177 |
|
规格书 |
BPA | Tube | Active | SPST | 1 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
NDS05VDIP SWITCH ND STANDARD |
1,746 |
|
规格书 |
NDS | Bulk | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDSR04TVDIP SWITCH ND STANDARD |
4,196 |
|
规格书 |
NDS | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
NDS04TVDIP SWITCH ND STANDARD |
2,745 |
|
规格书 |
NDS | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
NDIR04STSWITCH SLIDE DIP SPST 0.025A 24V |
4,137 |
|
规格书 |
NDI | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
204-122SSWITCH SLIDE DIP SPDT 0.05A 24V |
3,449 |
|
规格书 |
204 | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
CS-32-12ZECSWITCH ROTARY DIP SPDT 0.1A 16V |
3,837 |
|
- |
CS-32 | Bulk | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | - | - | 0.079" (2.00mm) | Through Hole | PC Pin | - | Yes | - | -40°C ~ 85°C |
|
218-10LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,839 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-10LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
2,681 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

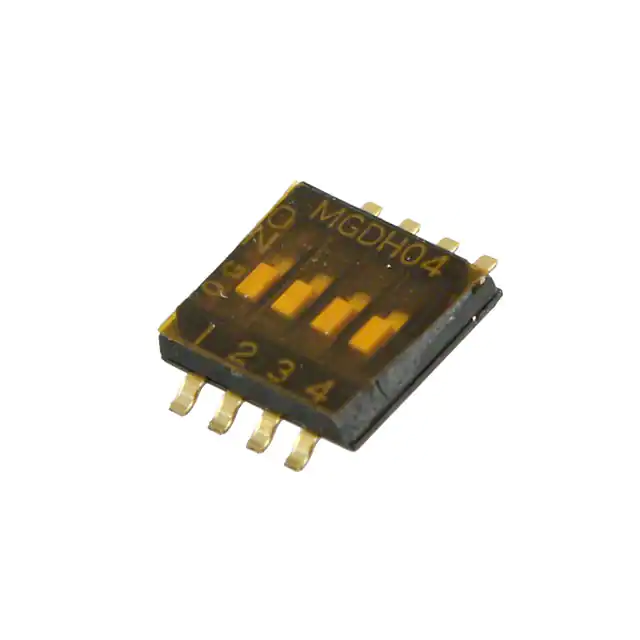

1825140-1SWITCH SLIDE DIP SPST 0.025A 24V |
4,891 |
|
规格书 |
MGDH | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.067" (1.70mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Tape Seal | -30°C ~ 85°C |
|
|
KR09ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,413 |
|
规格书 |
KR | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

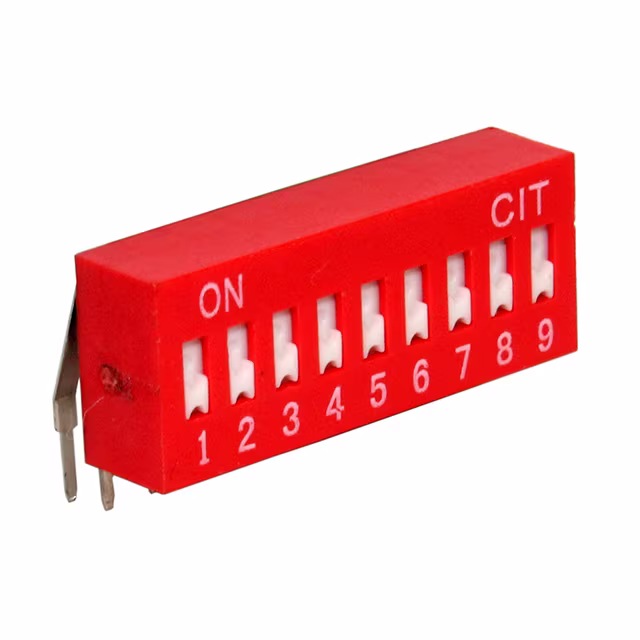

KR09RTSWITCH SLIDE DIP SPST 0.025A 24V |
1,392 |
|
规格书 |
KR | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
CFS-0702TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,722 |
|
- |
CFS | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
