购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP12RTSWITCH PIANO DIP SPST 0.025A 24V |
3,023 |
|
规格书 |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP12ETSWITCH PIANO DIP SPST 0.025A 24V |
3,598 |
|
规格书 |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KAE10LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,921 |
|
规格书 |
KAE | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
218-10LPSTJSWITCH SLIDE DIP SPST 0.025A 24V |
3,814 |
|
规格书 |
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

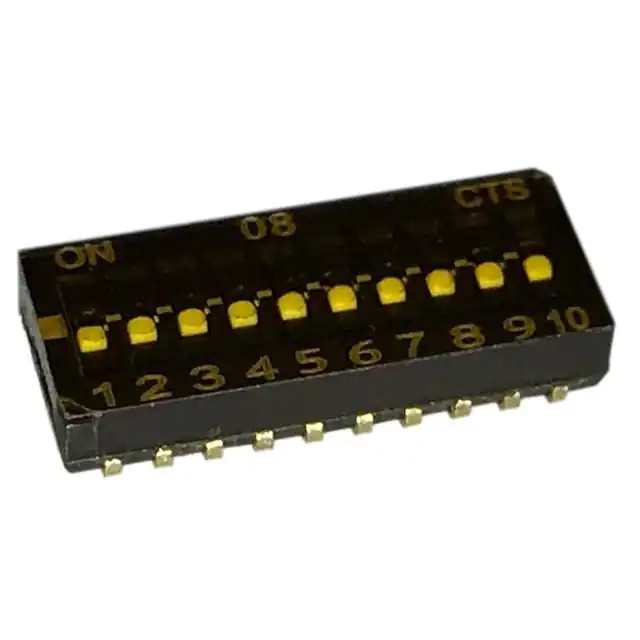

218-10LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V |
2,305 |
|
规格书 |
218 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

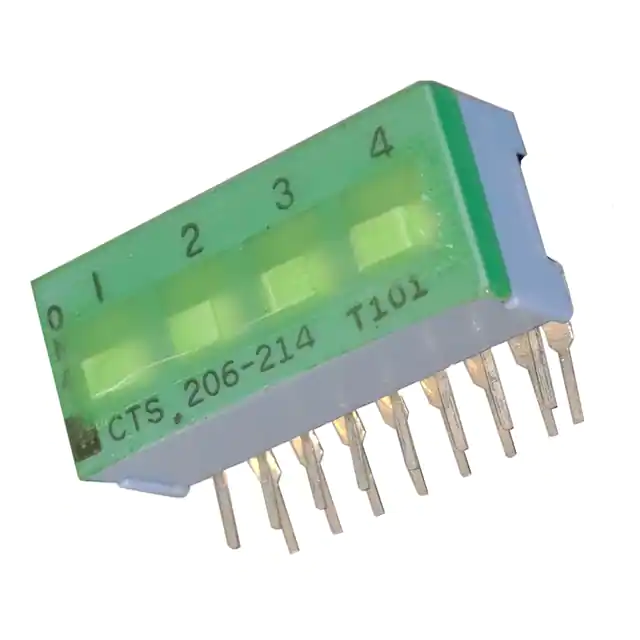

206-214RASTSWITCH SLIDE DIP DPST 0.05A 24V |
3,085 |
|
规格书 |
206RA | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DS02C-254-2L-12BESWITCH PIANO DIP SPST 0.025A 24V |
3,510 |
|
规格书 |
DS02-254 | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
20412STRSWITCH SLIDE DIP SPST 0.05A 24V |
3,298 |
|
规格书 |
204 | Tape & Reel (TR) | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 85°C |
|
|
204-12LPSTRSWITCH SLIDE DIP SPST 0.05A 24V |
4,957 |
|
规格书 |
204 | Tape & Reel (TR) | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
194-12MSSWITCH PIANO DIP SPST 0.05A 24V |
1,892 |
|
规格书 |
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
194-12MSNSWITCH PIANO DIP SPST 0.05A 24V |
1,591 |
|
规格书 |
194 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
ADF04SASWITCH SLIDE DIP SPST 0.025A 24V |
1,277 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1571999-4SWITCH PIANO DIP SPST 0.025A 24V |
4,615 |
|
规格书 |
ADP | Bulk | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1571999-9SWITCH PIANO DIP SPST 0.025A 24V |
2,242 |
|
规格书 |
ADP | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
206-124RASSWITCH SLIDE DIP SPDT 0.05A 24V |
4,367 |
|
规格书 |
206RA | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
ADPA07SWITCH PIANO DIP SPST 0.025A 24V |
2,110 |
|
规格书 |
ADPA | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADF05SWITCH SLIDE DIP SPST 0.025A 24V |
4,451 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
2-1825058-0SWITCH STANDARD DIP SPST |
2,923 |
|
规格书 |
ADE | Tape & Reel (TR) | Active | SPST | 8 | - | - | Standard | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
435668-3SWITCH ROCKER DIP SPST |
4,262 |
|
规格书 |
7100 | Tube | Active | SPST | 4 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
|
KR10ETSWITCH SLIDE DIP SPST 0.025A 24V |
3,541 |
|
规格书 |
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
