购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6SN-9102-R100SWITCH SLIDE DIP SPST 0.025A 24V |
100 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6E-7104-NSWITCH SLIDE DIP SPST 0.025A 24V |
2,274 |
|
规格书 |
A6E-N | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
76RSB07STSWITCH ROCKER DIP SPST 0.15A 30V |
2,263 |
|
规格书 |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
A6SN-9101SWITCH SLIDE DIP SPST 0.025A 24V |
1,790 |
|
规格书 |
A6SN | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
90B10SLTSWITCH SLIDE DIP SPST 0.025A 24V |
3,798 |
|
规格书 |
90B | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
|
78RB12TSWITCH SLIDE DIP SPST 0.15A 30V |
1,798 |
|
规格书 |
78 | Bulk | Active | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
A6HF-0102-R100SWITCH SLIDE DIP SPST 0.025A 24V |
2,231 |
|
规格书 |
A6HF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
76PGB04STSWITCH PIANO DIP SPST 0.15A 30V |
3,235 |
|
规格书 |
76 | Tube | Obsolete | SPST | 4 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SN-9104SWITCH SLIDE DIP SPST 0.025A 24V |
2,982 |
|
规格书 |
A6SN | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
76RSB10SLTSWITCH ROCKER DIP SPST 0.15A 30V |
4,597 |
|
规格书 |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
|
|
78K0278K02 |
4,368 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65302L254SW ROTARY DIP BCD COMP 0.15A 24V |
4,591 |
|
规格书 |
PT65 | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
78B03SRATSWITCH SLIDE DIP SPST 0.15A 30V |
4,165 |
|
规格书 |
78 | Tube | Active | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
FR01FC10HSW ROTARY DIP BCD COMP 0.1A 5V |
2,054 |
|
规格书 |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
78HF03GWTSWITCH SLIDE DIP DPST 0.15A 30V |
4,775 |
|
规格书 |
78H | Bulk | Active | DPST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

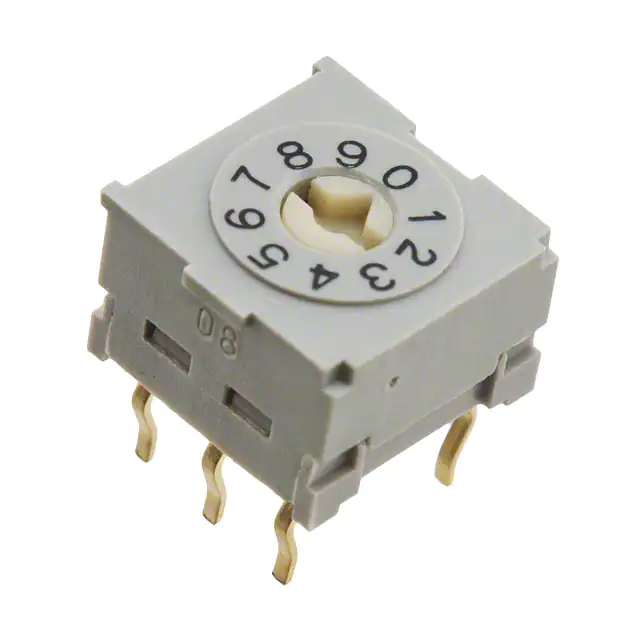

NDFR10PSWITCH ROTARY DIP BCD 0.1A 5V |
4,508 |
|
规格书 |
ND | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.205" (5.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
|
P60A503SWITCH ROTARY DIP HEX 0.15A 24V |
4,715 |
|
- |
P60A | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
94HEB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
4,248 |
|
规格书 |
94H | Bulk | Active | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
JS0408FP4SWITCH SLIDE DIP SPST 0.025A 24V |
2,999 |
|
规格书 |
JS | Bulk | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
78B09RATSWITCH SLIDE DIP SPST 0.15A 30V |
2,098 |
|
规格书 |
78 | Bulk | Active | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
