购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
90HBJ03PSWITCH SLIDE DIP SPST 0.025A 24V |
4,867 |
|
规格书 |
90HB | Bulk | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
35-964SWITCH SLIDE DIP SPST 0.1A 5V |
4,570 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | - | - | - | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|

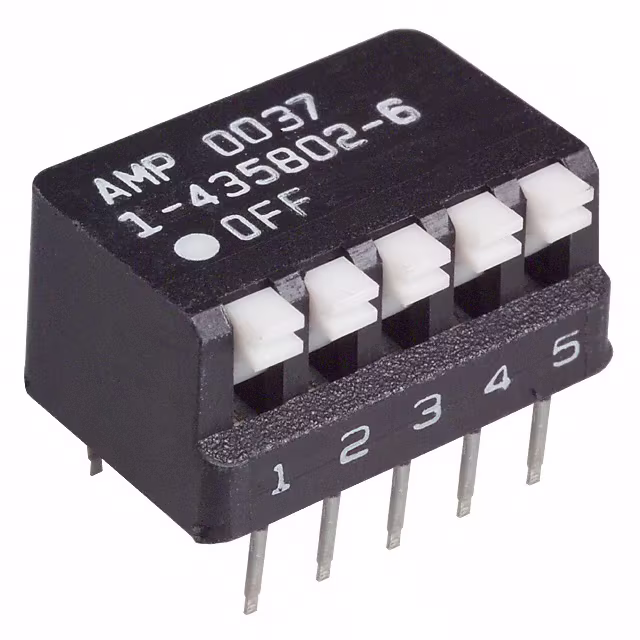

1-435802-6SWITCH PIANO DIP SPST 0.025A 24V |
3,989 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
A6TR-6101SWITCH PIANO DIP SPST 0.025A 24V |
4,345 |
|
规格书 |
A6TR | Bulk | Active | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
BPA02RBSWITCH PIANO DIP SPST 0.1A 5V |
3,918 |
|
规格书 |
BPA | Tube | Active | SPST | 2 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6ER-3101SWITCH PIANO DIP SPST 0.025A 24V |
4,760 |
|
规格书 |
A6ER | Bulk | Obsolete | SPST | 3 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
A6SR-0101-R100SWITCH PIANO DIP SPST 0.025A 24V |
100 |
|
规格书 |
A6SR | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
BPA02SBRSWITCH PIANO DIP SPST 0.1A 5V |
140 |
|
规格书 |
BPA | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6SN-5102-R100SWITCH SLIDE DIP SPST 0.025A 24V |
100 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

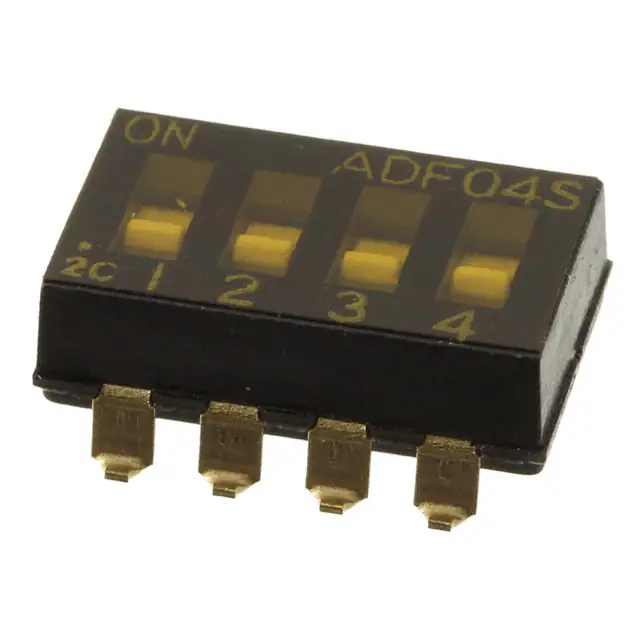

ADF04STTR04SWITCH SLIDE DIP SPST 0.025A 24V |
814 |
|
规格书 |
ADF | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-7102-HSWITCH SLIDE DIP SPST 0.025A 24V |
1,453 |
|
规格书 |
A6S-H | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
76RSB03TSWITCH ROCKER DIP SPST 0.15A 30V |
1,766 |
|
规格书 |
76 | Bulk | Active | SPST | 3 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
JS0104AP4SWITCH SLIDE DIP SPST 0.025A 24V |
1,550 |
|
规格书 |
JS | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.162" (4.11mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
76PRB04TSWITCH PIANO DIP SPST 0.15A 30V |
1,454 |
|
规格书 |
76 | Tube | Active | SPST | 4 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1571999-4SWITCH PIANO DIP SPST 0.025A 24V |
357 |
|
规格书 |
ADP | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.273" (6.93mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
2-5435802-0SWITCH PIANO DIP SPST 0.025A 24V |
3,443 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
GDH10SSWITCH SLIDE DIP SPST 0.025A 24V |
1,618 |
|
- |
GDH | Bulk | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
A6SN-9101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
100 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6S-9102-HSWITCH SLIDE DIP SPST 0.025A 24V |
2,730 |
|
规格书 |
A6S-H | Bulk | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
CHS-08MASWITCH SLIDE DIP SPST 0.1A 6V |
1,869 |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
