购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAG02TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,166 |
|
规格书 |
KAG | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|

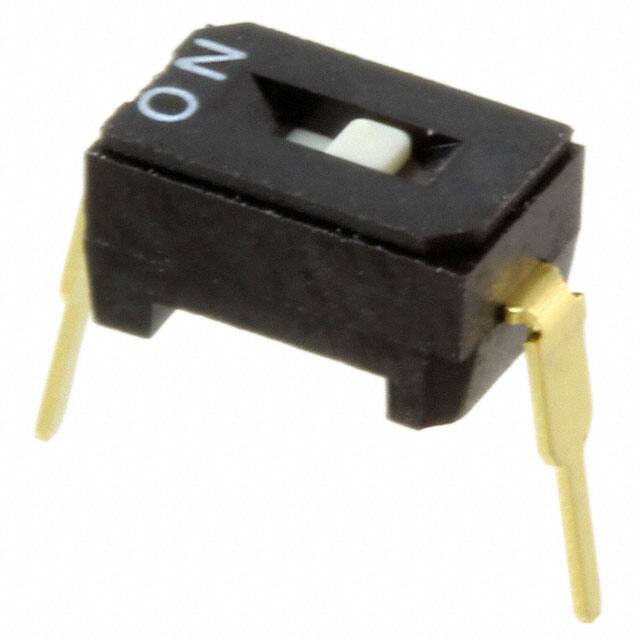

CFS-0101MCSWITCH SLIDE DIP SPST 0.1A 6V |
4,837 |
|
规格书 |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAG08TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
800 |
|
规格书 |
KAG | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|
CFS-0502MASWITCH SLIDE DIP SPST 0.1A 6V |
4,308 |
|
规格书 |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0601MASWITCH SLIDE DIP SPST 0.1A 6V |
1,414 |
|
规格书 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DRS 61116SWITCH ROTARY HEXADECIMAL INV |
1,895 |
|
规格书 |
DRS | Tube | Active | Hexadecimal Complement | 16 | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
SC-1010SWITCH ROTARY DIP HEX 0.1A 5V |
3,160 |
|
规格书 |
SC | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DHP 604DUAL-IN-LINE SWITCH, HALF-PITCH- |
1,536 |
|
规格书 |
DHP 600 | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
|
DRS 3016SWITCH ROTARY HEXADECIMAL |
3,232 |
|
规格书 |
DRS | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
P36SMT 103SWITCH ROTARY DIP HEXADECIMAL 1 |
2,082 |
|
规格书 |
P36SMT | Tube | Active | Hexadecimal | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
|
DRR 60016SWITCH ROTARY HEXADECIMAL |
3,723 |
|
规格书 |
DRR | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DRS 60016SWITCH ROTARY HEXADECIMAL |
3,372 |
|
规格书 |
DRS | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DRS 61016SWITCH ROTARY HEXADECIMAL |
4,690 |
|
规格书 |
DRS | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DRS 60010SWITCH ROTARY BCD |
4,333 |
|
规格书 |
DRS | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DRS 60110SWITCH ROTARY BCD INVERSE |
2,596 |
|
规格书 |
DRS | Tube | Active | BCD Complement | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DHP 606DUAL-IN-LINE SWITCH, HALF-PITCH- |
3,703 |
|
规格书 |
DHP 600 | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
|
DHP 608DUAL-IN-LINE SWITCH, HALF-PITCH- |
2,376 |
|
规格书 |
DHP 600 | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
|
P36SMT 301SWITCH ROTARY DIP BCD 10POS SPI |
2,982 |
|
- |
P36SMT | Tray | Active | BCD | 10 | - | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -50°C ~ 125°C |
|
JS0208AP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
2,248 |
|
规格书 |
JS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
PT65 101SWITCH ROTARY DIP BCD 10POS ARR |
2,123 |
|
规格书 |
PT65 | Tray | Active | BCD | 10 | 150mA | 42VAC/DC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
