购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
875105744002CAP ALUM POLY 12UF 20% 50V SMD |
1,804 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 50 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 40 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

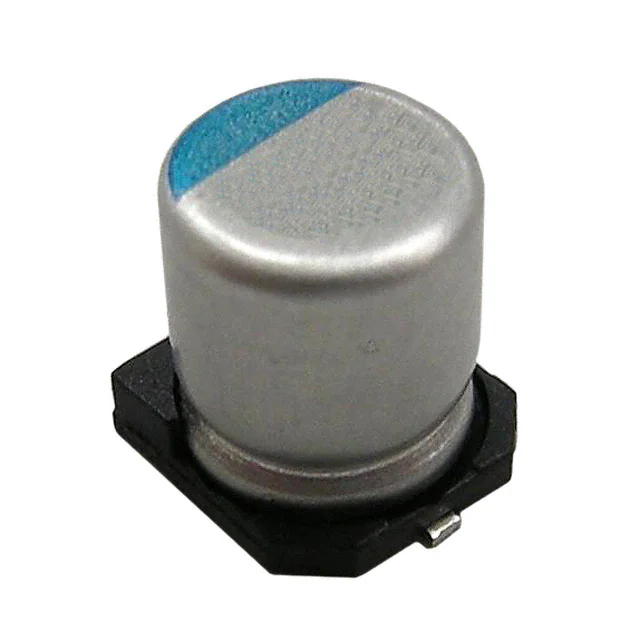

APXN100ARA561MJ80GCAP ALUM POLY 560UF 20% 10V SMD |
1,231 |
|
规格书 |
NPCAP™-PXN | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 10 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RSA0E561MCN1GSCAP ALUM POLY 560UF 20% 2.5V SMD |
1,031 |
|
规格书 |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RNS1C680MDN1KXCAP ALUM POLY 68UF 20% 16V TH |
1,000 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.567" (14.40mm) | - | Through Hole |
|

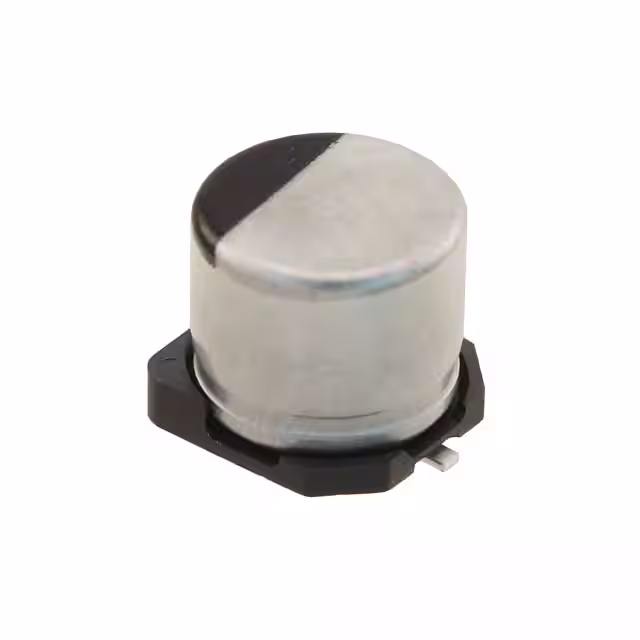

EEH-ZC1V330PCAP ALUM HYBRID 33UF 20% 35V SMD |
765 |
|
规格书 |
ZC | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

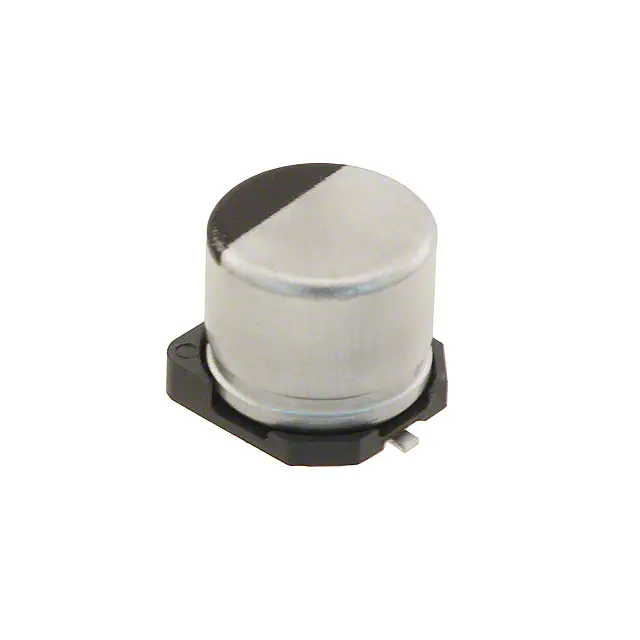

EEH-ZA1E470PCAP ALUM HYBRID 47UF 20% 25V SMD |
632 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 25 V | 50mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
20SEQP100MCAP ALUM POLY 100UF 20% 20V TH |
466 |
|
规格书 |
OS-CON™, SEQP | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 24mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 166 mA @ 120 Hz | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RNS1E150MDS1CAP ALUM POLY 15UF 20% 25V TH |
110 |
|
规格书 |
FPCAP, RNS | Bulk | Active | Polymer | 15 µF | ±20% | 25 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
EEF-LX0E471RCAP ALUM POLY 470UF 20% 2.5V SMD |
57,719 |
|
规格书 |
SP-Cap LX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

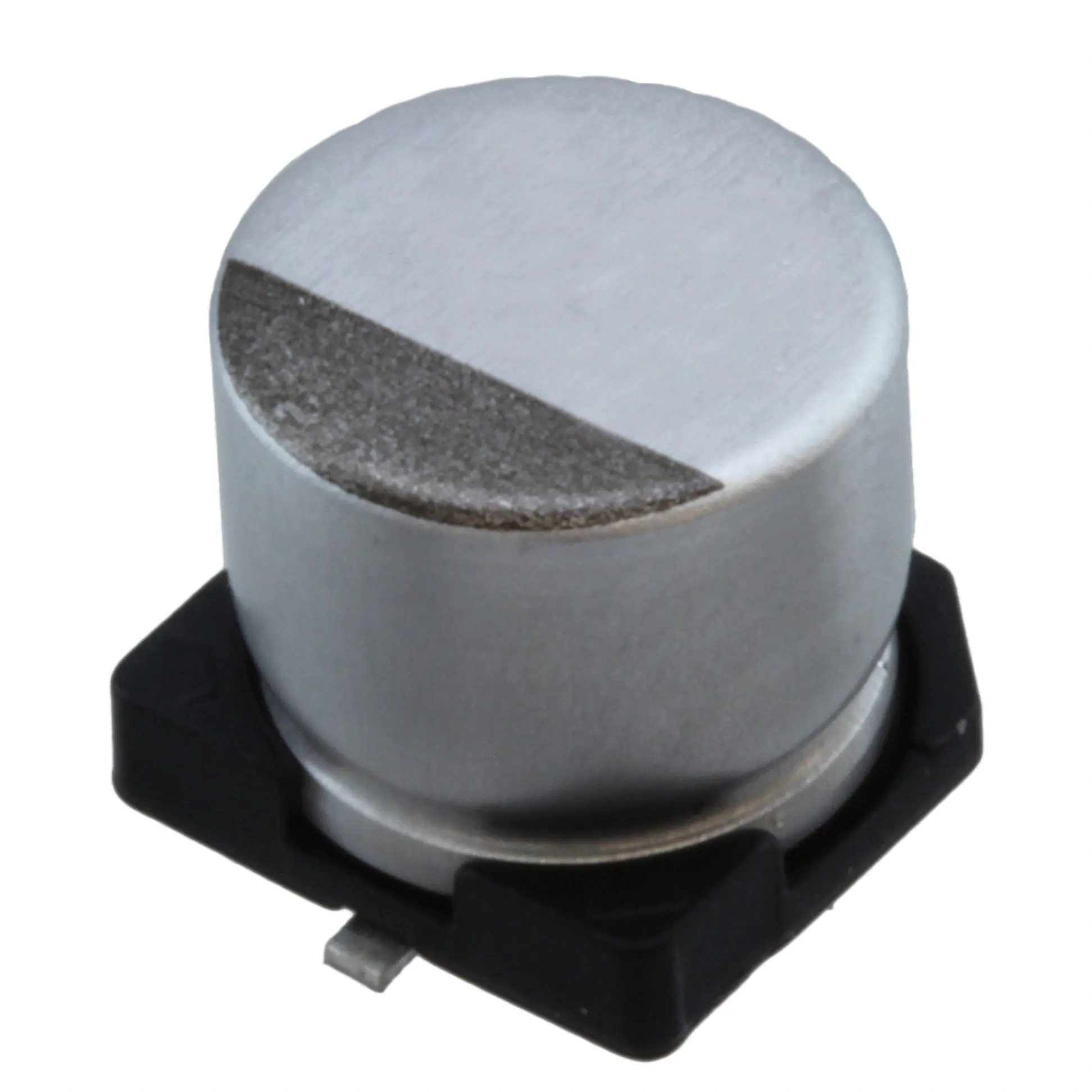

HHXB350ARA470MF61GCAP ALUM HYBRID 47UF 20% 35V SMD |
9,943 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A768KS187M1VLAE024CAP ALUM POLY 180UF 20% 35V SMD |
5,822 |
|
规格书 |
A768 | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RFS0J121MCN1GSCAP ALUM POLY 120UF 20% 6.3V SMD |
3,900 |
|
规格书 |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.224" (5.70mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
GYC1J100MCQ1GSCAP ALUM HYBRID 10UF 20% 63V SMD |
2,927 |
|
规格书 |
GYC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 150 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
870235674004CAP ALUM POLY 68UF 20% 35V TH |
1,392 |
|
规格书 |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
HHXB630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD |
1,315 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
6SVT330MCAP ALUM POLY 330UF 20% 6.3V SMD |
1,222 |
|
规格书 |
OS-CON™, SVT | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 169.5 mA @ 120 Hz | 3.39 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.256" (6.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXD500ARA330MHA0GCAP ALUM HYBRID 33UF 20% 50V SMD |
1,150 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 126 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF1E6R8MCL2CAP ALUM POLY 6.8UF 20% 25V TH |
596 |
|
规格书 |
PLF | Bulk | Active | Polymer | 6.8 µF | ±20% | 25 V | 80mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
PLF1C101MDL4CAP ALUM POLY 100UF 20% 16V TH |
514 |
|
规格书 |
PLF | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
A755KS157M1DAAE020CAP ALUM POLY 150UF 20% 20V TH |
203 |
|
规格书 |
A755 | Bulk | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 221 mA @ 120 Hz | 4.42 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
