购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXG200ARA470MF45GCAP ALUM POLY 47UF 20% 20V SMD |
1,398 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 42mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.185" (4.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

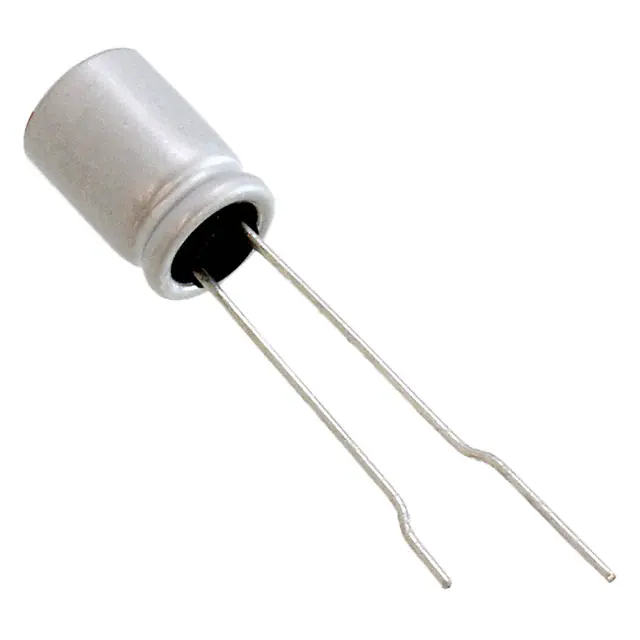

RNU0J221MDS1JXCAP ALUM POLY 220UF 20% 6.3V TH |
1,168 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 320 mA @ 120 Hz | 3.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
875115150005CAP ALUM POLY 470UF 20% 6.3V SMD |
3,608 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXD500ARA150MF80GCAP ALUM HYBRID 15UF 20% 50V SMD |
2,679 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 15 µF | ±20% | 50 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 112 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
870055674003CAP ALUM POLY 33UF 20% 35V TH |
2,387 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
HHXD630ARA100MF80GCAP ALUM HYBRID 10UF 20% 63V SMD |
5,047 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 80mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 45 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RNU1C181MDN1KXCAP ALUM POLY 180UF 20% 16V TH |
1,012 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 180 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RPS1A470MCN1GSCAP ALUM POLY 47UF 20% 10V SMD |
17,252 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RS80E821MDN1JTCAP ALUM POLY 820UF 20% 2.5V TH |
5,382 |
|
规格书 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
RPS1A121MCN1GSCAP ALUM POLY 120UF 20% 10V SMD |
2,334 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RL80J681MDN1CAP ALUM POLY 680UF 20% 6.3V TH |
3,564 |
|
规格书 |
FPCAP, RL8 | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
A759MU277M1VAAE022CAP ALUM POLY 270UF 20% 35V TH |
3,431 |
|
规格书 |
A759 | Bulk | Active | Polymer | 270 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 187 mA @ 120 Hz | 3.74 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXJ6R3ARA561MFA0GCAP ALUM POLY 560UF 20% 6.3V SMD |
2,250 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 6.3 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.394" (10.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RSHVK101M1TDE7002ECAP ALUMHYB 100UF 20% 25V SMD |
9,980 |
|
规格书 |
HVK | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 140 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A765KN687M0JLAE012CAP ALUM POLY 680UF 20% 6.3V SMD |
1,732 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
100SXE6R8MCAP ALUM POLY 6.8UF 20% 100V TH |
1,128 |
|
规格书 |
OS-CON™, SXE | Bulk | Active | Polymer | 6.8 µF | ±20% | 100 V | 60mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
A755KS108M0JAAE013CAP ALUM POLY 1000UF 20% 6.3V TH |
4,895 |
|
规格书 |
A755 | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 13mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
A755KS827M1AAAE014CAP ALUM POLY 820UF 20% 10V TH |
3,347 |
|
规格书 |
A755 | Bulk | Active | Polymer | 820 µF | ±20% | 10 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 241 mA @ 120 Hz | 4.82 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A750MV397M1VAAE020CAP ALUM POLY 390UF 20% 35V TH |
2,516 |
|
规格书 |
A750 | Bulk | Active | Polymer | 390 µF | ±20% | 35 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
|

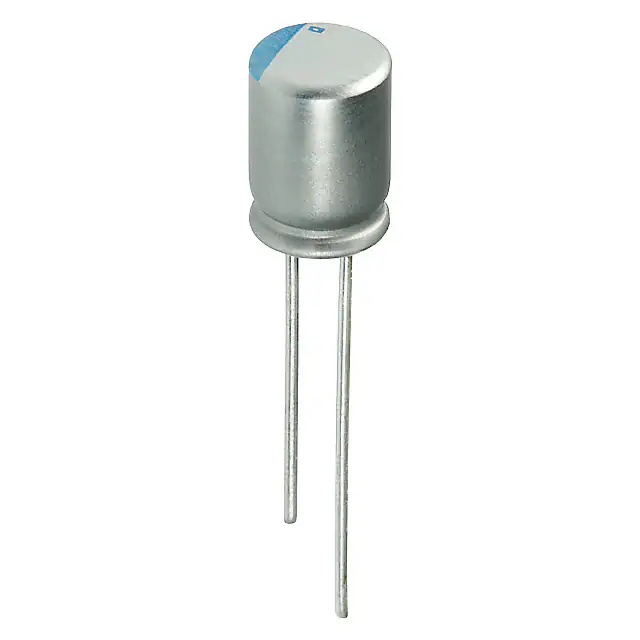

APSA100ELL271MHB5SCAP ALUM POLY 270UF 20% 10V TH |
1,025 |
|
规格书 |
NPCAP™-PSA | Bulk | Active | Polymer | 270 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.71 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
