购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXC250ARA470MF61GCAP ALUM HYBRID 47UF 20% 25V SMD |
5,503 |
|
规格书 |
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A758KK567M0JAAE014CAP ALUM POLY 560UF 20% 6.3V TH |
2,188 |
|
规格书 |
A758 | Bulk | Active | Polymer | 560 µF | ±20% | 6.3 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
4SVP330MCAP ALUM POLY 330UF 20% 4V SMD |
4,179 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128 mA @ 120 Hz | 2.56 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS1D330MDS1JXCAP ALUM POLY 33UF 20% 20V TH |
3,844 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 20 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
APXG160ARA680MF45GCAP ALUM POLY 68UF 20% 16V SMD |
3,343 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 16 V | 40mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.185" (4.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXF6R3ARA331MF80GCAP ALUM POLY 330UF 20% 6.3V SMD |
2,703 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 9mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A759KS477M1AAAE014CAP ALUM POLY 470UF 20% 10V TH |
4,996 |
|
规格书 |
A759 | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 14mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 242.2 mA @ 120 Hz | 4.844 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
16SVPC39MCAP ALUM POLY 39UF 20% 16V SMD |
4,494 |
|
规格书 |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 91 mA @ 120 Hz | 1.82 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
4SEPC560MX+TSSCAP ALUM POLY 560UF 20% 4V TH |
2,347 |
|
规格书 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
A759KR187M1VAAE024CAP ALUM POLY 180UF 20% 35V TH |
4,223 |
|
规格书 |
A759 | Bulk | Active | Polymer | 180 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
A765KN567M0JLAE012CAP ALUM POLY 560UF 20% 6.3V SMD |
3,204 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
A758KK687M0GAAE016CAP ALUM POLY 680UF 20% 4V TH |
4,520 |
|
规格书 |
A758 | Bulk | Active | Polymer | 680 µF | ±20% | 4 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
RL80G821MDN1KXCAP ALUM POLY 820UF 20% 4V TH |
4,403 |
|
规格书 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 820 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
A755KS107M1DAAE020CAP ALUM POLY 100UF 20% 20V TH |
2,635 |
|
规格书 |
A755 | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 221 mA @ 120 Hz | 4.42 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RSS0J331MCN1GSCAP ALUM POLY 330UF 20% 6.3V SMD |
5,477 |
|
规格书 |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
A759MU337M1VAAE022CAP ALUM POLY 330UF 20% 35V TH |
2,498 |
|
规格书 |
A759 | Bulk | Active | Polymer | 330 µF | ±20% | 35 V | 22mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 187 mA @ 120 Hz | 3.74 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
A780MS567M1ELAS022CAP ALUMHYB 560UF 20% 25V SMD |
2,241 |
|
规格书 |
A780 | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 840 mA @ 100 Hz | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

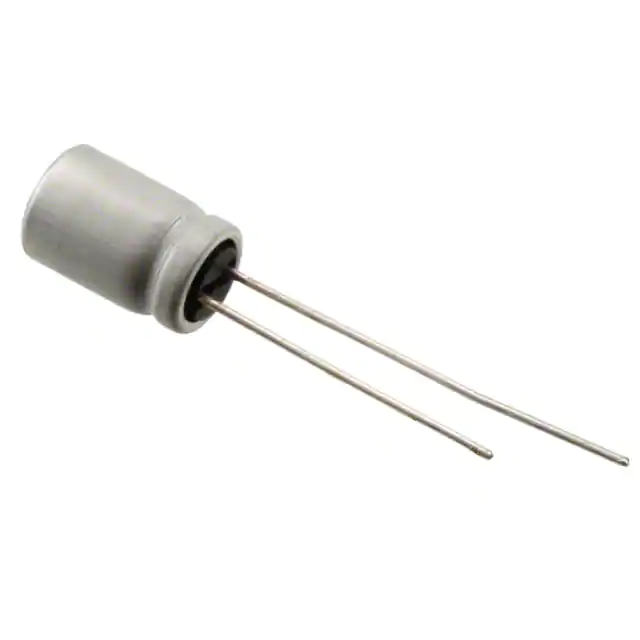

PLF1A680MDL4TDCAP ALUM POLY 68UF 20% 10V TH |
6,129 |
|
规格书 |
PLF | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
HHXD500ARA330MF80GCAP ALUM HYBRID 33UF 20% 50V SMD |
4,957 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 112 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
A758KK157M1CAAE015CAP ALUM POLY 150UF 20% 16V TH |
4,641 |
|
规格书 |
A758 | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
