购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GYA1V680MCQ1GSCAP ALUM HYBRID 68UF 20% 35V SMD |
1,600 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEH-ZA1V270PCAP ALUM HYBRID 27UF 20% 35V SMD |
1,504 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 27 µF | ±20% | 35 V | 60mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APS-100ELL271MHB5SCAP ALUM POLY 270UF 20% 10V TH |
1,032 |
|
规格书 |
NPCAP™-PS | Bulk | Active | Polymer | 270 µF | ±20% | 10 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.42 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RPA1C390MCN1GSCAP ALUM POLY 39UF 20% 16V SMD |
1,032 |
|
规格书 |
FPCAP, RPA | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
HHXD250ARA151MHA0GCAP ALUMHYB 150UF 20% 25V SMD |
184 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HHXD630ARA330MHA0GCAP ALUM HYBRID 33UF 20% 63V SMD |
5,000 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 112 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
10SVP6R8MCAP ALUM POLY 6.8UF 20% 10V SMD |
2,588 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 10 V | 240mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 33.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
6SEPC560MX+TSSCAP ALUM POLY 560UF 20% 6.3V TH |
2,557 |
|
规格书 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

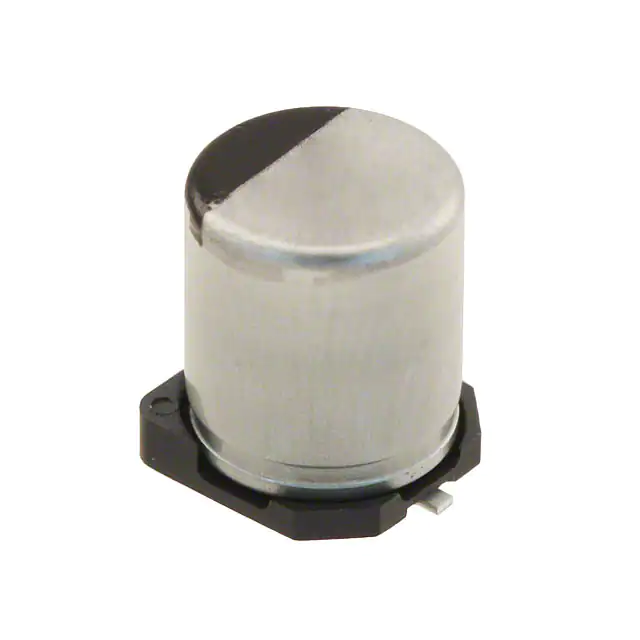

EEH-ZA1E680XPCAP ALUM HYBRID 68UF 20% 25V SMD |
1,558 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 25 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RPS1C390MCN1GSCAP ALUM POLY 39UF 20% 16V SMD |
1,355 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RNU0J102MDN1KXCAP ALUM POLY 1000UF 20% 6.3V TH |
1,340 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
HHXD630ARA470MHA0GCAP ALUM HYBRID 47UF 20% 63V SMD |
1,112 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
GYA1J220MCQ1GSCAP ALUM HYBRID 22UF 20% 63V SMD |
863 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
2SEPC820MXCAP ALUM POLY 820UF 20% 2.5V TH |
213 |
|
规格书 |
OS-CON™, SEPC | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
4SEPC560MXCAP ALUM POLY 560UF 20% 4V TH |
163 |
|
规格书 |
OS-CON™, SEPC | Bulk | Active | Polymer | 560 µF | ±20% | 4 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APXJ200ARA151MF61GCAP ALUM POLY 150UF 20% 20V SMD |
126 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 23mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
16SEQP150MCAP ALUM POLY 150UF 20% 16V TH |
4,404 |
|
规格书 |
OS-CON™, SEQP | Bulk | Active | Polymer | 150 µF | ±20% | 16 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 47.75 mA @ 120 Hz | 955 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
HHXE250ARA101MF80GCAP ALUMHYB 100UF 20% 25V SMD |
3,157 |
|
规格书 |
HXE | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 2.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXD500ARA680MHA0GCAP ALUM HYBRID 68UF 20% 50V SMD |
2,500 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A765MU477M1CLAE016CAP ALUM POLY 470UF 20% 16V SMD |
2,127 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 236 mA @ 120 Hz | 4.72 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
