购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SW470MR06CAP ALUM POLY 470UF 20% 2V SMD Rubycon |
2,381 |
|
- |
PC-CON, SW | Bulk | Obsolete | Polymer | 470 µF | ±20% | 2 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
25PZA100M8X10CAP ALUM POLY 100UF 20% 25V TH Rubycon |
3,642 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 100 µF | ±20% | 25 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|

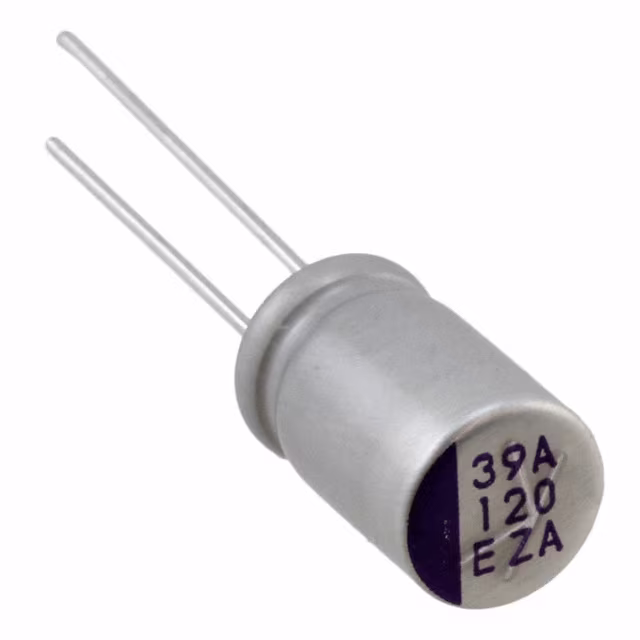

25PZA120M8X12.5CAP ALUM POLY 120UF 20% 25V TH Rubycon |
3,474 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 120 µF | ±20% | 25 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 120 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
25PZA220M10X13CAP ALUM POLY 220UF 20% 25V TH Rubycon |
1,446 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 220 µF | ±20% | 25 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
|

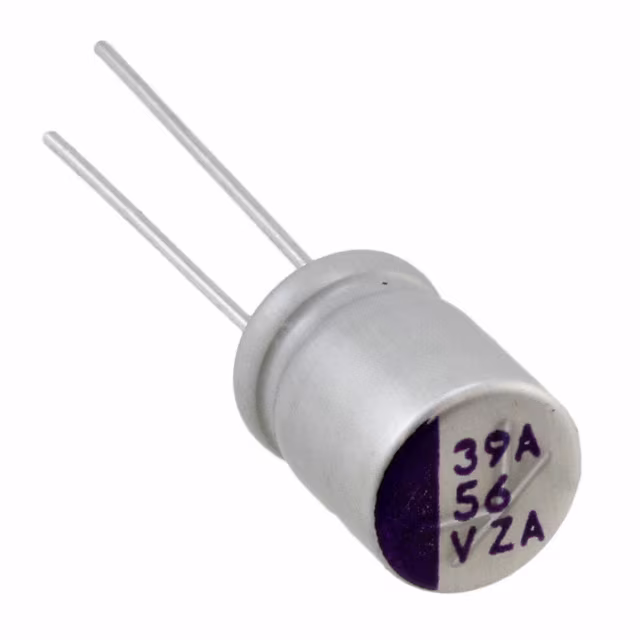

35PZA56M8X10CAP ALUM POLY 56UF 20% 35V TH Rubycon |
3,807 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 56 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|
35PZA150M10X13CAP ALUM POLY 150UF 20% 35V TH Rubycon |
1,698 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 150 µF | ±20% | 35 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
|

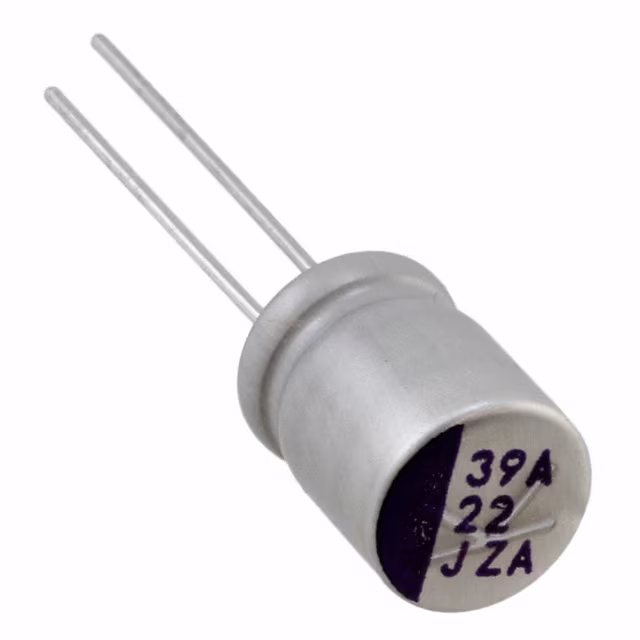

63PZA22M8X10CAP ALUM POLY 22UF 20% 63V TH Rubycon |
4,071 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
|
63PZA27M8X12.5CAP ALUM POLY 27UF 20% 63V TH Rubycon |
2,259 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 27 µF | ±20% | 63 V | 33mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole |
|

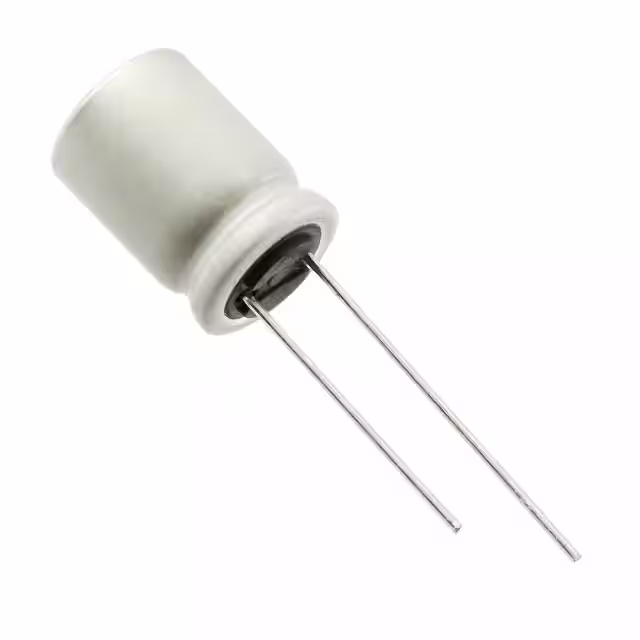

63PZA47M10X13CAP ALUM POLY 47UF 20% 63V TH Rubycon |
2,085 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 47 µF | ±20% | 63 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
|

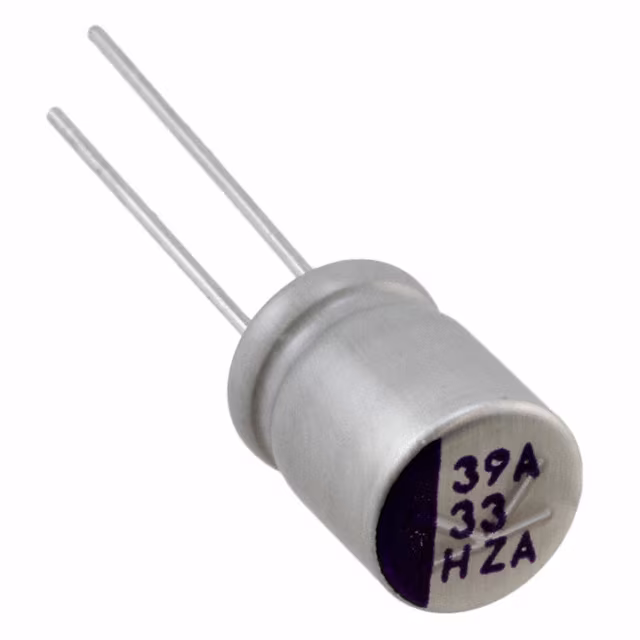

50PZA33M8X10CAP ALUM POLY 33UF 20% 50V TH Rubycon |
2,646 |
|
规格书 |
PZA | Bulk | Obsolete | Polymer | 33 µF | ±20% | 50 V | 32mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | - | Through Hole |
