购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

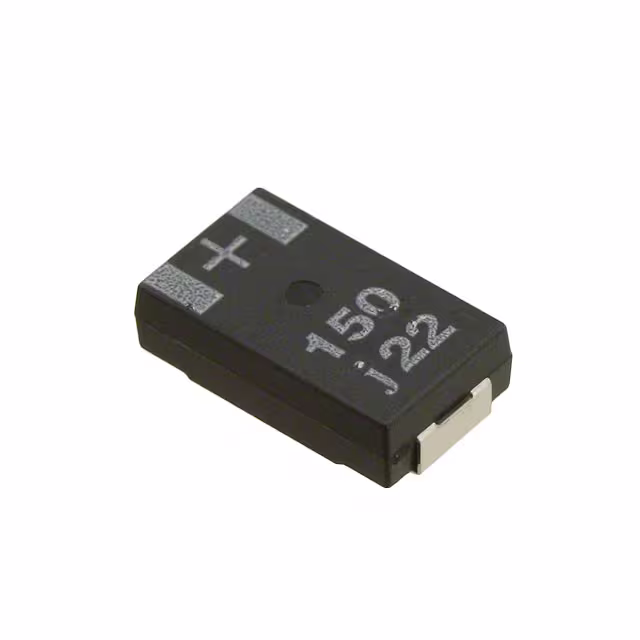

6SWZ150MR09CAP ALUM POLY 150UF 20% 6.3V SMD Rubycon |
1,424 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

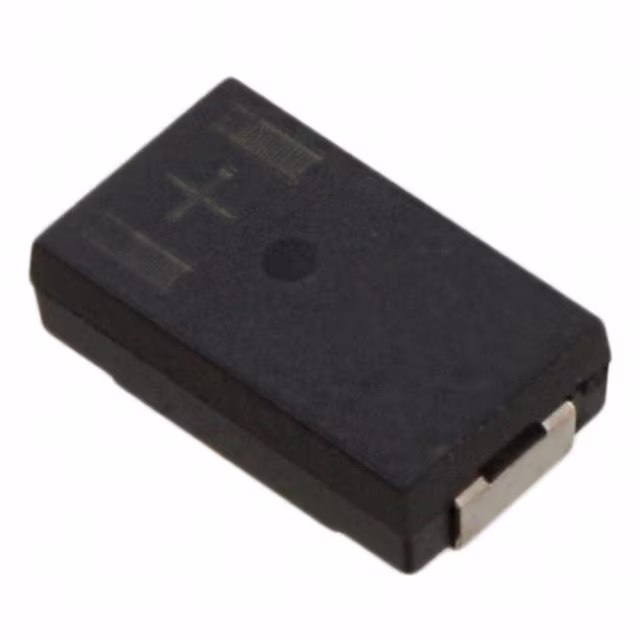

10SWZ47MR25CAP ALUM POLY 47UF 20% 10V SMD Rubycon |
2,382 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SLE82MCAP ALUM POLY 82UF 20% 2.5V SMD Rubycon |
4,876 |
|
规格书 |
PC-CON, SLE | Tape & Reel (TR) | Obsolete | Polymer | 82 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SW220MCAP ALUM POLY 220UF 20% 2.5V SMD Rubycon |
4,233 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
2.5SW270MCAP ALUM POLY 270UF 20% 2.5V SMD Rubycon |
1,539 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SWZ270MR06CAP ALUM POLY 270UF 20% 2.5V SMD Rubycon |
1,994 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

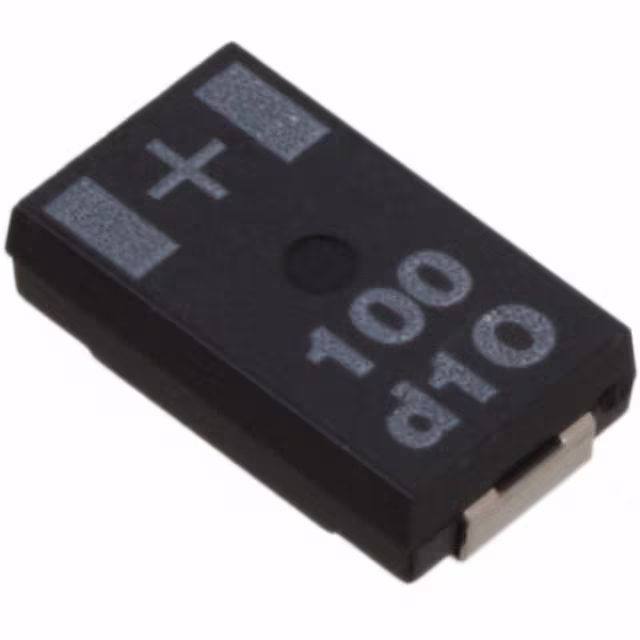

2SXB100MCAP ALUM POLY 100UF 20% 2V SMD Rubycon |
4,353 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
4SXE100MCAP ALUM POLY 100UF 20% 4V SMD Rubycon |
2,784 |
|
规格书 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

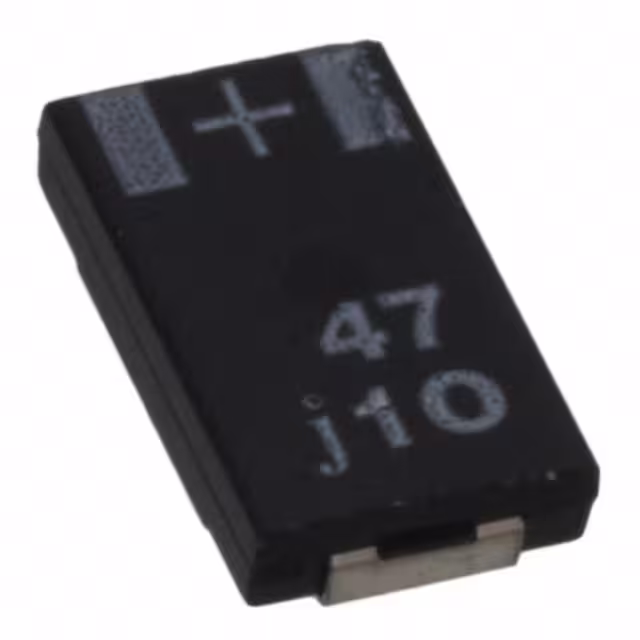

6SLE47MCAP ALUM POLY 47UF 20% 6.3V SMD Rubycon |
3,861 |
|
规格书 |
PC-CON, SLE | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

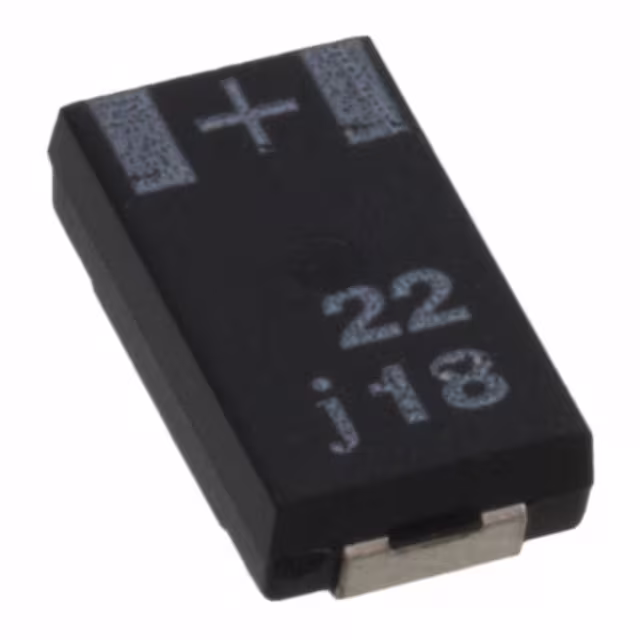

6SXB22MCAP ALUM POLY 22UF 20% 6.3V SMD Rubycon |
1,953 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
