购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2.5SWZ330MR09CAP ALUM POLY 330UF 20% 2.5V SMD Rubycon |
1,653 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

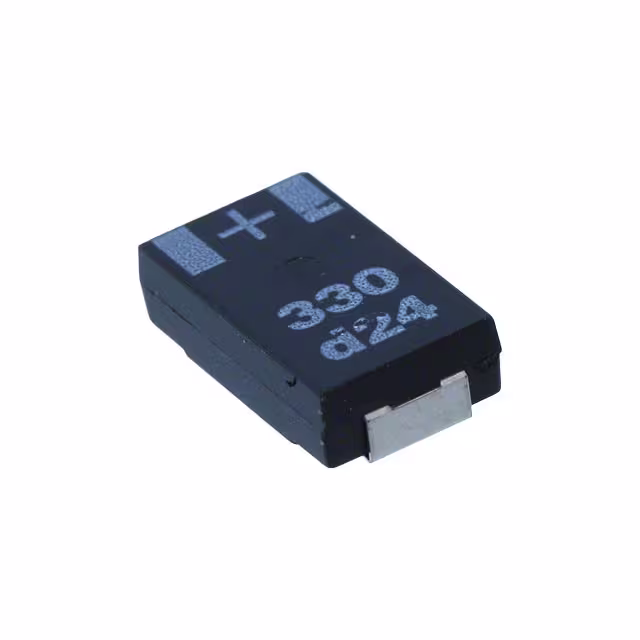

2SWZ330MR05CAP ALUM POLY 330UF 20% 2V SMD Rubycon |
3,391 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
4SW270MCAP ALUM POLY 270UF 20% 4V SMD Rubycon |
2,995 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|

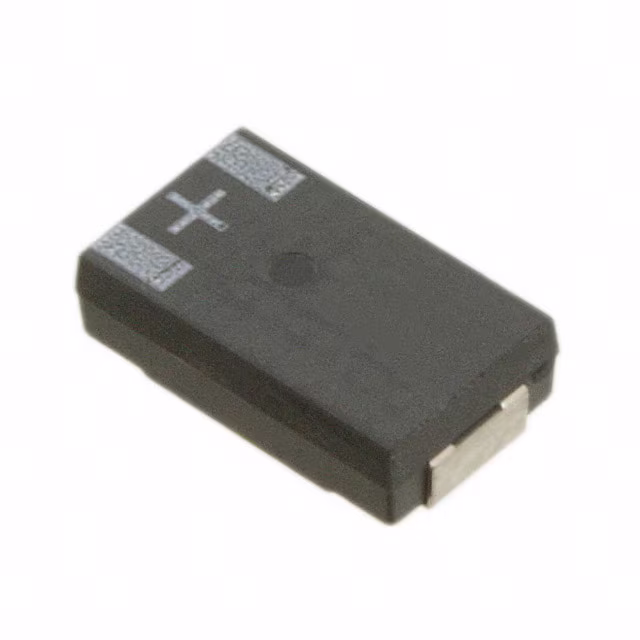

4SWZ220MR09CAP ALUM POLY 220UF 20% 4V SMD Rubycon |
3,805 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SWZ330MR06CAP ALUM POLY 330UF 20% 2.5V SMD Rubycon |
2,256 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SW470MCAP ALUM POLY 470UF 20% 2V SMD Rubycon |
1,753 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

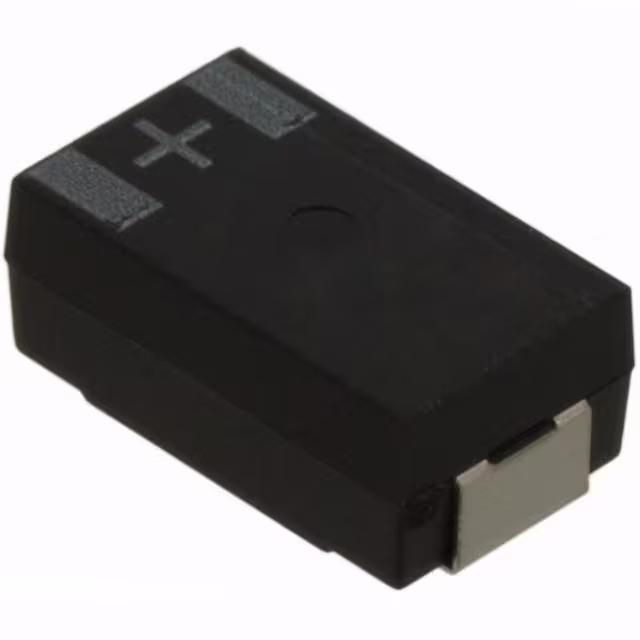

6SW220MCAP ALUM POLY 220UF 20% 6.3V SMD Rubycon |
3,621 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

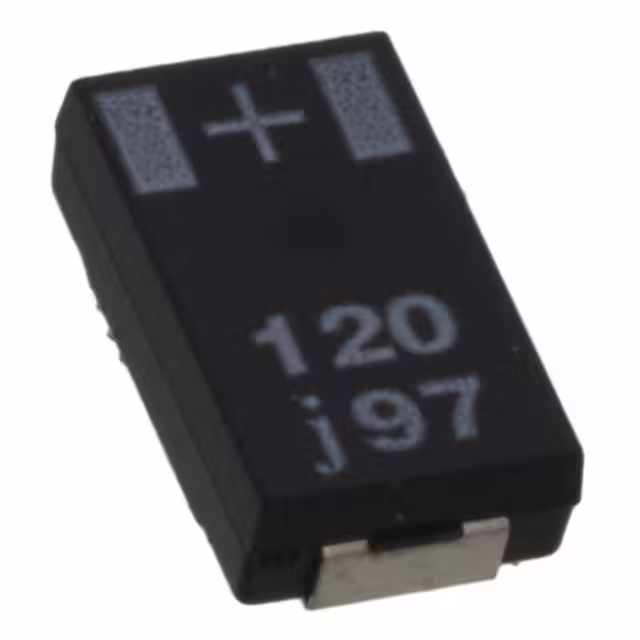

6SWZ120MR09CAP ALUM POLY 120UF 20% 6.3V SMD Rubycon |
3,500 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
6SW180MCAP ALUM POLY 180UF 20% 6.3V SMD Rubycon |
1,105 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
6SWZ150MR15CAP ALUM POLY 150UF 20% 6.3V SMD Rubycon |
2,220 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
