无线充电线圈

型号	库存	价格	数量	规格书	系列	包装	产品状态	功能	类型	电感	容差	直流电阻 (DCR)	品质因数 (Q) @ 频率	电流额定值（安培）	饱和电流 (Isat)	频率 - 自谐振	工作温度	尺寸 / 尺寸
WT202012-15F2-ID TX 1 COIL 2 LYR 6.2UH TDK Corporation	10,954	-	立即询价	规格书	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	6.2µH	±5%	80mOhm	-	-	-	-	-	0.80" Dia x 0.10" H (20.3mm x 2.7mm)
WR202010-18M8-ID RX 1 COIL 2 LYR 11UH TDK Corporation	1,404	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	11µH	±5%	350mOhm	-	-	-	-	-	0.79" Dia x 0.03" H (20.0mm x 0.8mm)
WR303050-15F5-G RX 1 COIL 2 LYR 12.3UH TDK Corporation	236	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	12.3µH	-	410mOhm	-	-	-	-	-	1.18" L x 1.16" W x 0.03" H (30.0mm x 29.6mm x 1.0mm)
WT303012-12F2-ID TX 1 COIL 2 LYR 6.3UH TDK Corporation	2,281	-	立即询价	规格书	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	6.3µH	±5%	90mOhm	-	-	-	-	-	1.18" Dia x 0.08" H (30.0mm x 2.0mm)
760308103202 RX 1 COIL 1 LYR BIFILAR 12UH Würth Elektronik	1,322	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer, Bifilar	12µH	±10%	160mOhm	33 @ 125kHz	2.9A	6A	25MHz	-20°C ~ 105°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm)
760308101214 RX 1 COIL 3 LAYER 26UH 1.1A Würth Elektronik	570	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	1 Coil, 3 Layer	26µH	±10%	520mOhm Max	25 @ 125kHz	1.1A	2A	11MHz	-20°C ~ 105°C	0.75" Dia x 0.03" H (19.0mm x 0.8mm)
760308101220 RX 1 COIL 3 LAYER BIFILAR 12.6UH Würth Elektronik	207	-	立即询价	规格书	WE-WPCC	Box	Active	Receiver	1 Coil, 3 Layer, Bifilar	12.6µH	±10%	340mOhm Max	20 @ 125kHz	1.1A	2.5A	19MHz	-20°C ~ 105°C	0.67" Dia x 0.03" H (17.0mm x 0.8mm)
760308103205 RX 1 COIL 1 LYR BIFILAR 11UH Würth Elektronik	754	-	立即询价	规格书	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer, Bifilar	11µH	±10%	180mOhm	30 @ 125kHz	2.5A	4A	16MHz	-20°C ~ 105°C	1.34" L x 1.04" W x 0.04" H (34.0mm x 26.5mm x 0.9mm)
760308101104 TX 1 COIL 2 LAYER 6.3UH 2.5A Würth Elektronik	573	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	6.8µH	±10%	125mOhm Max	42 @ 125kHz	2.5A	6A	20MHz	-20°C ~ 105°C	0.81" Dia x 0.10" H (20.5mm x 2.6mm)
IWAS3010AZEB130KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	2,668	-	立即询价	规格书	-	Tray	Active	Receiver	1 Coil, 1 Layer	12.9µH	±10%	780mOhm Max	11 @ 100kHz	800mA	-	-	-40°C ~ 85°C	1.18" L x 0.39" W x 0.03" H (30.0mm x 10.0mm x 0.7mm)
WR301025-19M8-G RX 1 COIL 2 LYR 12.8UH TDK Corporation	8,188	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	12.8µH	-	1.27Ohm Max	-	-	-	-	-	-
IWTX50R0DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,874	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C	1.97" Dia x 0.16" H (50.0mm x 4.0mm)

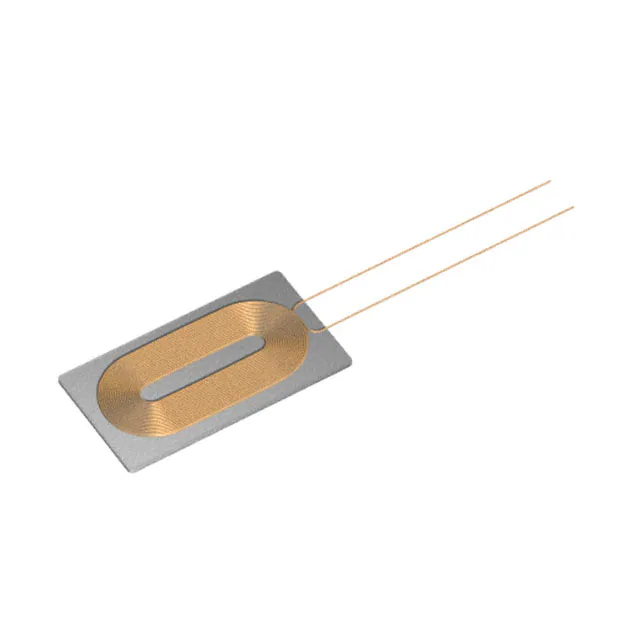

WR221230-36M8-G RX 1 COIL 2 LYR 27.9UH TDK Corporation	939	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	27.9µH	-	1.21Ohm Max	-	-	-	-	-	-
IWTX50R0CZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,440	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	45mOhm Max	120 @ 100kHz	5A	-	-	-40°C ~ 85°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)

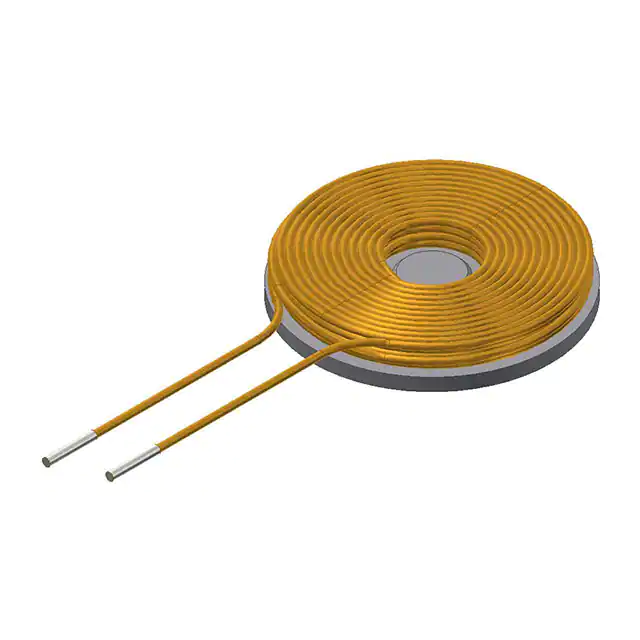

WR151580-48F2-G RX 1 COIL 4 LYR 27.1UH TDK Corporation	636	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 4 Layer	27.1µH	-	500mOhm	-	-	-	-	-	0.59" Dia x 0.10" H (15.0mm x 2.6mm)
IWAS3827ABEB110JF1 IWAS-3827AB-F1 10 5% EB E2 Vishay Dale	1,737	-	立即询价	规格书	-	Tray	Active	Receiver	1 Coil, 1 Layer	10.65µH	±5%	185mOhm	30 @ 200kHz	-	-	-	-40°C ~ 105°C	1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm)

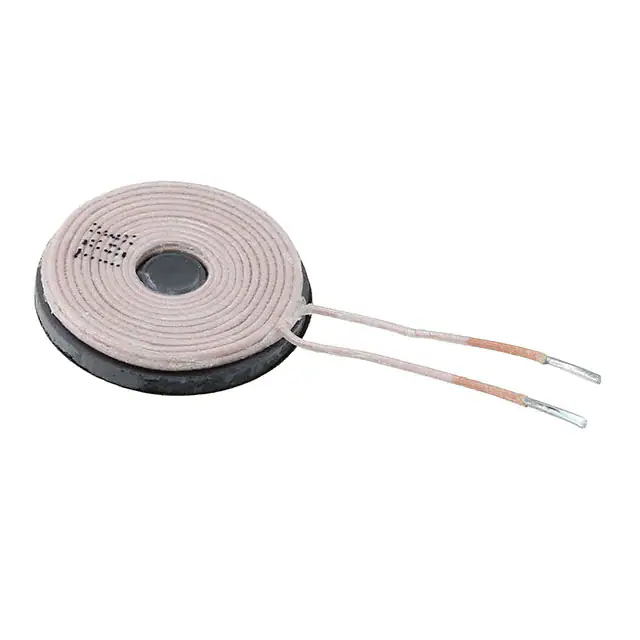

WT151512-22F2-ID TX 1 COIL 2 LYR 6.8UH TDK Corporation	2,474	-	立即询价	规格书	WT	Box	Active	Transmitter	1 Coil, 2 Layer	6.8µH	±5%	170mOhm	-	-	-	-	-	0.60" Dia x 0.09" H (15.3mm x 2.2mm)
WR111180-49F5-G RX 1 COIL 3 LYR 31.8UH TDK Corporation	151	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 3 Layer	31.8µH	±5%	1.34Ohm	-	-	-	-	-	0.43" Dia x 0.07" H (11.0mm x 1.7mm)

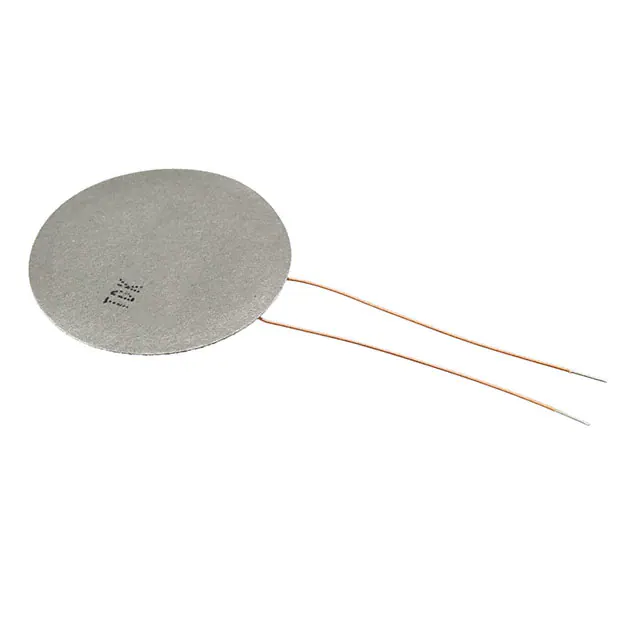

WR202010-18M8-SM RX 1 COIL 2 LYR 10.68UH TDK Corporation	290	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	10.68µH	±5%	350mOhm	-	-	-	-	-	0.79" Dia x 0.03" H (20.0mm x 0.8mm)

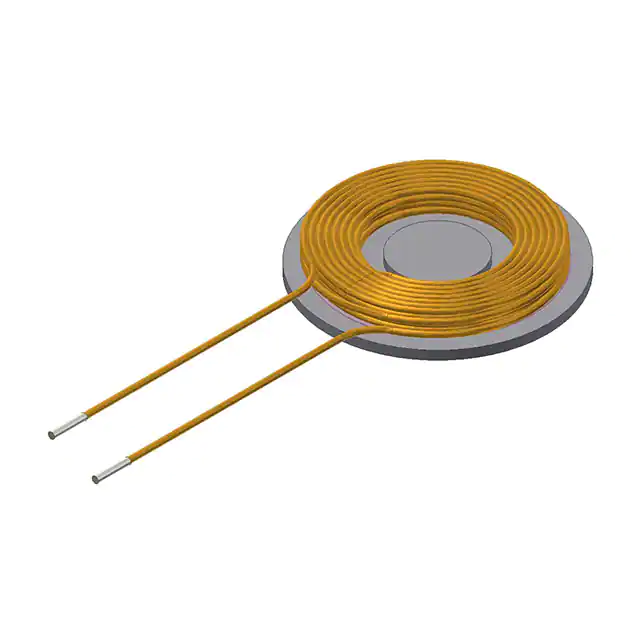

WT202080-28F2-G TX 1 COIL 4 LYR 20.9UH TDK Corporation	463	-	立即询价	规格书	WT	Tray	Active	Transmitter	1 Coil, 4 Layer	20.9µH	-	300mOhm	-	-	-	-	-	0.79" Dia x 0.11" H (20.0mm x 2.7mm)

共 267 记录«上一页12 3 4...14 下一页»
